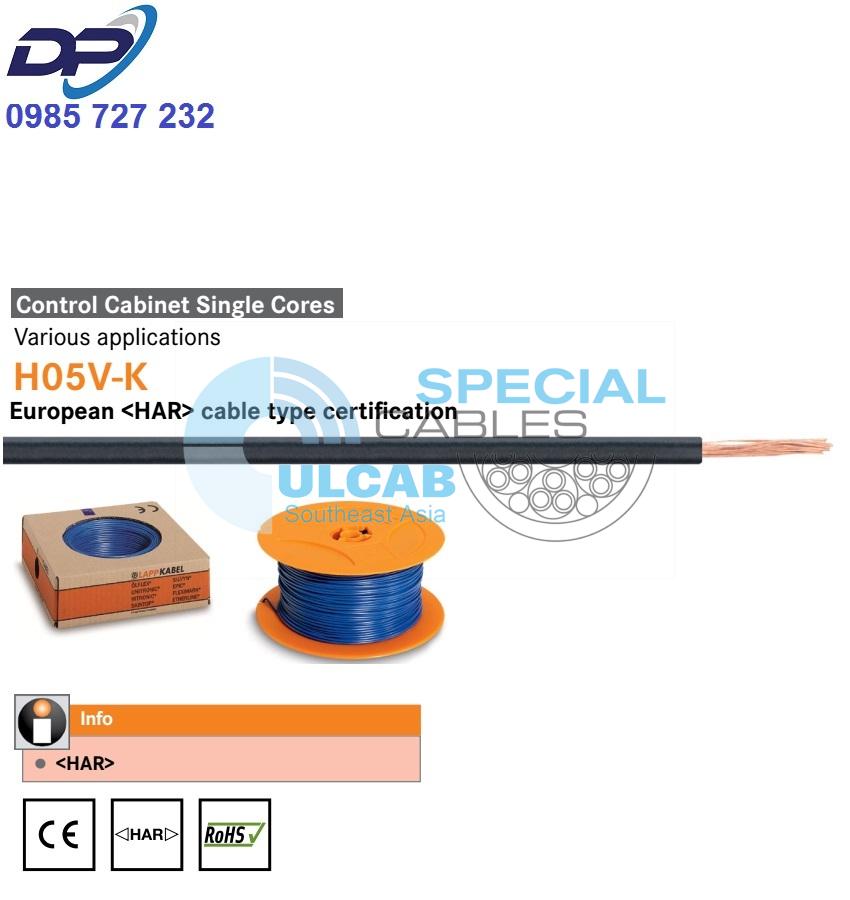

H05V-K <HAR>

European <HAR> design certification

H05V-K, HAR, power and control cable, PVC, 300/500 V, wiring of machines and control cabinets, flame-retardant, class 5/fine wire, fixed installation, ring/spool

<HAR>

Benefits

  • The <HAR> cable marking also stands for the international endorsement of national certification institutes’ testing marks and certificates, e.g. in the form of <VDE><HAR>. The <HAR> marking is of particular importance for goods transport between European countries.

Application range

  • Internal wiring of devices
  • Protected installation in and on lighting
  • Signal systems on and under plaster in tubes

Product features

  • Flame-retardant according to IEC 60332-1-2
  • Coil: d1 = 18 mm; d2 = 200mm; b = 85 mm

Norm references / approvals

  • <HAR> design certification according to EN 50525-2-31/ VDE 0285-525-2-31

Design

  • Fine-wired copper conductor made of bare copper wires in line with braided conductor class 5 according to IEC 60228 / VDE 0295
  • PVC-based core insulation

Classification

  • ETIM 5.0 Class-ID: EC000993
  • ETIM 5.0 Class-Description: Single-core cable

Conductor design

  • Fine wire according to VDE 0295 class 5 / IEC 60228 class 5

Minimum bending radius

  • According to EN 50565-1
  • 4 x outer diameter (OD) for normal use; 2 x OD for careful bending

Nominal voltage

  • U0/U: 300/500 V

Test voltage

  • 2000 V

Current load capacity

  • VDE 0298 part 4
  • EN 50565-1/ VDE 0298-565-1

Temperature range

  • Fixed installation: -40°C to +80°C
  • Flexing: +5°C to +70°C
Article number Conductor cross-section
(mm²)		 Outer diameter [mm] Core colour m/ring Copper index (kg/km) Weight (kg/km)
4510001 0.5 2.1 – 2.5 green/yellow 100 4.8 9
4510011 0.5 2.1 – 2.5 black 100 4.8 9
4510021 0.5 2.1 – 2.5 blue 100 4.8 9
4510141 0.5 2.1 – 2.5 dark blue 100 4.8 9
4510031 0.5 2.1 – 2.5 brown 100 4.8 9
4510111 0.5 2.1 – 2.5 yellow 100 4.8 9
4510121 0.5 2.1 – 2.5 green 100 4.8 9
4510071 0.5 2.1 – 2.5 violet 100 4.8 9
4510081 0.5 2.1 – 2.5 pink 100 4.8 9
4510091 0.5 2.1 – 2.5 orange 100 4.8 9
4510041 0.5 2.1 – 2.5 red 100 4.8 9
4510051 0.5 2.1 – 2.5 white 100 4.8 9
4510061 0.5 2.1 – 2.5 grey 100 4.8 9
4510161 0.5 2.1 – 2.5 ultra-marine blue 100 4.8 9
4510921 0.5 2.1 – 2.5 dark blue/white 100 4.8 9
4510002 0.75 2.2 – 2.7 green/yellow 100 7.2 12
4510012 0.75 2.2 – 2.7 black 100 7.2 12
4510022 0.75 2.2 – 2.7 blue 100 7.2 12
4510142 0.75 2.2 – 2.7 dark blue 100 7.2 12
4510032 0.75 2.2 – 2.7 brown 100 7.2 12
4510112 0.75 2.2 – 2.7 yellow 100 7.2 12
4510122 0.75 2.2 – 2.7 green 100 7.2 12
4510072 0.75 2.2 – 2.7 violet 100 7.2 12
4510082 0.75 2.2 – 2.7 pink 100 7.2 12
4510092 0.75 2.2 – 2.7 orange 100 7.2 12
4510042 0.75 2.2 – 2.7 red 100 7.2 12
4510052 0.75 2.2 – 2.7 white 100 7.2 12
4510062 0.75 2.2 – 2.7 grey 100 7.2 12
4510922 0.75 2.2 – 2.7 dark blue/white 100 7.2 12
4510162 0.75 2.2 – 2.7 ultra-marine blue 100 7.2 12
4510003 1 2.4 – 2.8 green/yellow 100 9.6 15
4510013 1 2.4 – 2.8 black 100 9.6 15
4510023 1 2.4 – 2.8 blue 100 9.6 15
4510143 1 2.4 – 2.8 dark blue 100 9.6 15
4510033 1 2.4 – 2.8 brown 100 9.6 15
4510113 1 2.4 – 2.8 yellow 100 9.6 15
4510123 1 2.4 – 2.8 green 100 9.6 15
4510073 1 2.4 – 2.8 violet 100 9.6 15
4510083 1 2.4 – 2.8 pink 100 9.6 15
4510093 1 2.4 – 2.8 orange 100 9.6 15
4510043 1 2.4 – 2.8 red 100 9.6 15
4510053 1 2.4 – 2.8 white 100 9.6 15
4510063 1 2.4 – 2.8 grey 100 9.6 15
4510163 1 2.4 – 2.8 ultra-marine blue 100 9.6 15
4510923 1 2.4 – 2.8 dark blue/white 100 9.6 15
4510001S 0.5 2.1 – 2.5 green/yellow 250 4.8 9
4510011S 0.5 2.1 – 2.5 black 250 4.8 9
4510021S 0.5 2.1 – 2.5 blue 250 4.8 9
4510141S 0.5 2.1 – 2.5 dark blue 250 4.8 9
4510031S 0.5 2.1 – 2.5 brown 250 4.8 9
4510111S 0.5 2.1 – 2.5 yellow 250 4.8 9
4510121S 0.5 2.1 – 2.5 green 250 4.8 9
4510071S 0.5 2.1 – 2.5 violet 250 4.8 9
4510091S 0.5 2.1 – 2.5 orange 250 4.8 9
4510041S 0.5 2.1 – 2.5 red 250 4.8 9
4510051S 0.5 2.1 – 2.5 white 250 4.8 9
4510061S 0.5 2.1 – 2.5 grey 250 4.8 9
4510002S 0.75 2.2 – 2.7 green/yellow 250 7.2 12
4510012S 0.75 2.2 – 2.7 black 250 7.2 12
4510022S 0.75 2.2 – 2.7 blue 250 7.2 12
4510142S 0.75 2.2 – 2.7 dark blue 250 7.2 12
4510032S 0.75 2.2 – 2.7 brown 250 7.2 12
4510112S 0.75 2.2 – 2.7 yellow 250 7.2 12
4510122S 0.75 2.2 – 2.7 green 250 7.2 12
4510072S 0.75 2.2 – 2.7 violet 250 7.2 12
4510082S 0.75 2.2 – 2.7 pink 250 7.2 12
4510092S 0.75 2.2 – 2.7 orange 250 7.2 12
4510102S 0.75 2.2 – 2.7 transparent 250 7.2 12
4510042S 0.75 2.2 – 2.7 red 250 7.2 12
4510052S 0.75 2.2 – 2.7 white 250 7.2 12
4510062S 0.75 2.2 – 2.7 grey 250 7.2 12
4510162S 0.75 2.2 – 2.7 ultra-marine blue 250 7.2 12
4510003S 1 2.4 – 2.8 green/yellow 250 9.6 15
4510013S 1 2.4 – 2.8 black 250 9.6 15
4510023S 1 2.4 – 2.8 blue 250 9.6 15
4510143S 1 2.4 – 2.8 dark blue 250 9.6 15
4510033S 1 2.4 – 2.8 brown 250 9.6 15
4510123S 1 2.4 – 2.8 green 250 9.6 15
4510073S 1 2.4 – 2.8 violet 250 9.6 15
4510093S 1 2.4 – 2.8 orange 250 9.6 15
4510103S 1 2.4 – 2.8 transparent 250 9.6 15
4510043S 1 2.4 – 2.8 red 250 9.6 15
4510053S 1 2.4 – 2.8 white 250 9.6 15
4510063S 1 2.4 – 2.8 grey 250 9.6 15
4510163S 1 2.4 – 2.8 ultra-marine blue 250 9.6 15
