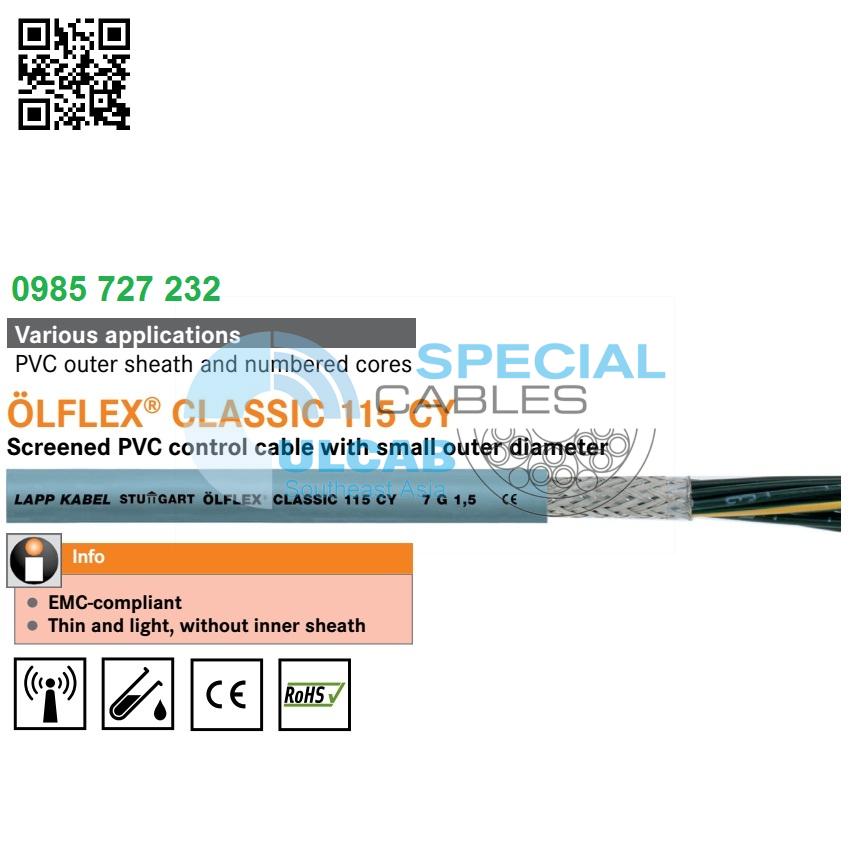

LAPP KABEL ÖLFLEX® CLASSIC 115 CY
Screened PVC control cable with small outer diameter
ÖLFLEX® CLASSIC 115 CY – PVC control cable, screened and flexible for various applications, thin and light without inner sheath, U0/U: 300/500V
- CPR: Article number choice under www.lappkabel.com/cpr
- Thin and light, without inner sheath
- EMC-compliant
Benefits
- Space-saving installation due to small cable diameters
Application range
- Measurement and control technology
- Plant engineering
Industrial machinery
Heating and air-conditioning systems - Office machines and systems for data processing
- In EMC-sensitive environments
(electromagnetic compatibility) - Suitable for torsional applications which are typical for the loop in wind turbine generators (WTG)
Product features
- Flame-retardant according IEC 60332-1-2
- Good chemical resistance, see catalogue appendix T1
- High degree of screening
low transfer impedance
(max. 250 Ω/km at 30 MHz)
Norm references / Approvals
- Based on EN 50525-2-51
Product Make-up
- Fine-wire strand made of bare copper wires
- PVC insulation LAPP P8/1
- Cores twisted in layers
- Plastic foil wrapping
- Tinned-copper braiding
- PVC outer sheath, grey (similar RAL 7001)
■ Technical data
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000104
- ETIM 5.0 Class-Description: Control cable
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000104
- ETIM 6.0 Class-Description: Control cable
Core identification code
- Black with white numbers acc. to VDE 0293-334
Conductor stranding
- Fine wire according to VDE 0295,
class 5/IEC 60228 class 5
Torsion movement in WTG
- TW-0 & TW-1, refer to Appendix T0
Minimum bending radius
- Occasional flexing: 20 x outer diameter
- Fixed installation: 6 x outer diameter
Nominal voltage
- U0/U: 300/500 V
Test voltage
- Core/core: 4000 V
- Core/screen: 2000 V
Protective conductor
- G = with GN-YE protective conductor
- X = without protective conductor
Temperature range
- Occasional flexing: -5°C to +70°C
- Fixed installation: -40°C to +80°C
| Article number |
Number of cores and mm² per conductor |
Outer diameter (mm) |
Copper index (kg/km) |
Weight (kg/km) |
| ÖLFLEX® CLASSIC 115 CY | ||||
| 1136752 | 2 X0.5 | 5,8 | 36 | 45 |
| 1136003 | 3 G0.5 | 6,1 | 43 | 59 |
| 1136753 | 3 X0.5 | 6,1 | 43 | 59 |
| 1136004 | 4 G0.5 | 6,5 | 49 | 71 |
| 1136754 | 4 X0.5 | 6,5 | 49 | 71 |
| 1136005 | 5 G0.5 | 7 | 57 | 86 |
| 1136755 | 5 X0.5 | 7 | 57 | 86 |
| 1136007 | 7 G0.5 | 7,5 | 69 | 105 |
| 1136757 | 7 X0.5 | 7,5 | 69 | 105 |
| 1136012 | 12 G0.5 | 9,9 | 104 | 200 |
| 1136762 | 12 X0.5 | 9,9 | 104 | 200 |
| 1136018 | 18 G0.5 | 11,5 | 141 | 275 |
| 1136768 | 18 X0.5 | 11,5 | 141 | 275 |
| 1136025 | 25 G0.5 | 13,4 | 211 | 350 |
| 1136775 | 25 X0.5 | 13,4 | 211 | 350 |
| 1136802 | 2 X0.75 | 6,2 | 43 | 56 |
| 1136103 | 3 G0.75 | 6,5 | 52 | 70 |
| 1136803 | 3 X0.75 | 6,5 | 52 | 70 |
| 1136104 | 4 G0.75 | 7 | 61 | 95 |
| 1136804 | 4 X0.75 | 7 | 61 | 95 |
| 1136105 | 5 G0.75 | 7,7 | 72 | 108 |
| 1136805 | 5 X0.75 | 7,7 | 72 | 108 |
| 1136107 | 7 G0.75 | 8,3 | 89 | 127 |
| 1136807 | 7 X0.75 | 8,3 | 89 | 127 |
| 1136112 | 12 G0.75 | 10,9 | 138 | 232 |
| 1136118 | 18 G0.75 | 12,7 | 211 | 315 |
| 1136125 | 25 G0.75 | 14,8 | 280 | 435 |
| 1136825 | 25 X0.75 | 14,8 | 280 | 435 |
| 1136852 | 2 X1.0 | 6,5 | 51 | 71 |
| 1136203 | 3 G1.0 | 6,8 | 62 | 86 |
| 1136853 | 3 X1.0 | 6,8 | 62 | 86 |
| 1136204 | 4 G1.0 | 7,3 | 74 | 98 |
| 1136854 | 4 X1.0 | 7,3 | 74 | 98 |
| 1136205 | 5 G1.0 | 8,1 | 88 | 121 |
| 1136855 | 5 X1.0 | 8,1 | 88 | 121 |
| 1136207 | 7 G1.0 | 8,8 | 112 | 147 |
| 1136857 | 7 X1.0 | 8,8 | 112 | 147 |
| 1136212 | 12 G1.0 | 11,5 | 185 | 285 |
| 1136218 | 18 G1.0 | 13,9 | 268 | 395 |
| 1136225 | 25 G1.0 | 15,9 | 354 | 486 |
| 1136902 | 2 X1.5 | 7,1 | 65 | 86 |
| 1136303 | 3 G1.5 | 7,5 | 82 | 112 |
| 1136903 | 3 X1.5 | 7,5 | 82 | 112 |
| 1136304 | 4 G1.5 | 8,2 | 100 | 135 |
| 1136904 | 4 X1.5 | 8,2 | 100 | 135 |
| 1136305 | 5 G1.5 | 8,9 | 119 | 148 |
| 1136905 | 5 X1.5 | 8,9 | 119 | 148 |
| 1136307 | 7 G1.5 | 9,9 | 154 | 192 |
| 1136907 | 7 X1.5 | 9,9 | 154 | 192 |
| 1136312 | 12 G1.5 | 13 | 268 | 365 |
| 1136318 | 18 G1.5 | 15,6 | 373 | 520 |
| 1136325 | 25 G1.5 | 17,9 | 530 | 734 |
| 1136334 | 34 G1.5 | 20,8 | 683 | 944 |
| 1136403 | 3 G2.5 | 8,9 | 118 | 151 |
| 1136404 | 4 G2.5 | 9,9 | 147 | 188 |
| 1136405 | 5 G2.5 | 11 | 176 | 270 |
| 1136407 | 7 G2.5 | 11,9 | 253 | 340 |
| 1136412 | 12 G2.5 | 16 | 355 | 540 |
| 1136418 | 18 G2.5 | 19 | 569 | 782 |
| 1136425 | 25 G2.5 | 22,2 | 827 | 1358 |
| 1136504 | 4 G4 | 11,6 | 248 | 305 |
| 1136507 | 7 G4 | 14,4 | 355 | 500 |
| 1136604 | 4 G6 | 14,2 | 343 | 440 |
| 1136607 | 7 G6 | 17 | 505 | 672 |
| 1136614 | 4 G10 | 17,2 | 535 | 680 |
| 1136615 | 5 G10 | 19,5 | 592 | 824 |
| 1136624 | 4 G16 | 20,2 | 800 | 1050 |
| 1136625 | 5 G16 | 22,6 | 895 | 1285 |
| 1136634 | 4 G25 | 25,1 | 1,075.0 | 1413 |
| 1136635 | 5 G25 | 28 | 1,400.0 | 1976 |
| 1136638 | 4 G35 | 28 | 1,576.0 | 2070 |
