Data communication systems
Low frequency data transmission cables
Metal foil screened pairs

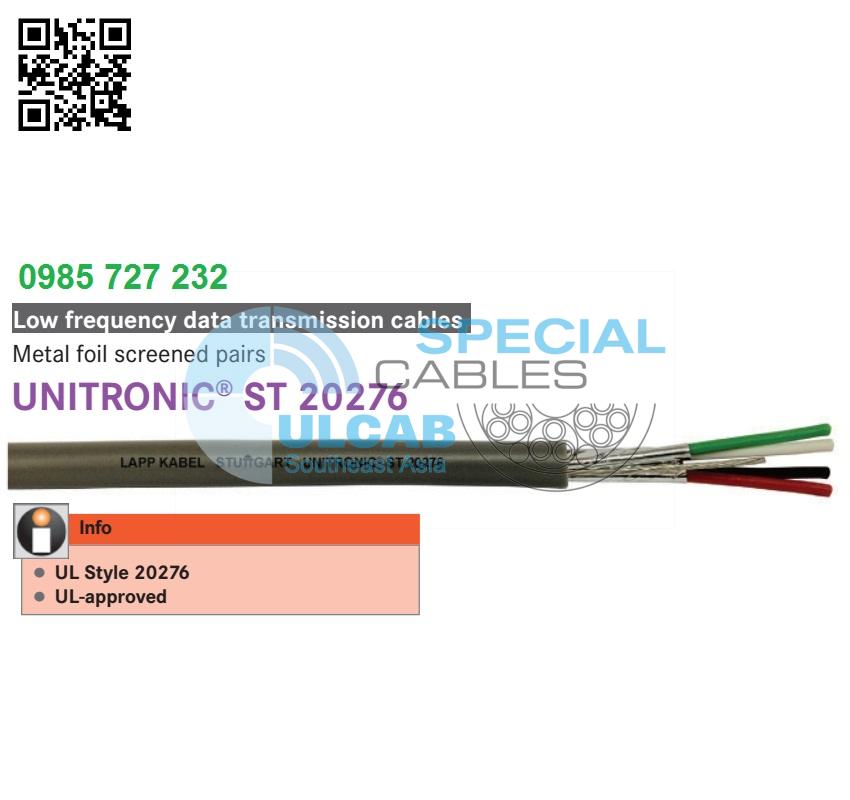

LAPPKABEL UNITRONIC® ST 20276

• product information ( PDF )

■ Application range

• Suitable for wiring data systems with high transmission rates

• Especially designed for use as control and instrumentation cables

• For static laying in dry and damp environment

■ Product features

• Pair screening, offers optimum protection against external interference at medium and high frequencies

• Twisted cores and individual pair shielding ensures high Near End Cross Talk attenuation

• Flame retardant in acc. to IEC 60332-1-2

■ Approvals (Norm references)

■ Design

• Multi-wire strands of tinned copper wires

• PE core insulation

• Cores twisted together

• Individual pair aluminium foil screening

• Tinned copper drain wire

• PVC outer sheath

• Colour: chrome grey, RAL 7005

Technical data

Core identification code
black/red, and white/green
Mutual capacitance
C/C: approx. 115 pF/m
C/S: approx. 203 pF/m
Peak operating voltage
30 V
Specific insulation resistance
> 2 GOhm x km
Inductivity
approx. 0.55 mH/km
Minimum bending radius
10 x cable diameter
Test voltage
1000 V
Temperature range
-20°C to +60°C
Characteristic impedance
45 Ohm
