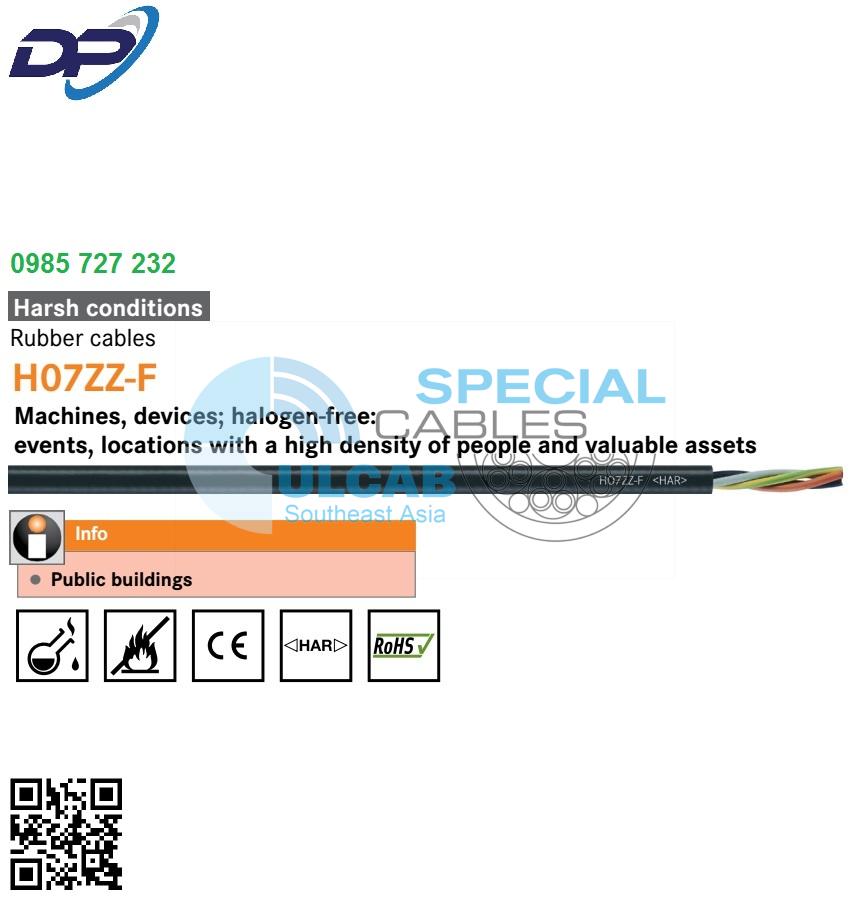

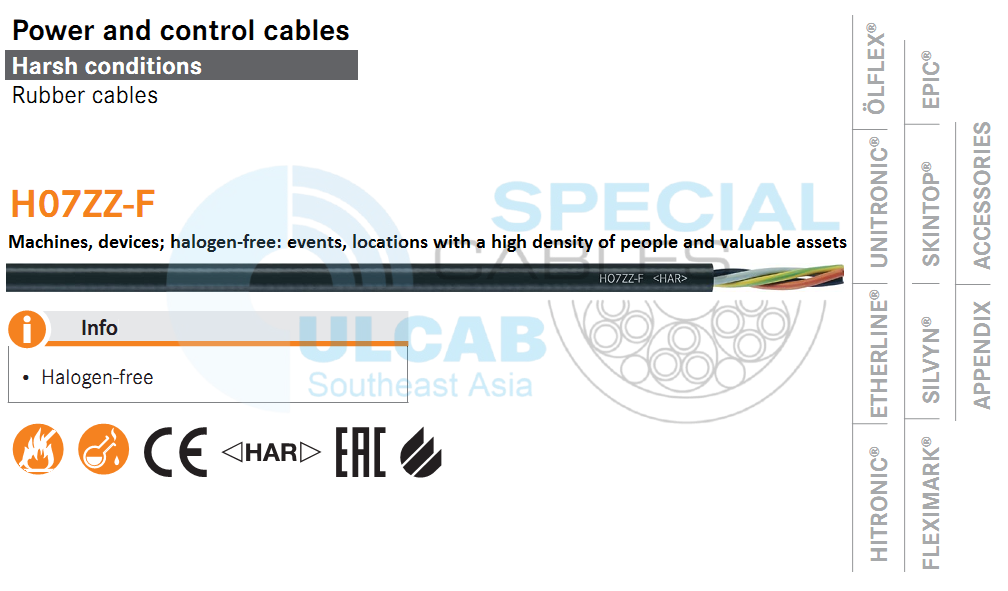

H07ZZ-F
Machines, devices; halogen-free: Events, locations with a high density of people and valuable assets
H07ZZ-F, HAR, power and control cable, rubber, 450/750V, halogen-free, flame-retardant IEC 60332-3-24/EN 50266-2-4 bundle fire test, low smoke LS0H EN 61034-2
Public buildings
Benefits
- Broad usages due to halogen-free materials
- According to VDE 0100-711, cables with low smoke emission are required in buildings for exhibitions, shows and stands without a fire alarm system
- Type-compliant versions <HAR> certified with the “<HAR>” testing and certification mark for accelerated granting of approvals if final application of cable is within the European CENELEC area
Application range
- Stage technology
- For mobile equipment and machines
- According to EN 50565-2: Use in dry, damp or wet rooms as well as for fixed installation e.g. on plaster
- For buildings or industrial plants with a high density of people or valuable assets
Product features
- Low amount of corrosive gases in the event of fire
- Flame-retardant according to IEC 60332-1-2 and bundle flame test according to IEC 60332-3-24
- Low smoke emission/low smoke density in the event of fire according to IEC 61034
- Ozone-resistant according to EN 50363-6, EN 60811-403, EN 50396-8.1.3
Norm references / approvals
- <HAR> H07ZZ-F design certification according to EN 50525-3-21
Design
- Conductor made of bare copper wires
- Core insulation: Halogen-free rubber compound
- Outer sheath: Halogen-free rubber compound
■ Technical data
Classification
- ETIM 5.0 Class-ID: EC001578
- ETIM 5.0 Class-Description: Flexible cable
Core identification code
- Up to 5 cores: according to VDE 0293-308 (appendix T9)
- From 6 cores: black with white numbers
Conductor design
- Fine wire according to VDE 0295 class 5 / IEC 60228 class 5
Minimum bending radius
- 4 to 8 x outer diameter (EN 50565-1)
Nominal voltage
- U0/U: 450/750 V
Fixed, protected installation:
U0/U: 600/1000 V
Test voltage
- 2500 V
Protective conductor
- G = with GN-YE protective conductor
- X = without protective conductor
Current load capacity
- VDE 0298 part 4
- EN 50565-1/ VDE 0298-565-1
Temperature range
- Fixed/flexible: -40°C/-5°C to +90°C
| Article number | Number of cores and mm² per conductor | Outer diameter (mm) | Copper index (kg/km) | Weight (kg/km) |
| 1600810 | 3 G 1.5 | 9.2 – 11.9 | 43.2 | 125 |
| 1600811 | 4 G 1.5 | 10.2 – 13.1 | 57.6 | 155 |
| 1600812 | 5 G 1.5 | 11.2 – 14.4 | 72.0 | 190 |
| 1600815 | 14 G 1.5 | 18.8 – 21.3 | 201.6 | 570 |
| 1600816 | 18 G 1.5 | 20.7 – 26.3 | 259.2 | 750 |
| 1600820 | 3 G 2.5 | 10.9 – 14.0 | 72.0 | 185 |
| 1600821 | 4 G 2.5 | 12.1 – 15.5 | 96.0 | 235 |
| 1600822 | 5 G 2.5 | 13.3 – 17.0 | 120.0 | 290 |
| 1600823 | 7 G 2.5 | 18.2 – 20.7 | 168.0 | 520 |
| 1600825 | 14 G 2.5 | 22.2 – 25.0 | 336.0 | 860 |
| 1600836 | 4 G 4 | 14.0 – 17.9 | 153.6 | 325 |
| 1600837 | 5 G 4 | 15.6 – 19.9 | 192.0 | 410 |
| 1600841 | 4 G 6 | 15.7 – 20.0 | 230.4 | 440 |
| 1600842 | 5 G 6 | 17.5 – 22.2 | 288.0 | 550 |
| 1600844 | 4 G 10 | 20.9 – 26.5 | 384.0 | 770 |
| 1600845 | 5 G 10 | 22.9 – 29.1 | 480.0 | 950 |
| 1600847 | 4 G 16 | 23.8 – 30.1 | 614.4 | 1070 |
| 1600849 | 4 G 25 | 28.9 – 36.6 | 960.0 | 1570 |
| 1600851 | 4 G 35 | 32.5 – 41.1 | 1,344.0 | 2040 |
| 1600852 | 4 G 50 | 37.7 – 47.5 | 1,920.0 | 2810 |
