H01N2-D
Normative arc-welding cable

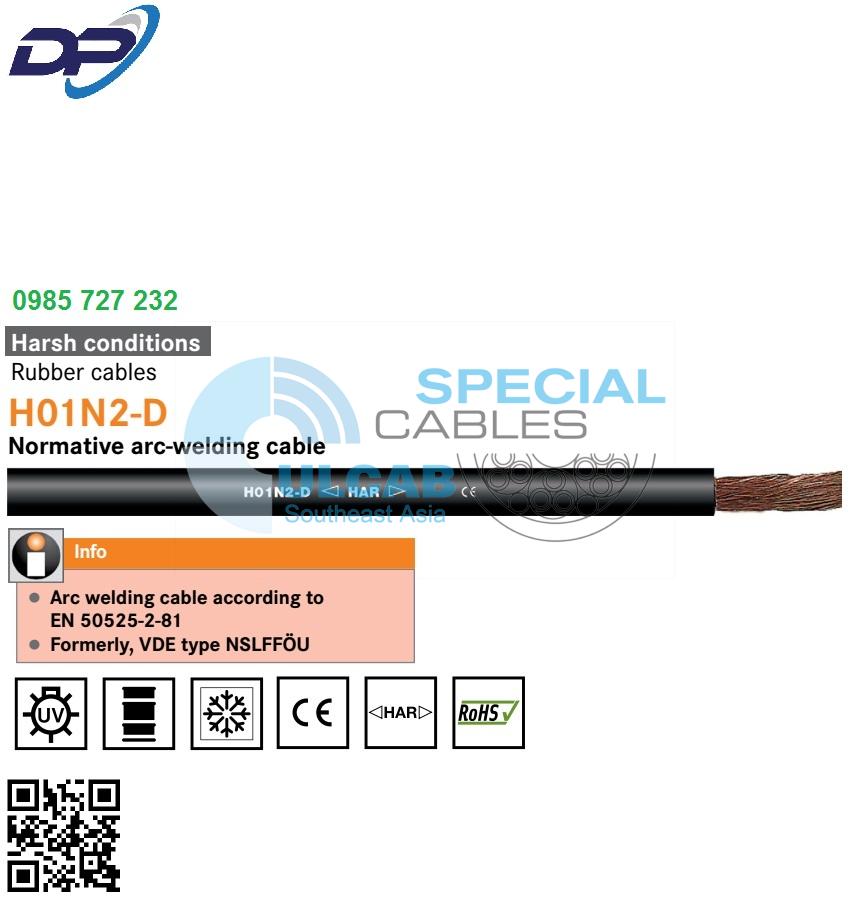

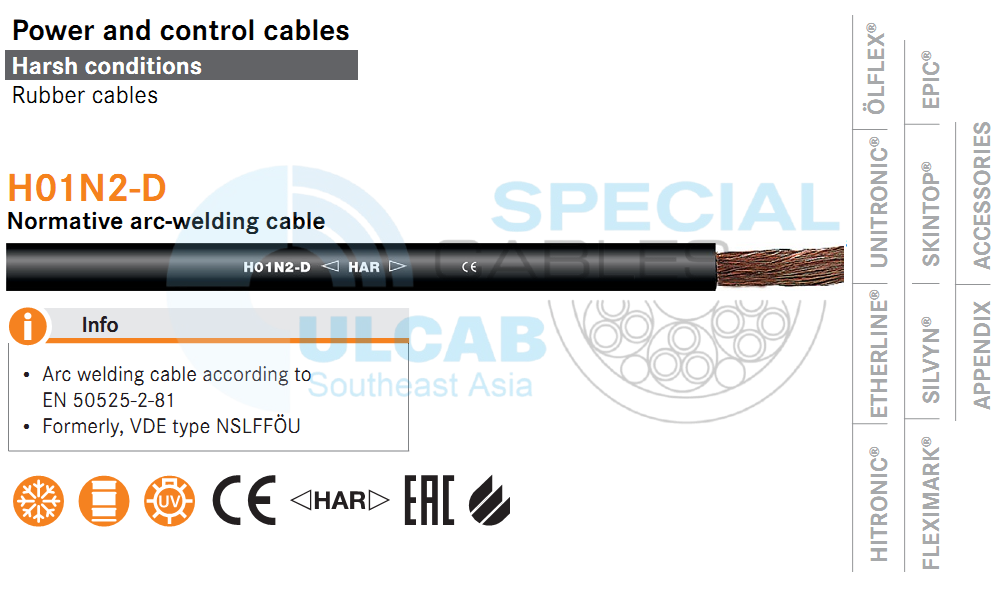

H01N2-D, HAR-certified, power and control cable made of rubber for arc welding, NSLFFÖU-based, 100VAC, 150VDC, HD 22.6, EN 50525-2-81, IEC 60245
- Arc-welding cable according to EN 50525-2-81
- Formerly, VDE type NSLFFÖU
Benefits
- Type-compliant versions <HAR> certified with the “<HAR>” testing and certification mark for accelerated granting of approvals if final application of cable is within the European CENELEC area
Application range
- Only use the welding cable under consideration of EN 50565-2
- For use on hand-held electrode holders up to 100 V
- Can be used in dry or damp rooms
- For transmitting high currents from the electric welding device to the welding tool
Product features
- Flame-retardant according to IEC 60332-1-2
Norm references / approvals
- <HAR> H01N2-D design certification according to EN 50525-2-81
Design
- Bare copper stranded wire according to HAR standard
- Strand structure approximately corresponds to class 6 up to 95 mm², and from 120 mm² approximately to class 5 according to VDE 0295
- Separating layer made of plastic film or paper
- Outer sheath made of rubber compound type EM5
■ Technical data
Classification
- ETIM 5.0 Class-ID: EC000824
- ETIM 5.0 Class-Description: Welding cable
Conductor design
- H01N2-D according to EN 50525-2-81
Minimum bending radius
- Flexible use: 12 x outer diameter
Nominal voltage
- U0/U: 100/100 V
Test voltage
- 1000 V
Current load capacity
- According to VDE 0298 part 4, table 16
- EN 50565-1/ VDE 0298-565-1
Temperature range
- Flexible use: -25°C to +85°C
| Article number | Conductor cross-section (mm²) | Outer diameter (mm) | Copper index (kg/km) | Weight (kg/km) |
| 2310026 | 10 | 7.7 – 9.7 | 96.0 | 171 |
| 2210700 | 16 | 8.8 – 11.0 | 153.6 | 198 |
| 2210701 | 25 | 10.1 – 12.7 | 240.0 | 305 |
| 2210702 | 35 | 11.4 – 14.2 | 336.0 | 415 |
| 2210703 | 50 | 13.2 – 16.5 | 480.0 | 555 |
| 2210704 | 70 | 15.3 – 19.2 | 672.0 | 765 |
| 2210705 | 95 | 17.1 – 21.4 | 912.0 | 1010 |
| 2210706 | 120 | 19.2 – 24.0 | 1,152.0 | 1262 |
| 2210707 | 150 | 21.2 – 26.4 | 1,440.0 | 1610 |
| 2210708 | 240 | 25.0 – 29.5 | 2,304.0 | 2520 |
■ Accessories
▯ KS 20 cable shears
