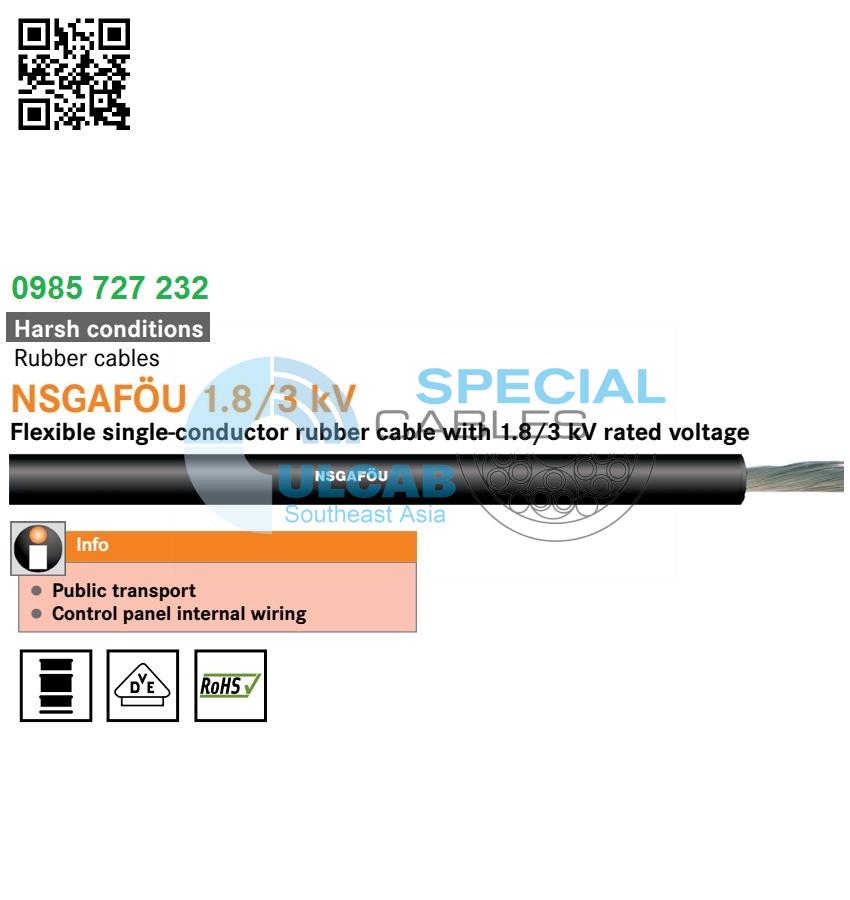

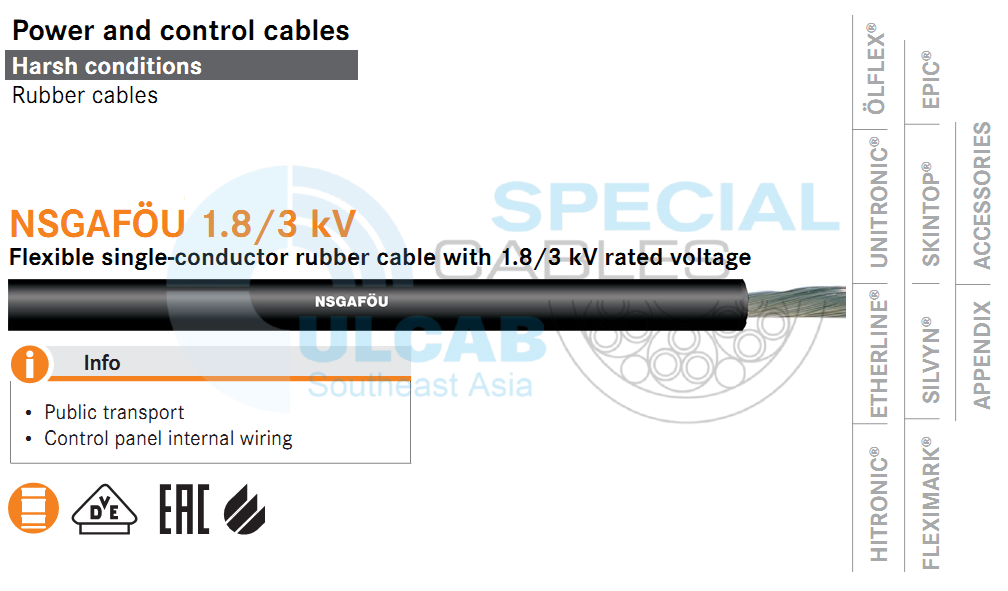

NSGAFÖU 1.8/3 kV
Flexible single-conductor rubber cable with 1.8/3 kV nominal voltage
NSGAFÖU 1.8/3 kV AC, VDE-certified, power cable, single core rubber cable with outer coating, class 5, oil-resistant
- Public transport
- Control cabinet internal wiring
Benefits
- Arrangements made of single core cables NSGAFÖU in accordance with VDE 0250 part 602 with nominal voltage of at least U0/U: 1.8/3 kV can be used for short circuit-proof and short-to-ground-proof installation up to 1000 V in accordance with VDE 0100 part 520 and VDE 0298 part 3
Application range
- Wiring machines, devices, and control cabinets
- Railway vehicles, buses;
short-circuit-proof up to 1000 V in switching stations and distributors - No direct burial, except through fire separations such as sand cups
- In ducts and closed installation channels
- Bundled or for connection of movable parts
Product features
- The outer diameters stated in the article table are maximum values
- Flame-retardant according to IEC 60332-1-2
- Oil-resistant according to EN 60811-404
- Normative nominal voltage classes U0/U 0.6/1 kVac and 3.6/6 kVac available on request
Norm references / approvals
- <VDE> NSGAFÖU 1.8/3 kV design certification according to VDE 0250-602
Design
- Fine-wire strand made of tin-plated copper wires
- Core insulation: Rubber compound, type 3GI3
- Outer coating: Rubber compound, type 5GM3
- No outer sheath
■ Technical data
Classification
- ETIM 5.0 Class-ID: EC000993
- ETIM 5.0 Class-Description: Single-core cable
Conductor design
- Fine wire according to VDE 0295 class 5 / IEC 60228 class 5
Minimum bending radius
- Flexible use: 10 x outer diameter
- Fixed installation: 6 x outer diameter
Nominal voltage
- U0/U: 1.8/3 kV
Test voltage
- 6000 V
Current load capacity
- According to VDE 0298 part 4, table 15
Temperature range
- Flexible use: -25°C to +90°C
- Fixed installation: -40°C to +90°C
| Article number | Conductor cross-section (mm²) | Outer diameter (mm) | Copper index (kg/km) | Weight (kg/km) |
| 1600300 | 1.5 | 7.0 | 14.4 | 60 |
| 1600301 | 2.5 | 7.5 | 24.0 | 70 |
| 1600302 | 4 | 9.0 | 38.4 | 90 |
| 1600303 | 6 | 9.5 | 57.6 | 120 |
| 1600304 | 10 | 11.0 | 96.0 | 180 |
| 1600305 | 16 | 13.0 | 153.6 | 250 |
| 1600306 | 25 | 15.0 | 240.0 | 390 |
| 1600307 | 35 | 16.5 | 336.0 | 470 |
| 1600308 | 50 | 18.0 | 480.0 | 625 |
| 1600309 | 70 | 20.5 | 672.0 | 880 |
| 1600310 | 95 | 24.0 | 912.0 | 1190 |
| 1600311 | 120 | 26.0 | 1,152.0 | 1430 |
| 1600312 | 150 | 28.0 | 1,440.0 | 1750 |
| 1600313 | 185 | 31.0 | 1,776.0 | 2160 |
| 1600314 | 240 | 34.5 | 2,304.0 | 2640 |
| 3026826 | 300 | 38.0 | 2,880.0 | 3545 |
■ Accessories
▯ V 1311 pressing pliers, hydraulic
▯ KS 20 cable shears
