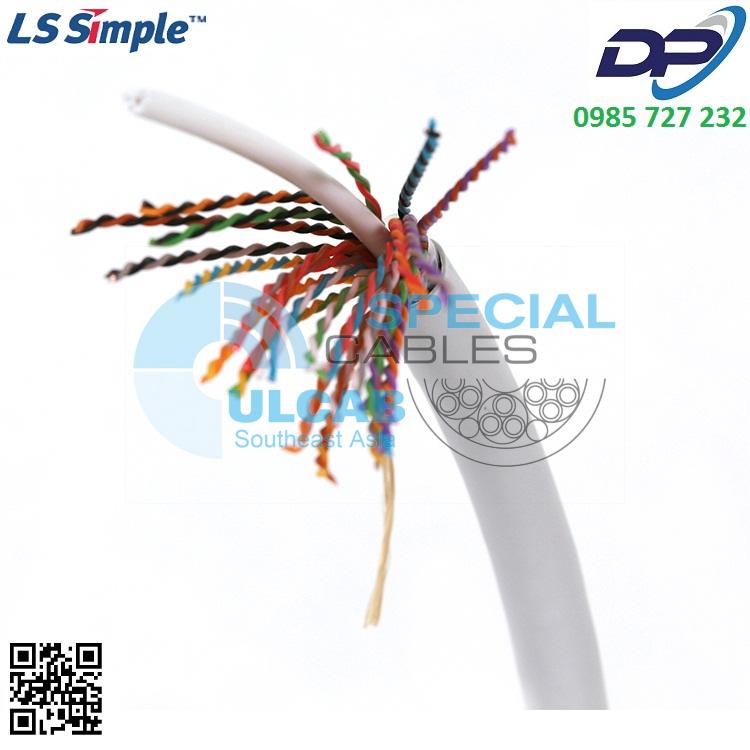

Cáp LS CAT5E U/UTP 25Pair LSZH ( UTP-E-C5G-E1ZN-X 0.5X025P/GY )
- CATEGORY 5E CABLE
U/UTP CAT.5E 25P
- DESCRIPTION
- · Cable diameter : 0.5inch (12.7mm)
· UL Listed & Verified
· Supports Fast Ehternet, Gigabit Ethernet, 155 Mb/s, Multimedia
· All accepted design for global commercial network installation
· Simplified structured cabling solution preserving long-term network investment
· Comply with ANSI/TIA-568-C.2
· RoHS compliant
· Qualifies for the LS 25-year extended Product Warranty and Applications Assurance when included as part of a registered LS Category 5e Channel
- PART LISTS
-
Description Part Number Category 5E U/UTP 25Pair CMX UTP-E-C5G-E1VN-X 0.5X025P/GY Category 5E U/UTP 25Pair CM UTP-E-C5G-E1VN-M 0.5X025P/GY Category 5E U/UTP 25Pair CMR UTP-E-C5G-E1VN-R 0.5X025P/GY Category 5E U/UTP 25Pair LSZH UTP-E-C5G-E1ZN-X 0.5X025P/GY
- APPLICATION
- · Backbone Cabling
· 4/16Mbps Token Ring (IEEE 802.5)
· 10/100/1000 BASE-T (IEEE 802.3)
· 155Mbps ATM
· 100Mbps TP-PMD
· ISDN, ADSL
- TECHNICAL DETAILS
-
Characteristics units Cat.5E DC Resistance Ω/100m ≤ 9.38 DC Resistance Unbalance % ≤ 5.00 Mutual Capacitance nF/100m ≤ 5.60 Capacitance Unbalance(Pair to Ground) pF/100m ≤ 330 Insulation Resistance MΩ-100m ≥ 500 Dielectric Strength DC kV/sec 2.5 / 2 Impedance(Characteristic mean) Ω 100 ± 15% (1 ≤ f ≤ 100MHz) Propagation Delay Skew ns/100m ≤ 45
DATA SHEET : Download
