Data communication systems
Low frequency data transmission cables
Characteristic impedance: 100 – 120 ohm

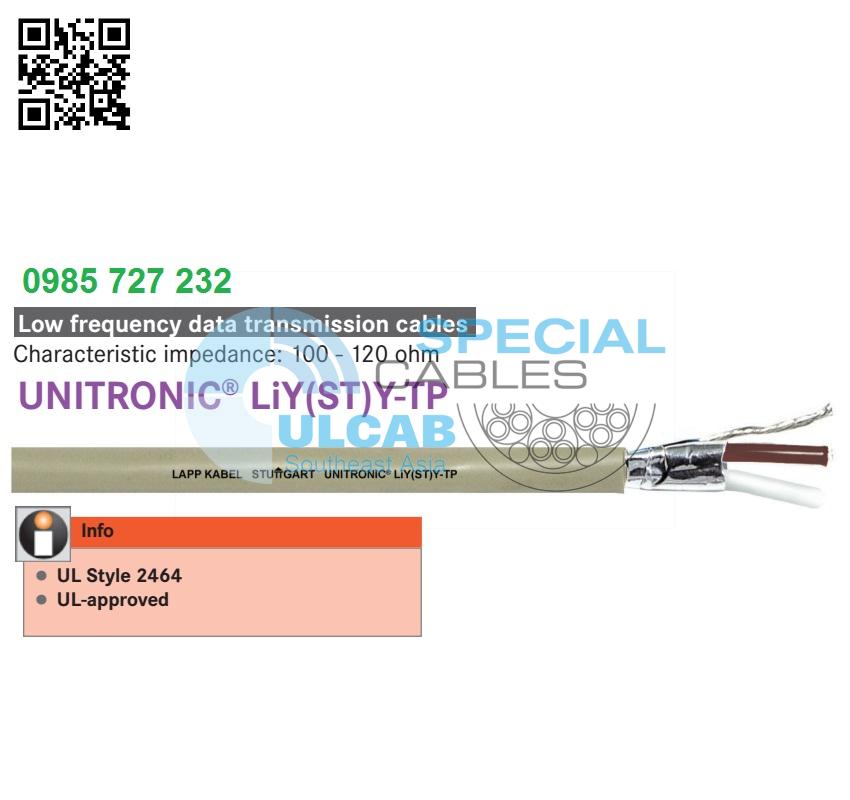

LAPPKABEL UNITRONIC® LiY(ST)Y-TP
Info
|
■ Application range
- Suitable for use in data transmission, audio and control measurement
- For use in dry and damp environment
■ Product features
- 100% screen coverage, offers optimum protection against external interference at medium and high frequencies
- UL-approved
- Flame retardant in acc. to IEC 60332-1-2
■ Approvals (Norm references)
■ Design
- Multi-wire strands of tinned annealed copper
- Semi-Rigid PVC core insulation
- Twisted pair
- Aluminium foil screening
- Tinned copper drain wire
- PVC outer sheath, pebble grey RAL 7032
■ Technical data
Core identification code
acc. to DIN 47100 (Twisted Pairs)
Pair 1: white / brown
Pair 2: green / yellow
Pair 3: grey / pink
Pair 4: blue / red
Pair 5: black / violet
Peak operating voltage
300 V (not for power applications)
Minimum bending radius
10 x cable diameter
Test voltage
1500 V
Temperature range
-30°C to +80°C
| Article number | Number of pairs and AWG per conductor | Outer diameter (mm) | Copper index (kg/km) | Weight (kg/km) |
| 3802856 | 1 x 2 x 24AWG | 4.0 | 6.4 | 21.4 |
| 3803952 | 2 x 2 x 24AWG | 5.1 | 10.5 | 33.9 |
| 3803953 | 3 x 2 x 24AWG | 5.8 | 14.7 | 42.1 |
| 3803954 | 4 x 2 x 24AWG | 6.4 | 18.9 | 51 |
| 3803955 | 5 x 2 x 24AWG | 6.9 | 23.1 | 59.8 |
| 3802855 | 1 x 2 x 22AWG | 4.6 | 9.8 | 31.5 |
| 3803960 | 2 x 2 x 22AWG | 5.6 | 16.3 | 42.8 |
| 3803961 | 3 x 2 x 22AWG | 6.4 | 22.8 | 54.3 |
| 3803962 | 4 x 2 x 22 AWG | 7.1 | 29.4 | 66.4 |
| 3803963 | 5 x 2 x 22 AWG | 7.7 | 35.9 | 79 |
| 3802854 | 1 x 2 x 20AWG | 5.1 | 15.3 | 41.3 |
| 3803990 | 2 x 2 x 20AWG | 6.3 | 25.5 | 58.7 |
| 3803991 | 3 x 2 x 20AWG | 7.3 | 35.7 | 73.5 |
| 3803992 | 4 x 2 x 20AWG | 8.1 | 45.9 | 90.4 |
| 3803993 | 5 x 2 x 20 AWG | 8.8 | 56.1 | 108.5 |
| 3803970 | 1 x 2 x 18AWG | 5.6 | 23.4 | 48.7 |
| 3803971 | 2 x 2 x 18AWG | 7.7 | 39.0 | 78.5 |
| 3803972 | 3 x 2 x 18AWG | 8.4 | 54.6 | 99.2 |
| 3803973 | 4 x 2 x 18AWG | 9.4 | 70.2 | 123.1 |
| 3803974 | 5 x 2 x 18AWG | 10.2 | 85.8 | 147.7 |
| 3803980 | 1 x 2 x 16AWG | 6.3 | 38.0 | 68.1 |
| 3803981 | 2 x 2 x 16AWG | 8.2 | 63.4 | 111 |
| 3803982 | 3 x 2 x 16AWG | 9.6 | 88.7 | 141.2 |
| 3803983 | 4 x 2 x 16AWG | 10.8 | 114.1 | 176.6 |
| 3803984 | 5 x 2 x 16AWG | 11.8 | 139.4 | 213.3 |
