Cáp LAPP KABEL ( 2170320 ) UNITRONIC® BUS L2/FIP FC | 1x2x0.64mm

Data communication systems
Cables for bus systems PROFIBUS-DP/FMS/FIP
Characteristic impedance: 135 – 165 ohm

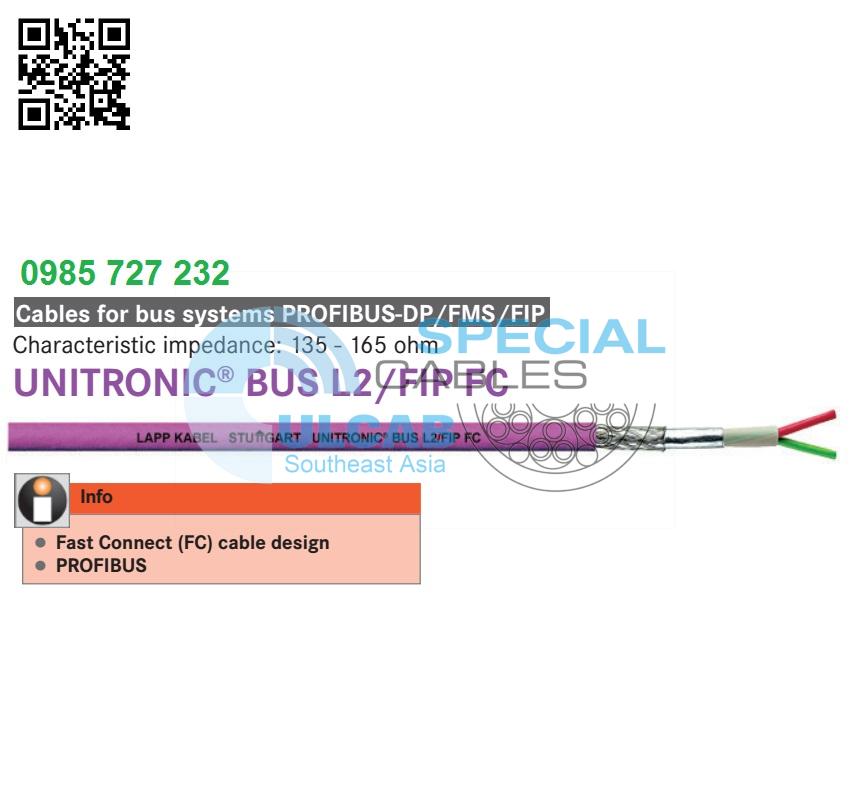

LAPPKABEL UNITRONIC® BUS L2/FIP FC

• product information ( PDF )

■ Application range

• For stationary installation for Bus Systems 150 Ohm impedance

• Dry and damp indoors

■ Product features

• This bus cable can be used for PROFIBUSDP as well as for PROFIBUS-FMS and FIP

• Based on the bit rates listed, in accordance with PNO specifications the following maxi mum cable lengths for a bus segment apply
  (cable type A, PROFIBUS-DP):
  93.75 kbit/s = 1200 m
  187.5 kbit/s = 1000 m
  500 kbit/s = 400 m
  1.5 Mbit/s = 200 m
  12.0 Mbit/s = 100 m

• Flame retardant in acc. to IEC 60332-1-2

■ Approvals (Norm references)

•
• In accordance with DIN 19245 and EN 50170, e.g. for SIEMENS SIMATIC NET, also suitable for FIP (Factory Instrumentation Protocol)

■ Design

• Single wire of bare copper

• Foam PE core insulation Cores twisted together

• Plastic foil wrapping

• Aluminium-mylar tape screen + tinned copper wire braiding

• PVC outer sheath, violet RAL 4001

■ Technical data

Core identification code
red, green
Mutual capacitance
(800 Hz): max. 30 nF/km
Peak operating voltage
(not for power applications) 250 V
Conductor resistance
(loop): max. 115 ohm/km
Minimum bending radius
Fixed installation: 10 x outer diameter
Test voltage
1500 V
Temperature range
-40°C – +80°C
Characteristic impedance
150 ± 15 Ohm
