Cáp Profibus LEONI/ GERMANY 1 x 2 x ø 0.64 mm ( 22AWG ) (SHIELDED) (UL) CMG 75°C 600V FT4 SUN RES, Violet | Chính Hãng – Giá Tốt Nhất
- Hãng sản xuất: LEONI KABEL
- Xuất xứ: GERMANY

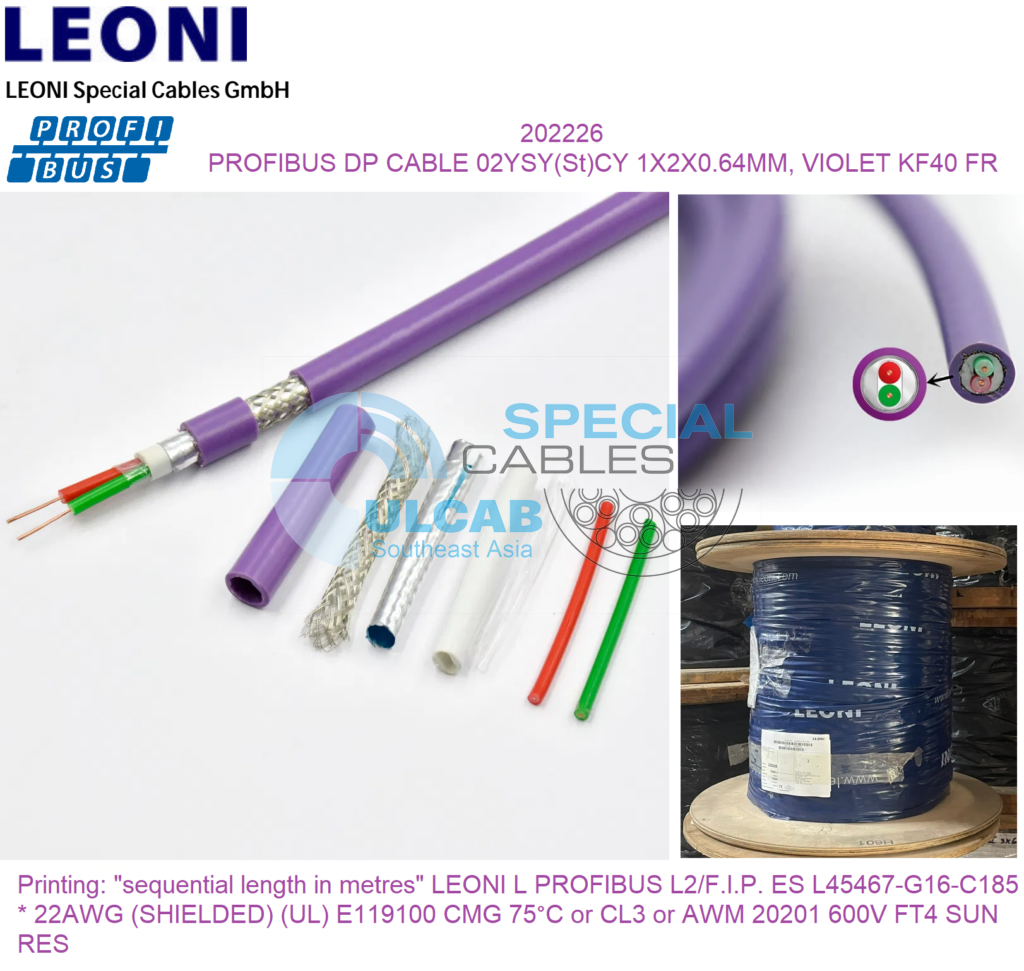

Cáp profibus được thiết kế gồm 2 lõi cáp đồng solid ø 0.65 mm, gồm 3 lớp bảo vệ: lớp lưới bện chống nhiễu đồng mạ thiếc đường kính 0,15 mm Độ phủ khoảng 55%, lớp lá nhôm chồng lên nhau độ phủ 100% giúp bảo vệ và lớp cách điện: PE chống nước màu đỏ và xanh lá cây xoắn thành một cặp, Vỏ bọc: Polyvinylchloride (PVC) màu VIOLET Độ dày 0,9 mm, đường kính ngoài cáp ø (8.0 ±0.4) mm
LEONI Special Cables GmbH
Technisches Datenblatt – Technical Data Sheet –Technisches Datenblatt – Technical Data Sheet –Technisches Datenblatt – Technical Data Sheet
Design
Wire
Bare copper wire ø 0.65 mm
Insulation of foamed Polyethylene (PE) with skin ø 2.55 mm
Core:
2 wires RD and GN twisted to a pair Plastic tape, overlapped
Inner-Jacket Polyvinylchloride (PVC) ø 5.4 mm
Alulaminate foil overlapped, applied longitudinally Coverage 100%
Shield braiding of tinned copper wires 0.15 mm dia Coverage about 55% ø 6.2 mm
Jacket:
Polyvinylchloride (PVC) VT
Wall thickness about 0.9 mm ø (8.0 ±0.4) mm
Printing: “sequential length in metres” LEONI L PROFIBUS L2/F.I.P. ES L45467-G16-C185 * 22AWG (SHIELDED) (UL) E119100 CMG 75°C or CL3 or AWM 20201 600V FT4 SUN RES
Textintervals about 1000 mm
Electrical data at 20°C
Loop resistance ≤ 110 Ohm/km
Screen resistance ≤ 9,5 Ohm/km
Insulation resistance ≤ 16 GOhm*km
Characteristic impedance (3 – 20 MHz) 150 ±15 Ohm
. (31,25 – 38,4 KHz) 185 ±18,5 Ohm
. (9,6 KHz) 270 ±27 Ohm
Attenuation
16 MHz ≤ 42 dB/km
4 MHz ≤ 22 dB/km
38.4 kHz ≤ 4 dB/km
9.6 kHz ≤ 2.5 dB/km
Inductance (31,25 KHz) ~ 1000 µH/km
Capacitance (1 KHz) ~ 28,5 nF/km
Unbalance to ground ≤ 1500 pF/km
Operating voltage (effective value) ≤ 100 V
UL-Rating 600 V
rel. velocity of propagation ~ 81 %
Test voltage (DC 3 sec) = 3600 V
Mechanical and thermal characteristics
Conductor material acc. to DIN EN 13602 Cu-ETP-A…
Screen material acc. to DIN EN 13602 Cu-ETP-A…-B
Insulating material acc. to DIN EN 50290-2-23 (VDE 0819), table 2/A (HD 624.3)
Jacket material acc. to DIN EN 50290-2-22 (VDE 0819), compoundtype TM52 (HD 624.2)
Cold bend test acc. DIN VDE 0473 part 811-1-4 ; after 16 hour storage at -40° Grad
Flame retardant acc. to IEC 60332-3-24 (Cat. C)
Flame retardant acc. to UL 1685 (CSA FT 4)
FILE E119100 Vol.1 Sec.16 Page 7
FILE E116441 Vol.1 Sec.6 Page 7
Other characteristics:
Sunlight resistant acc. to UL 1581 Sec.1200
Permissible temperature range: – 40°C up to + 80°C
Bending diameter ≥ 150 mm
Pulling force with ≤ 100 N
PVC weight with Phthalate : 47.6 Kg/km
PVC weight without Phthalate : 0.0 Kg/km
Weight about : 75 Kg/km (50,3 lb/1000ft)
Designation of order:
L45467-G16-C185
202226
02YSY(ST)CY 1X2X0.64/2.55-150 VI KF40 FR
1000 m on non-returnable reel
