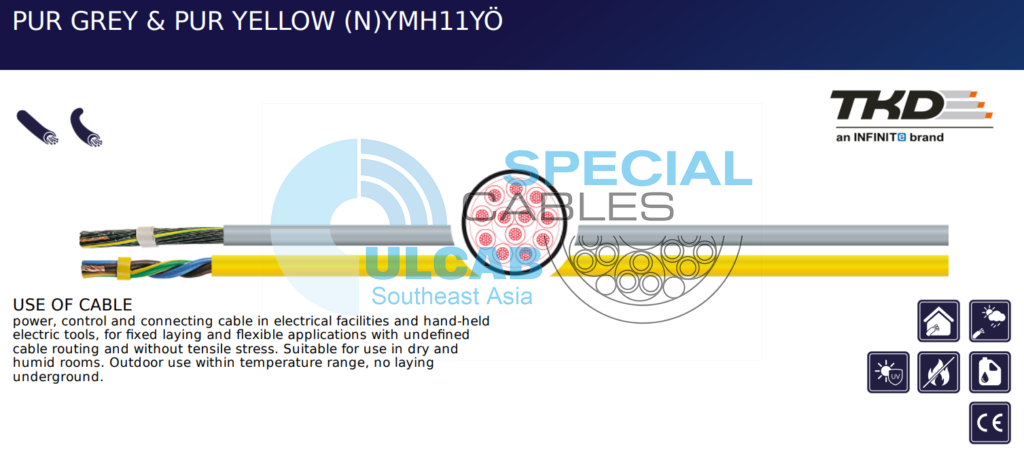

Cáp Điều Khiển TKD KABEL PUR GREY & PUR YELLOW (N)YMH11YÖ | Chính Hãng – Giá Tốt Nhất
- Hãng sản xuất: TKD KABEL
- Xuất Xứ: Đức (Europe)
Dây cáp điện và điều khiển tín hiệu TKD KABEL PUR GREY & PUR YELLOW (N)YMH11YÖ được sử dụng Vật liệu dẫn điện: Sợi đồng trần, Theo IEC 60228 cl. 5, Cách điện lõi: Nhựa PVC, Nhận dạng lõi: PUR YELLOW: tối đa 5 lõi theo DIN VDE 0293-308 lõi màu, từ 6 dây mã màu TKD có hoặc không có GNYE; PUR GREY: theo DIN VDE 0293 lõi đen với chữ số màu trắng với GNYE từ 3 lõi, Bị mắc kẹt trong nhiều lớp, Vỏ ngoài: PUR, Màu vỏ: Vàng RAL 1016 hoặc xám RAL 7001.
Sử dụng cáp
Cáp nguồn, cáp điều khiển và cáp kết nối trong các cơ sở điện và dụng cụ điện cầm tay, dùng cho lắp đặt cố định và các ứng dụng linh hoạt với tuyến cáp không xác định và không có ứng suất kéo. Thích hợp sử dụng trong phòng khô và ẩm. Sử dụng ngoài trời trong phạm vi nhiệt độ, không lắp đặt ngầm.
Tính năng đặc biệt
- tăng khả năng chống dầu của lớp vỏ ngoài PUR đặc biệt chống lại axit, bazơ, chất hòa tan, thủy phân, chất bôi trơn, v.v. (xem bảng khả năng chống hóa chất)
- Không có LABS (trong quá trình sản xuất)
- tăng khả năng chống mài mòn và vi khuẩn
- chống cắt, chống rách
- Vỏ ngoài PUR chống tia UV
- PUR vàng: Cáp an toàn có vỏ bọc ngoài màu vàng
Nhận xét
- tuân thủ RoHS
- tuân thủ theo Hướng dẫn 2014/35/EU (“Chỉ thị điện áp thấp”) CE
- cũng có sẵn các loại: C-PUR GREY EMC & PUR BLACK DESINA
- Các phiên bản đặc biệt, kích thước khác, mặt cắt ngang, lõi và màu vỏ được sản xuất theo yêu cầu.
| Conductor material: | Bare copper strand |
|---|---|
| Conductor class: | Acc. to IEC 60228 cl. 5 |
| Core insulation: | PVC |
| Core identification: | PUR YELLOW: up to 5 cores acc. to DIN VDE 0293-308 coloured cores, from 6 wires TKD coloured code with or without GNYE; PUR GREY: acc. to DIN VDE 0293 black cores with white numerals with GNYE from 3 cores |
| Stranding: | Stranded in layers |
| Outer sheath: | PUR |
| Sheath colour: | Yellow RAL 1016 or grey RAL 7001 |
| Rated voltage: | Uo/U: 300/500 V |
| Testing voltage: | 3 kV |
| Conductor resistance: | Acc. to IEC 60228 cl. 5 |
| Insulation resistance: | Min. 20 MΩ x km |
| Current-carrying-capacity: | Acc. to. DIN VDE, see Technical Guidelines |
| Min. bending radius fixed: | 5 x d |
| Min. bending radius moved: | 12,5 x d |
| Operat. temp. fixed min/max: | -40 °C / +80 °C |
| Operat. temp. moved min/max: | -5 °C / +70 °C |
| Standard: | Similar to DIN VDE 0245, 0250 and 0282 |
PUR GREY & PUR YELLOW (N)YMH11YÖ
01.04.01
| Product No. | Dimension [n x mm²] |
Outer-Ø [mm] |
Cu-Index [kg/km] |
Weight [kg/1.000] |
sheath colour |
Variant |
| 1003644 | 2 X 0,5 | 5,1 | 9,6 | 40,0 | grey | V1: PUR GRAU (N)YMH11YÖ – grau/grey |
| 1003646 | 3 G 0,5 | 5,4 | 14,4 | 55,0 | grey | V1: PUR GRAU (N)YMH11YÖ – grau/grey |
| 1003158 | 4 G 0,5 | 6,0 | 19,0 | 65,0 | grey | V1: PUR GRAU (N)YMH11YÖ – grau/grey |
| 1003650 | 5 G 0,5 | 6,5 | 24,0 | 75,0 | grey | V1: PUR GRAU (N)YMH11YÖ – grau/grey |
| 1003651 | 7 G 0,5 | 7,2 | 33,6 | 90,0 | grey | V1: PUR GRAU (N)YMH11YÖ – grau/grey |
| 1003654 | 12 G 0,5 | 9,3 | 57,6 | 135,0 | grey | V1: PUR GRAU (N)YMH11YÖ – grau/grey |
| 1003655 | 18 G 0,5 | 10,8 | 86,4 | 205,0 | grey | V1: PUR GRAU (N)YMH11YÖ – grau/grey |
| 1003658 | 25 G 0,5 | 13,2 | 120,0 | 270,0 | grey | V1: PUR GRAU (N)YMH11YÖ – grau/grey |
| 1003659 | 2 X 0,75 | 5,4 | 14,4 | 44,0 | grey | V1: PUR GRAU (N)YMH11YÖ – grau/grey |
| 1001843 | 3 G 0,75 | 5,8 | 21,6 | 53,0 | grey | V1: PUR GRAU (N)YMH11YÖ – grau/grey |
| 1003778 | 3 X 0,75 | 5,8 | 21,6 | 53,0 | grey | V1: PUR GRAU (N)YMH11YÖ – grau/grey |
| 1001870 | 4 G 0,75 | 6,4 | 28,8 | 64,0 | grey | V1: PUR GRAU (N)YMH11YÖ – grau/grey |
| 1003779 | 4 X 0,75 | 6,4 | 28,8 | 64,0 | grey | V1: PUR GRAU (N)YMH11YÖ – grau/grey |
| 1001193 | 5 G 0,75 | 7,1 | 36,0 | 76,0 | grey | V1: PUR GRAU (N)YMH11YÖ – grau/grey |
| 1003780 | 5 X 0,75 | 7,1 | 36,0 | 74,0 | grey | V1: PUR GRAU (N)YMH11YÖ – grau/grey |
| 1001185 | 7 G 0,75 | 7,8 | 50,4 | 96,0 | grey | V1: PUR GRAU (N)YMH11YÖ – grau/grey |
| 1001143 | 12 G 0,75 | 10,4 | 86,4 | 170,0 | grey | V1: PUR GRAU (N)YMH11YÖ – grau/grey |
| 1003663 | 18 G 0,75 | 12,4 | 130,0 | 260,0 | grey | V1: PUR GRAU (N)YMH11YÖ – grau/grey |
| 1003664 | 25 G 0,75 | 15,1 | 180,0 | 324,0 | grey | V1: PUR GRAU (N)YMH11YÖ – grau/grey |
| 1003667 | 34 G 0,75 | 17,0 | 245,0 | 475,0 | grey | V1: PUR GRAU (N)YMH11YÖ – grau/grey |
| 1001156 | 2 X 1 | 5,8 | 19,2 | 53,0 | grey | V1: PUR GRAU (N)YMH11YÖ – grau/grey |
| 1001158 | 3 G 1 | 6,3 | 28,8 | 63,0 | grey | V1: PUR GRAU (N)YMH11YÖ – grau/grey |
| 1001164 | 4 G 1 | 6,9 | 38,4 | 75,0 | grey | V1: PUR GRAU (N)YMH11YÖ – grau/grey |
| 1001178 | 5 G 1 | 7,7 | 48,0 | 89,0 | grey | V1: PUR GRAU (N)YMH11YÖ – grau/grey |
| 1003781 | 5 X 1 | 7,7 | 48,0 | 89,0 | grey | V1: PUR GRAU (N)YMH11YÖ – grau/grey |
| 1004950 | 6 G 1 | 8,8 | 57,6 | 99,0 | grey | V1: PUR GRAU (N)YMH11YÖ – grau/grey |
| 1001187 | 7 G 1 | 8,8 | 67,2 | 115,0 | grey | V1: PUR GRAU (N)YMH11YÖ – grau/grey |
| 1004948 | 9 G 1 | 10,7 | 86,4 | 167,0 | grey | V1: PUR GRAU (N)YMH11YÖ – grau/grey |
| 1001144 | 12 G 1 | 11,0 | 115,0 | 201,0 | grey | V1: PUR GRAU (N)YMH11YÖ – grau/grey |
| 1001147 | 18 G 1 | 13,0 | 173,0 | 289,0 | grey | V1: PUR GRAU (N)YMH11YÖ – grau/grey |
| 1001151 | 25 G 1 | 16,9 | 240,0 | 380,0 | grey | V1: PUR GRAU (N)YMH11YÖ – grau/grey |
| 1003673 | 34 G 1 | 18,3 | 326,0 | 645,0 | grey | V1: PUR GRAU (N)YMH11YÖ – grau/grey |
| 1001155 | 2 X 1,5 | 6,5 | 28,8 | 68,0 | grey | V1: PUR GRAU (N)YMH11YÖ – grau/grey |
| 1001160 | 3 G 1,5 | 6,9 | 43,2 | 87,0 | grey | V1: PUR GRAU (N)YMH11YÖ – grau/grey |
| 1001166 | 4 G 1,5 | 7,6 | 57,6 | 106,0 | grey | V1: PUR GRAU (N)YMH11YÖ – grau/grey |
| 1001180 | 5 G 1,5 | 8,5 | 72,0 | 131,0 | grey | V1: PUR GRAU (N)YMH11YÖ – grau/grey |
| 1004949 | 6 G 1,5 | 9,4 | 86,4 | 162,0 | grey | V1: PUR GRAU (N)YMH11YÖ – grau/grey |
| 1001189 | 7 G 1,5 | 9,4 | 101,0 | 173,0 | grey | V1: PUR GRAU (N)YMH11YÖ – grau/grey |
| 1001145 | 12 G 1,5 | 12,8 | 173,0 | 273,0 | grey | V1: PUR GRAU (N)YMH11YÖ – grau/grey |
| 1001148 | 18 G 1,5 | 15,2 | 259,0 | 454,0 | grey | V1: PUR GRAU (N)YMH11YÖ – grau/grey |
| 1001152 | 25 G 1,5 | 18,5 | 360,0 | 641,0 | grey | V1: PUR GRAU (N)YMH11YÖ – grau/grey |
| 1003677 | 34 G 1,5 | 20,8 | 490,0 | 945,0 | grey | V1: PUR GRAU (N)YMH11YÖ – grau/grey |
| 1003678 | 42 G 1,5 | 23,5 | 605,0 | 1.100,0 | grey | V1: PUR GRAU (N)YMH11YÖ – grau/grey |
| 1003681 | 50 G 1,5 | 24,2 | 720,0 | 1.250,0 | grey | V1: PUR GRAU (N)YMH11YÖ – grau/grey |
| 1003683 | 2 X 2,5 | 8,2 | 48,0 | 110,0 | grey | V1: PUR GRAU (N)YMH11YÖ – grau/grey |
| 1003684 | 3 G 2,5 | 8,7 | 72,0 | 146,0 | grey | V1: PUR GRAU (N)YMH11YÖ – grau/grey |
| 1001168 | 4 G 2,5 | 9,4 | 96,0 | 183,0 | grey | V1: PUR GRAU (N)YMH11YÖ – grau/grey |
| 1001182 | 5 G 2,5 | 10,3 | 120,0 | 222,0 | grey | V1: PUR GRAU (N)YMH11YÖ – grau/grey |
| 1001191 | 7 G 2,5 | 11,5 | 168,0 | 293,0 | grey | V1: PUR GRAU (N)YMH11YÖ – grau/grey |
| 1001146 | 12 G 2,5 | 15,7 | 288,0 | 512,0 | grey | V1: PUR GRAU (N)YMH11YÖ – grau/grey |
| 1003688 | 18 G 2,5 | 18,7 | 432,0 | 740,0 | grey | V1: PUR GRAU (N)YMH11YÖ – grau/grey |
| 1003689 | 25 G 2,5 | 24,1 | 600,0 | 940,0 | grey | V1: PUR GRAU (N)YMH11YÖ – grau/grey |
| 1001170 | 4 G 4 | 12,5 | 154,0 | 291,0 | grey | V1: PUR GRAU (N)YMH11YÖ – grau/grey |
| 1001777 | 5 G 4 | 14,0 | 192,0 | 355,0 | grey | V1: PUR GRAU (N)YMH11YÖ – grau/grey |
| 1003692 | 7 G 4 | 15,4 | 269,0 | 503,0 | grey | V1: PUR GRAU (N)YMH11YÖ – grau/grey |
| 1501740 | 4 G 6 | 13,0 | 230,0 | 468,0 | grey | V1: PUR GRAU (N)YMH11YÖ – grau/grey |
| 1003693 | 5 G 6 | 14,5 | 288,0 | 570,0 | grey | V1: PUR GRAU (N)YMH11YÖ – grau/grey |
| 1003695 | 7 G 6 | 16,0 | 403,0 | 808,0 | grey | V1: PUR GRAU (N)YMH11YÖ – grau/grey |
| 1003698 | 3 G 10 | 15,8 | 288,0 | 555,0 | grey | V1: PUR GRAU (N)YMH11YÖ – grau/grey |
| 1003699 | 4 G 10 | 16,2 | 384,0 | 720,0 | grey | V1: PUR GRAU (N)YMH11YÖ – grau/grey |
| 1003702 | 5 G 10 | 18,1 | 480,0 | 894,0 | grey | V1: PUR GRAU (N)YMH11YÖ – grau/grey |
| 1003703 | 7 G 10 | 20,0 | 672,0 | 1.295,0 | grey | V1: PUR GRAU (N)YMH11YÖ – grau/grey |
| 1001823 | 4 G 16 | 18,8 | 614,0 | 1.063,0 | grey | V1: PUR GRAU (N)YMH11YÖ – grau/grey |
| 1003707 | 5 G 16 | 23,6 | 768,0 | 1.400,0 | grey | V1: PUR GRAU (N)YMH11YÖ – grau/grey |
| 1003708 | 7 G 16 | 29,3 | 1.075,0 | 1.800,0 | grey | V1: PUR GRAU (N)YMH11YÖ – grau/grey |
| 1003711 | 4 G 25 | 29,4 | 960,0 | 1.590,0 | grey | V1: PUR GRAU (N)YMH11YÖ – grau/grey |
| 1003712 | 4 G 35 | 32,8 | 1.344,0 | 2.200,0 | grey | V1: PUR GRAU (N)YMH11YÖ – grau/grey |
| 1003715 | 4 G 50 | 38,9 | 1.920,0 | 2.400,0 | grey | V1: PUR GRAU (N)YMH11YÖ – grau/grey |
| 1003716 | 4 G 70 | 44,7 | 2.688,0 | 4.400,0 | grey | V1: PUR GRAU (N)YMH11YÖ – grau/grey |
| 1003719 | 4 G 95 | 59,6 | 3.648,0 | 6.000,0 | grey | V1: PUR GRAU (N)YMH11YÖ – grau/grey |
| 1003645 | 2 X 0,5 | 5,1 | 9,6 | 40,0 | yellow | V2: PUR GELB (N)YMH11YÖ – gelb/yellow |
| 1003647 | 3 G 0,5 | 5,4 | 14,4 | 55,0 | yellow | V2: PUR GELB (N)YMH11YÖ – gelb/yellow |
| 1003648 | 4 G 0,5 | 6,0 | 19,0 | 65,0 | yellow | V2: PUR GELB (N)YMH11YÖ – gelb/yellow |
| 1003649 | 5 G 0,5 | 6,5 | 24,0 | 75,0 | yellow | V2: PUR GELB (N)YMH11YÖ – gelb/yellow |
| 1003652 | 7 G 0,5 | 7,2 | 33,6 | 90,0 | yellow | V2: PUR GELB (N)YMH11YÖ – gelb/yellow |
| 1003653 | 12 G 0,5 | 9,3 | 57,6 | 135,0 | yellow | V2: PUR GELB (N)YMH11YÖ – gelb/yellow |
| 1003656 | 18 G 0,5 | 10,8 | 86,4 | 205,0 | yellow | V2: PUR GELB (N)YMH11YÖ – gelb/yellow |
| 1003657 | 25 G 0,5 | 13,2 | 120,0 | 270,0 | yellow | V2: PUR GELB (N)YMH11YÖ – gelb/yellow |
| 1001122 | 2 X 0,75 | 5,4 | 14,4 | 44,0 | yellow | V2: PUR GELB (N)YMH11YÖ – gelb/yellow |
| 1001125 | 3 G 0,75 | 5,8 | 21,6 | 53,0 | yellow | V2: PUR GELB (N)YMH11YÖ – gelb/yellow |
| 1001129 | 4 G 0,75 | 6,4 | 28,8 | 64,0 | yellow | V2: PUR GELB (N)YMH11YÖ – gelb/yellow |
| 1001135 | 5 G 0,75 | 7,1 | 36,0 | 76,0 | yellow | V2: PUR GELB (N)YMH11YÖ – gelb/yellow |
| 1003660 | 7 G 0,75 | 7,8 | 50,4 | 96,0 | yellow | V2: PUR GELB (N)YMH11YÖ – gelb/yellow |
| 1003661 | 12 G 0,75 | 10,4 | 86,4 | 170,0 | yellow | V2: PUR GELB (N)YMH11YÖ – gelb/yellow |
| 1003662 | 18 G 0,75 | 12,4 | 130,0 | 260,0 | yellow | V2: PUR GELB (N)YMH11YÖ – gelb/yellow |
| 1003665 | 25 G 0,75 | 15,1 | 180,0 | 324,0 | yellow | V2: PUR GELB (N)YMH11YÖ – gelb/yellow |
| 1003666 | 34 G 0,75 | 17,0 | 245,0 | 475,0 | yellow | V2: PUR GELB (N)YMH11YÖ – gelb/yellow |
| 1001123 | 2 X 1 | 5,8 | 19,2 | 53,0 | yellow | V2: PUR GELB (N)YMH11YÖ – gelb/yellow |
| 1001126 | 3 G 1 | 6,3 | 28,8 | 63,0 | yellow | V2: PUR GELB (N)YMH11YÖ – gelb/yellow |
| 1001130 | 4 G 1 | 6,9 | 38,4 | 75,0 | yellow | V2: PUR GELB (N)YMH11YÖ – gelb/yellow |
| 1001136 | 5 G 1 | 7,7 | 48,0 | 89,0 | yellow | V2: PUR GELB (N)YMH11YÖ – gelb/yellow |
| 1003668 | 7 G 1 | 8,8 | 67,2 | 115,0 | yellow | V2: PUR GELB (N)YMH11YÖ – gelb/yellow |
| 1003669 | 12 G 1 | 11,0 | 115,0 | 201,0 | yellow | V2: PUR GELB (N)YMH11YÖ – gelb/yellow |
| 1003670 | 18 G 1 | 13,0 | 173,0 | 289,0 | yellow | V2: PUR GELB (N)YMH11YÖ – gelb/yellow |
| 1003671 | 25 G 1 | 16,9 | 240,0 | 380,0 | yellow | V2: PUR GELB (N)YMH11YÖ – gelb/yellow |
| 1003672 | 34 G 1 | 18,3 | 326,0 | 645,0 | yellow | V2: PUR GELB (N)YMH11YÖ – gelb/yellow |
| 1001124 | 2 X 1,5 | 6,5 | 28,8 | 68,0 | yellow | V2: PUR GELB (N)YMH11YÖ – gelb/yellow |
| 1001127 | 3 G 1,5 | 6,9 | 43,2 | 87,0 | yellow | V2: PUR GELB (N)YMH11YÖ – gelb/yellow |
| 1001131 | 4 G 1,5 | 7,6 | 57,6 | 106,0 | yellow | V2: PUR GELB (N)YMH11YÖ – gelb/yellow |
| 1001137 | 5 G 1,5 | 8,5 | 72,0 | 131,0 | yellow | V2: PUR GELB (N)YMH11YÖ – gelb/yellow |
| 1001139 | 7 G 1,5 | 9,4 | 101,0 | 173,0 | yellow | V2: PUR GELB (N)YMH11YÖ – gelb/yellow |
| 1001121 | 12 G 1,5 | 12,8 | 173,0 | 293,0 | yellow | V2: PUR GELB (N)YMH11YÖ – gelb/yellow |
| 1003674 | 18 G 1,5 | 15,2 | 259,0 | 454,0 | yellow | V2: PUR GELB (N)YMH11YÖ – gelb/yellow |
| 1003675 | 25 G 1,5 | 18,5 | 360,0 | 641,0 | yellow | V2: PUR GELB (N)YMH11YÖ – gelb/yellow |
| 1003676 | 34 G 1,5 | 20,8 | 490,0 | 945,0 | yellow | V2: PUR GELB (N)YMH11YÖ – gelb/yellow |
| 1003679 | 42 G 1,5 | 23,5 | 605,0 | 1.100,0 | yellow | V2: PUR GELB (N)YMH11YÖ – gelb/yellow |
| 1003680 | 50 G 1,5 | 24,2 | 720,0 | 1.250,0 | yellow | V2: PUR GELB (N)YMH11YÖ – gelb/yellow |
| 1003682 | 2 X 2,5 | 8,2 | 48,0 | 110,0 | yellow | V2: PUR GELB (N)YMH11YÖ – gelb/yellow |
| 1001128 | 3 G 2,5 | 8,7 | 72,0 | 146,0 | yellow | V2: PUR GELB (N)YMH11YÖ – gelb/yellow |
| 1001132 | 4 G 2,5 | 9,4 | 96,0 | 183,0 | yellow | V2: PUR GELB (N)YMH11YÖ – gelb/yellow |
| 1001138 | 5 G 2,5 | 10,3 | 120,0 | 222,0 | yellow | V2: PUR GELB (N)YMH11YÖ – gelb/yellow |
| 1003685 | 7 G 2,5 | 11,5 | 168,0 | 293,0 | yellow | V2: PUR GELB (N)YMH11YÖ – gelb/yellow |
| 1003686 | 12 G 2,5 | 15,7 | 288,0 | 512,0 | yellow | V2: PUR GELB (N)YMH11YÖ – gelb/yellow |
| 1003687 | 18 G 2,5 | 18,7 | 432,0 | 740,0 | yellow | V2: PUR GELB (N)YMH11YÖ – gelb/yellow |
| 1003690 | 25 G 2,5 | 24,1 | 600,0 | 940,0 | yellow | V2: PUR GELB (N)YMH11YÖ – gelb/yellow |
| 1001133 | 4 G 4 | 12,5 | 154,0 | 291,0 | yellow | V2: PUR GELB (N)YMH11YÖ – gelb/yellow |
| 1003137 | 5 G 4 | 14,0 | 192,0 | 355,0 | yellow | V2: PUR GELB (N)YMH11YÖ – gelb/yellow |
| 1003691 | 7 G 4 | 15,4 | 269,0 | 503,0 | yellow | V2: PUR GELB (N)YMH11YÖ – gelb/yellow |
| 1001134 | 4 G 6 | 13,0 | 230,0 | 468,0 | yellow | V2: PUR GELB (N)YMH11YÖ – gelb/yellow |
| 1003694 | 5 G 6 | 14,5 | 288,0 | 570,0 | yellow | V2: PUR GELB (N)YMH11YÖ – gelb/yellow |
| 1003696 | 7 G 6 | 16,0 | 403,0 | 808,0 | yellow | V2: PUR GELB (N)YMH11YÖ – gelb/yellow |
| 1003697 | 3 G 10 | 15,8 | 288,0 | 555,0 | yellow | V2: PUR GELB (N)YMH11YÖ – gelb/yellow |
| 1003700 | 4 G 10 | 16,2 | 384,0 | 720,0 | yellow | V2: PUR GELB (N)YMH11YÖ – gelb/yellow |
| 1003701 | 5 G 10 | 18,1 | 480,0 | 894,0 | yellow | V2: PUR GELB (N)YMH11YÖ – gelb/yellow |
| 1003704 | 7 G 10 | 20,0 | 672,0 | 1.295,0 | yellow | V2: PUR GELB (N)YMH11YÖ – gelb/yellow |
| 1003705 | 4 G 16 | 18,8 | 614,0 | 1.063,0 | yellow | V2: PUR GELB (N)YMH11YÖ – gelb/yellow |
| 1003706 | 5 G 16 | 23,6 | 768,0 | 1.400,0 | yellow | V2: PUR GELB (N)YMH11YÖ – gelb/yellow |
| 1003709 | 7 G 16 | 29,3 | 1.075,0 | 1.800,0 | yellow | V2: PUR GELB (N)YMH11YÖ – gelb/yellow |
| 1003710 | 4 G 25 | 29,4 | 960,0 | 1.590,0 | yellow | V2: PUR GELB (N)YMH11YÖ – gelb/yellow |
| 1003713 | 4 G 35 | 32,8 | 1.344,0 | 2.200,0 | yellow | V2: PUR GELB (N)YMH11YÖ – gelb/yellow |
| 1003714 | 4 G 50 | 38,9 | 1.920,0 | 2.400,0 | yellow | V2: PUR GELB (N)YMH11YÖ – gelb/yellow |
| 1003717 | 4 G 70 | 44,7 | 2.688,0 | 4.400,0 | yellow | V2: PUR GELB (N)YMH11YÖ – gelb/yellow |
