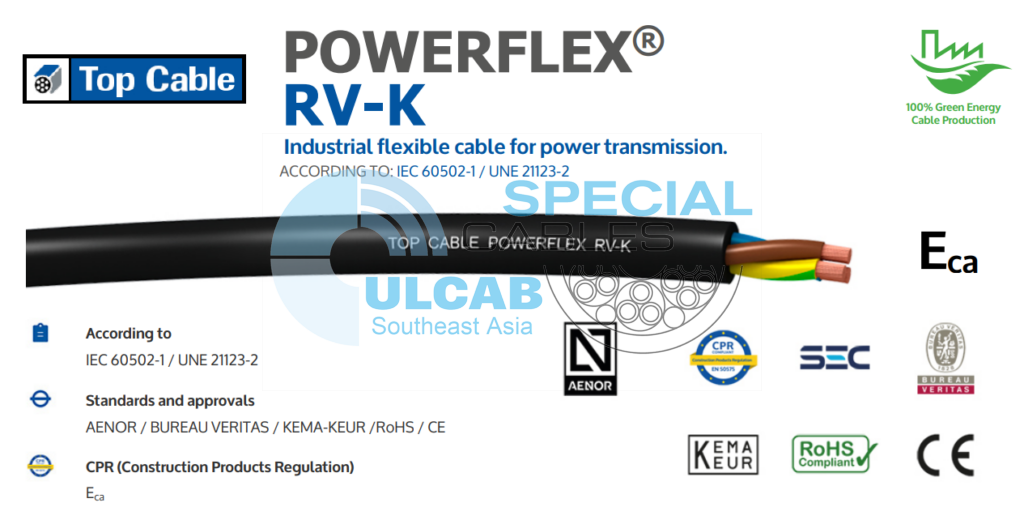

Cáp Điện TOP CABLE POWERFLEX RV-K 0,6/1kV BLACK | Chính Hãng – Giá Tốt Nhất
Hãng sản xuất: TOP CABLE
Xuẩt xứ, Sản xuất tại: Spain
Dây cáp điện TOP CABLE POWERFLEX RV-K được sử dụng Dây dẫn bằng đồng ủ điện phân, loại 5 (linh hoạt) theo tiêu chuẩn EN 60228 và IEC 60228. Loại cách điện polyethylene liên kết chéo DIX-3 theo HD 603-1 và loại XLPE theo IEC 60502-1. Nhận dạng tiêu chuẩn của dây dẫn cách điện theo HD 308 như sau: 1 x Tự nhiên , 2 x Xanh + Nâu, 3G Xanh dương + Nâu + Xanh lá/Vàng, 3 x Nâu + Đen + Xám, 3 x + 1 x Nâu + Đen + Xám + Xanh lam (mặt cắt giảm), 4 G Nâu + Đen + Xám + Xanh lá/Vàng, 4 x Nâu + Đen + Xám + Xanh, 5 G Nâu + Đen + Xám + Xanh dương + Xanh lá/Vàng, 6G trở lên Đen đánh số + Xanh lá/Vàng. Vỏ bọc ngoài bằng PVC mềm, loại DMV-18 theo HD 603-1 và loại ST2 theo IEC 60502-1. Màu đen.
Industrial flexible cable for power transmission.
Powerflex RV-K cable is suitable for all types of low voltage industrial-type connections, in urban grids, building installations, etc. Its high flexibility makes the installation process substantially easier and, as a result, is particularly suitable for use in difficult layouts. It can be buried or installed in a tube as well as outdoors without requiring additional protection. This cable can withstand damp conditions including total immersion in water (AD8).
Performance of POWERFLEX RV-K cable
Electrical performance
Low voltage: 0,6 / 1kV
Standards
IEC 60502-1 – UNE 21123-2
Approvals
AENOR / BUREAU VERITAS / KEMA KEUR / CE / RoHS
CPR (Construction Products Regulation)
Eca
Thermal performance
Maximum conductor temperature: 90ºC.
Maximum short-circuit temperature: 250ºC (máx. 5 s).
Minimum service temperature: -40ºC (fixed and protected installations).
Minimum installation and handling temperature: 0ºC (on cable surface).
Fire performance
Flame non-propagation according to EN 60332-1 and IEC 60332-1.
Reaction to fire CPR: E ca, according to EN 50575.
Reduced halogen emission. Chlorine <15%.
Mechanical performance
Minimum bending radius: 5x cable diameter.
Impact resistance: AG2 Medim severity.
Environmental performance
Chemical & Oil resistance: Good. UV Resistant: UNE 211605.
Water resistance: AD8 immersion.
Installation conditions
Open Air.
Buried.
In conduit.
In tray.
Design of POWERFLEX RV-K cable
Conductor
Electrolytic annealed copper conductor, class 5(flexible) according to EN 60228 and IEC 60228
Insulation
Cross-linked polyethylene insulation type DIX-3 according to HD 603-1 and type XLPE according to IEC 60502-1. The standard identification of insulated conductors according to HD 308 is the following:
1 x Natural
2 x Blue + Brown
3 G Blue + Brown + Green/Yellow
3 x Brown + Black + Grey
3 x + 1 x Brown + Black + Grey + Blue (reduced cross-section)
4 G Brown + Black + Grey + Green/Yellow
4 x Brown + Black + Grey + Blue
5 G Brown + Black + Grey + Blue + Green/Yellow
6 G or more Black numbered + Green/Yellow
Outer sheath
Flexible PVC outer sheath, type DMV-18 according to HD 603-1 and type ST2 according to IEC 60502-1. Black color.
