Cáp Điện Đơm Chìm TOP CABLE XTREM H07RN-F BLACK | Chính Hãng – Ngâm nước sâu AD8 100m – Giá Tốt Nhất

Cáp Điện Đơm Chìm TOP CABLE XTREM H07RN-F BLACK | Chính Hãng – Ngâm nước sâu AD8 100m – Giá Tốt Nhất

Hãng sản xuất: TOP CABLE
Xuẩt xứ, Sản xuất tại: Spain

Dây cáp điện dùng cho động cơ bơm chìm TOP CABLE XTREM H07RN-F được sử dụng dây dẫn Đồng điện phân, loại 5 (linh hoạt), dựa trên EN 60228 và IEC 60228. Cách nhiệt Cao su (loại EI7 theo EN 50363-1). Tiêu chuẩn nhận dạng theo HD 308 và EN 50334 như sau: 1 x Tự nhiên, 2 x Xanh + Nâu, 3G Xanh dương + Nâu + Vàng/Xanh lá, 3 x Nâu + Đen + Xám, 4 G Nâu + Đen + Xám + Vàng/Xanh lá, 4 x Nâu + Đen + Xám + Xanh, 5 G Nâu + Đen + Xám + Xanh + Vàng/Xanh lá, 6 hoặc nhiều hơn Đen đánh số + Vàng/Xanh lá. Vỏ ngoài Cao su mềm, loại EM2 theo tiêu chuẩn EN 50363-2-1. Màu đen.

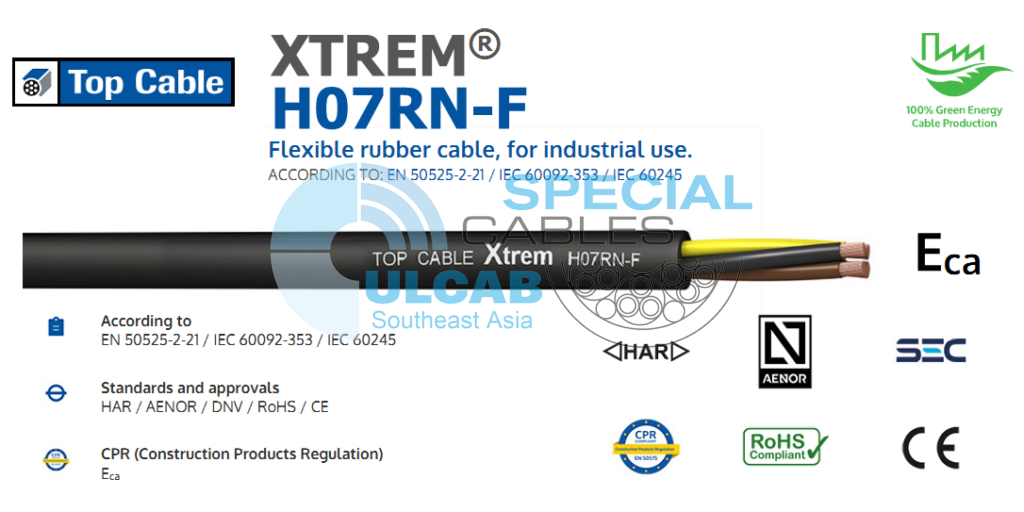

Flexible rubber cable, for industrial use.

Xtrem® H07RN-F rubber cables are designed to supply power to low voltage appliances including electric motors and submersible pumps in deep water installations as well as many other types of electrical equipment. Thanks to its extraordinary flexibility and mechanical strength, the Xtrem® H07RN-F cable is ideal for power transmission in both fixed installation or mobile service. The nominal voltage up to 1000 V thanks to the high dielectric properties of the insulation material (according to HD 516). Top Cable Xtrem® H07RN-F cables are designed to power all types of electrical equipment including motors and submersible pumps in deep water installations (AD8).

XTREM® H07RN-F cable performance

Electrical performance

LOW VOLTAGE 450/750 V

Standard

EN 50525-2-21 / IEC 60092-353 / IEC 60245

Approvals

AENOR / HAR / DNV / CE / RoHS

Safe drinking water certificate

Construction Products Regulation (CPR)

Eca

Thermal performance

Maximum conductor temperature: 90ºC.

Maximum short-circuit temperature: 250ºC (max. 5 s).

Minimum service temperature: -40ºC (fixed and protected installations) and -25ºC (mobile use)

Fire performance

Flame non-propagation based on EN 60332-1 and IEC 60332-1.

Reaction to fire CPR: Eca, according to EN 50575.

Mechanical performance

Minimum bending radius: 3 x cable diameter (up to 12 mm2). 4 x cable diameter (from 12 mm2 onwards).

Impact resistance: AG2 Medium severity.

Chemical performance

Chemical & Oil resistance: Excellent.

Grease & mineral oils resistance: Excellent.

Water performance

Water resistance: AD8 Submersion.

Cable for submersible pumps in drinkable water based on AS/NZS 4020.

Deep wells

Drinkable water

AWQC.

Other

Meter by meter marking.

Installation conditions

Open Air.

Submersible pumps cable.

Applications

Industrial use.

Mobile use.

Robotics.

Wind turbines

Temporary site installations.

Packaging

Available in rolls of 100 m. and drums.

XTREM H07RN-F cable design

Conductor

Electrolytic copper, class 5 (flexible), based on EN 60228 and IEC 60228.

Insulation

Rubber (type EI7 according to EN 50363-1).

The standard identification according to HD 308 and EN 50334 is the following:

1 x Natural

2 x Blue + Brown

3 G Blue + Brown + Yellow/Green

3 x Brown + Black + Grey

4 G Brown + Black + Grey + Yellow/Green

4 x Brown + Black + Grey + Blue

5 G Brown + Black + Grey + Blue + Yellow/Green

6 or more Black numbered + Yellow/Green

Outer sheath

Flexible rubber, type EM2 according to EN 50363-2-1. Black color.

DOWNLOADS

product information (PDF)
