Dây cáp điện lõi đơn TOP CABLE 0.6/1KV TOXFREE ZH MX 90ºC Halogen Free | Chính Hãng – MARINE CABLES – Offshore – Giá Tốt Nhất
Hãng sản xuất: TOP CABLE
Xuất Xứ: Spain
Dây cáp điện và điều khiển tín hiệu Single core TOP CABLE TOXFREE ZH MX 90ºC được sử dụng dây dẫn Đồng ủ điện phân, loại 5 (dẻo) theo tiêu chuẩn EN 60228 và IEC 60228; Size: 1.0mm2 ; 1.5mm2 ; 2.5mm2 ; 4mm2 ; 6mm2; Cách điện: Cao su nhiệt rắn mềm không chứa halogen, loại HF 90 theo tiêu chuẩn IEC 60092-360; Màu tiêu chuẩn: Nâu, Đỏ, Cam, Vàng, Xanh lá, Xanh dương, Tím, Xám, Trắng, Đen, Hồng, Xanh dương nhạt, Xanh lá/Vàng.
Flexible and halogen free 90ºC cable for electrical panel wiring./ Cáp mềm dẻo, không chứa halogen, chịu được nhiệt độ 90ºC dùng để đấu dây bảng điện.
ACCORDING TO: IEC 60092-353

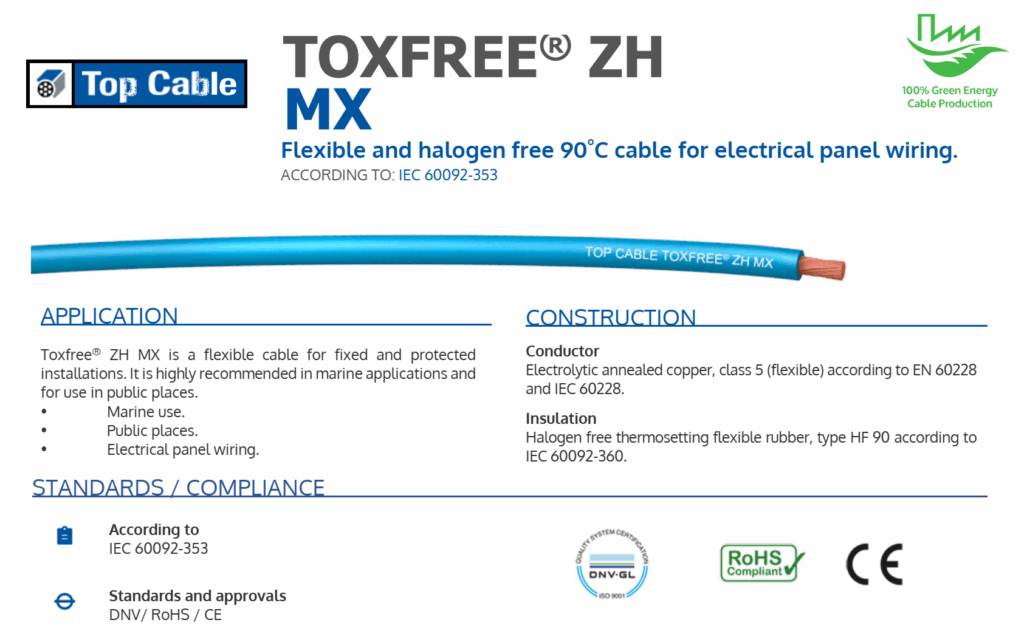

Toxfree® ZH MX is a flexible cable for fixed and protected installations. It is highly recommended in marine applications and for use in public places.
• Marine use.
• Public places.
• Electrical panel wiring.
CHARACTERISTICS
Electrical performance
Low voltage: 0,6/1 kV.
Thermal performance
Maximum conductor temperature: 90ºC.
Maximum short-circuit temperature: 250ºC (max. 5 s).
Minimum service temperature: -40ºC (fixed and protected installations).
Fire performance
Flame non-propagation according to EN 60332-1 / IEC 60332-1.
Fire non-propagation according to EN 60332-3-22 / IEC 60332-3-22.
Low Smoke Zero Halogen according to EN 60754-1 / IEC 60754-1.
Low corrosive gases emission according to EN 60754-2 / IEC 60754-2.
Low smoke emission according to EN 61034 / IEC 61034:
Light transmittance > 60%.
Mechanical performance
Minimum bending radius: 4x cable diameter.
Environmental performance
Chemical & Oil resistance: Acceptable.
Installation conditions
Open Air.
In conduit on a bulkhead.
On a bulkhead.
STANDARDS / COMPLIANCE
According to
IEC 60092-353
Standards and approvals
DNV/ RoHS / CE
CONSTRUCTION
Conductor
Electrolytic annealed copper, class 5 (flexible) according to EN 60228 and IEC 60228.
Insulation
Halogen free thermosetting flexible rubber, type HF 90 according to IEC 60092-360.
The standard identification of insulated conductors is the following:
Blue RAL 5015
Brown RAL 8003
Black RAL 9005
Red RAL 3000
Green/Yellow RAL 6018/1021
Grey RAL 7000
White RAL 9010
Other colours available on request
DIMENSIONS & ADMISSIBLE INTENSITIES
| Cross-section (mm2) |
Diameter (mm) |
Weight (Kg/km) |
Open Air (A) 1 |
Resistance at 20ºC (Ω/km) |
Voltage drop (V/A · km) 2 |
| 1 x 1 | 2,4 | 13 | – | 19,5 | 39,0 |
| 1 x 1,5 | 2,9 | 20 | 18 | 13,3 | 29,5 |
| 1 x 2,5 | 3,6 | 30 | 25 | 7,98 | 17,7 |
| 1×4 | 4,1 | 45 | 35 | 4,95 | 11,0 |
| 1×6 | 4,7 | 60 | 46 | 3,30 | 7,32 |
1 Reference method F according to IEC 60092-352 in open air at 45°C ambient temperature.
2 At maximum service temperature and cosϕ=1.
In all cases are supposed a three-phase circuit.
SHORT CIRCUIT CURRENT CARRYING CAPACITIES
| Time (s) | 0,1 | 0,2 | 0,3 | 0,5 | 1 | 1,5 | 2 | 2,5 | 3 |
| A/mm2 | 452 | 320 | 261 | 202 | 143 | 117 | 101 | 90 | 83 |
CORRECTION FACTORS FOR AIR TEMPERATURE
| Air T. (°C) | 35 | 40 | 45 | 50 | 55 | 60 | 65 | 70 | 75 | 80 |
| Factor | 1,10 | 1,05 | 1 | 0,94 | 0,88 | 0,82 | 0,74 | 0,67 | 0,58 | 0,47 |
Other correction factors (for grouping cables, for harmonic currents), that are not in this specification, can be applied. Further information can be found in IEC 60092-352.
Catalog Sản Phẩm >>>
