Power and control cables
Various applications
PVC outer sheath and numbered cores

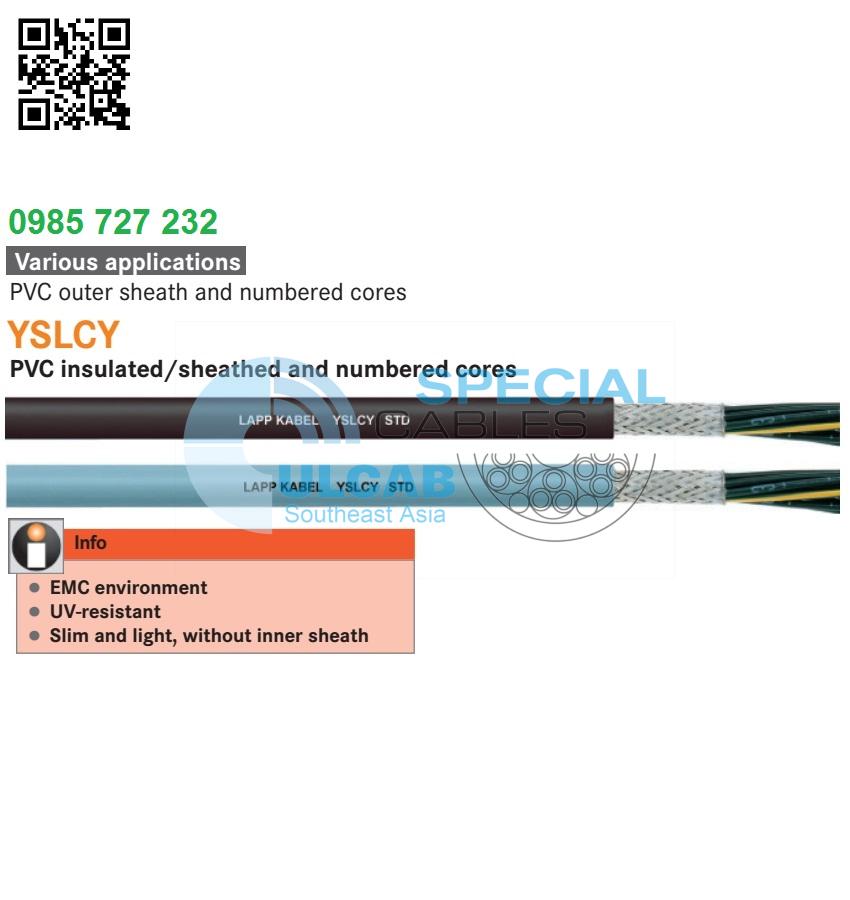

LAPPKABEL ÖLFLEX® YSLCY

PVC insulated/sheathed and numbered cores

• product information ( PDF )

■ Benefits

• Space saving due to small cable diameter

• Economic solution for basic application

■ Application range

• Used as a connection cable for measuring, monitoring and control connections in indus trial machineries, heating and air refrigeration systems, office equipment, etc.

• Dry or damp interiors under medium me chanical load conditions

• Fixed installations as well as for occasional flexing at free, non-continuously recurring movement without tensile load

• Suitable in EMC-critical environments

■ Product features

• Flame-retardant acc. to IEC 60332-1-2

• UV resistant can be used outdoor

• With or without protective conductor gn/ye

■ Approvals (Norm references)

■ Design

• Fine strands of bare copper wires

• PVC core insulation

• Plastic foil wrapping

• Tinned copper wire screen braiding

• PVC outer sheath, grey or black

• MOQ may apply for certain sizes

■ Technical data

Core identification code
Black core with white numbers
Based on
IEC 60227
Specific insulation resistance
> 20 GOhm x cm
Conductor stranding
Fine wire acc. to IEC 60228 Cl.5
Minimum bending radius
Occasional flexing: 25 x outer diameter
Fixed installation: 12 x outer diameter
Nominal voltage
U₀/U: 300/500 V

Test voltage
2000 V
Protective conductor
G = with protective conductor GN/YE
X = without protective conductor
Temperature range
Fixed installation: -20°C to +70°C
