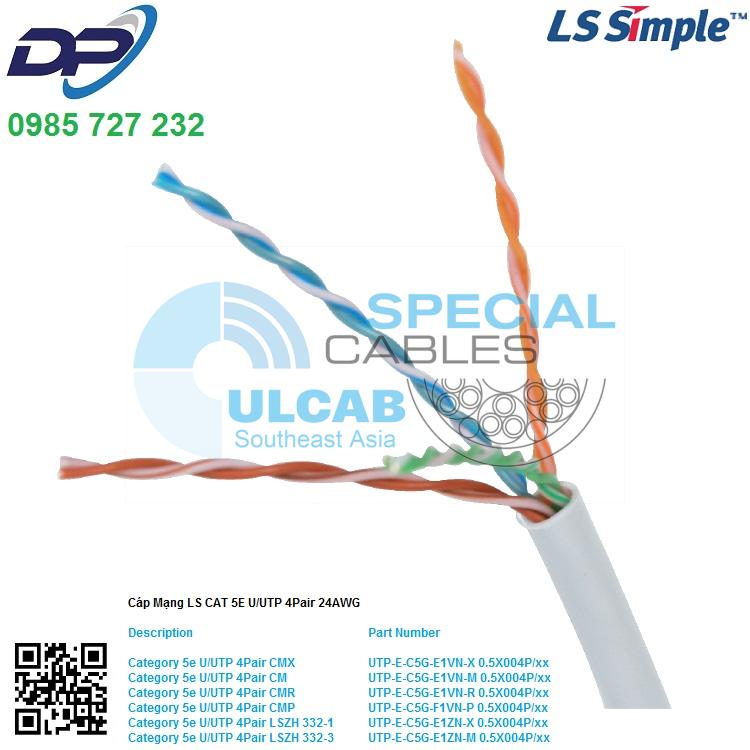

Cáp Mạng LS CAT5E U/UTP 4Pair CM – Blue ( UTP-E-C5G-E1VN-M 0.5X004P/BL )

25
Th3



Cáp Mạng LS CAT5E U/UTP 4Pair CM – Blue ( UTP-E-C5G-E1VN-M 0.5X004P/BL )

DESCRIPTION
· Cable diameter : 0.193inch (4.9mm)
· ETL, EC Verified
· Supports Fast Ehternet, Gigabit Ethernet, 155 Mb/s, Multimedia
· All accepted design for global commercial network installation
· Simplified structured cabling solution preserving long-term network investment
· High flame retardant grade of the cable (Plenum Cable)
· Comply with ANSI/TIA-568-C.2
· Specialized print legend contains footage or metric or dual marking
· RoHS compliant
· Qualifies for the LS 25-year extended Product Warranty and Applications Assurance when included as part of a registered LS Category 5e Channel
PART LISTS
Description Part Number
Category 5e U/UTP 4Pair CMX UTP-E-C5G-E1VN-X 0.5X004P/WH
Category 5e U/UTP 4Pair CM UTP-E-C5G-E1VN-M 0.5X004P/WH
Category 5e U/UTP 4Pair CMR UTP-E-C5G-E1VN-R 0.5X004P/WH
Category 5e U/UTP 4Pair CMP UTP-E-C5G-F1VN-P 0.5X004P/WH
Category 5e U/UTP 4Pair LSZH 332-1 UTP-E-C5G-E1ZN-X 0.5X004P/WH
Category 5e U/UTP 4Pair LSZH 332-3 UTP-E-C5G-E1ZN-M 0.5X004P/WH
Category 5e U/UTP 4Pair CMX UTP-E-C5G-E1VN-X 0.5X004P/BL
Category 5e U/UTP 4Pair CM UTP-E-C5G-E1VN-M 0.5X004P/BL
Category 5e U/UTP 4Pair CMR UTP-E-C5G-E1VN-R 0.5X004P/BL
Category 5e U/UTP 4Pair CMP UTP-E-C5G-F1VN-P 0.5X004P/BL
Category 5e U/UTP 4Pair LSZH 332-1 UTP-E-C5G-E1ZN-X 0.5X004P/BL
Category 5e U/UTP 4Pair LSZH 332-3 UTP-E-C5G-E1ZN-M 0.5X004P/BL
Category 5e U/UTP 4Pair CMX UTP-E-C5G-E1VN-X 0.5X004P/GY
Category 5e U/UTP 4Pair CM UTP-E-C5G-E1VN-M 0.5X004P/GY
Category 5e U/UTP 4Pair CMR UTP-E-C5G-E1VN-R 0.5X004P/GY
Category 5e U/UTP 4Pair CMP UTP-E-C5G-F1VN-P 0.5X004P/GY
Category 5e U/UTP 4Pair LSZH 332-1 UTP-E-C5G-E1ZN-X 0.5X004P/GY
Category 5e U/UTP 4Pair LSZH 332-3 UTP-E-C5G-E1ZN-M 0.5X004P/GY
Category 5e U/UTP 4Pair CMX UTP-E-C5G-E1VN-X 0.5X004P/VI
Category 5e U/UTP 4Pair CM UTP-E-C5G-E1VN-M 0.5X004P/VI
Category 5e U/UTP 4Pair CMR UTP-E-C5G-E1VN-R 0.5X004P/VI
Category 5e U/UTP 4Pair CMP UTP-E-C5G-F1VN-P 0.5X004P/VI
Category 5e U/UTP 4Pair LSZH 332-1 UTP-E-C5G-E1ZN-X 0.5X004P/VI
Category 5e U/UTP 4Pair LSZH 332-3 UTP-E-C5G-E1ZN-M 0.5X004P/VI
Category 5e U/UTP 4Pair CMX UTP-E-C5G-E1VN-X 0.5X004P/OR
Category 5e U/UTP 4Pair CM UTP-E-C5G-E1VN-M 0.5X004P/OR
Category 5e U/UTP 4Pair CMR UTP-E-C5G-E1VN-R 0.5X004P/OR
Category 5e U/UTP 4Pair CMP UTP-E-C5G-F1VN-P 0.5X004P/OR
Category 5e U/UTP 4Pair LSZH 332-1 UTP-E-C5G-E1ZN-X 0.5X004P/OR
Category 5e U/UTP 4Pair LSZH 332-3 UTP-E-C5G-E1ZN-M 0.5X004P/OR
Category 5e U/UTP 4Pair CMX UTP-E-C5G-E1VN-X 0.5X004P/RD
Category 5e U/UTP 4Pair CM UTP-E-C5G-E1VN-M 0.5X004P/RD
Category 5e U/UTP 4Pair CMR UTP-E-C5G-E1VN-R 0.5X004P/RD
Category 5e U/UTP 4Pair CMP UTP-E-C5G-F1VN-P 0.5X004P/RD
Category 5e U/UTP 4Pair LSZH 332-1 UTP-E-C5G-E1ZN-X 0.5X004P/RD
Category 5e U/UTP 4Pair LSZH 332-3 UTP-E-C5G-E1ZN-M 0.5X004P/RD
Category 5e U/UTP 4Pair CMX UTP-E-C5G-E1VN-X 0.5X004P/GN
Category 5e U/UTP 4Pair CM UTP-E-C5G-E1VN-M 0.5X004P/GN
Category 5e U/UTP 4Pair CMR UTP-E-C5G-E1VN-R 0.5X004P/GN
Category 5e U/UTP 4Pair CMP UTP-E-C5G-F1VN-P 0.5X004P/GN
Category 5e U/UTP 4Pair LSZH 332-1 UTP-E-C5G-E1ZN-X 0.5X004P/GN
Category 5e U/UTP 4Pair LSZH 332-3 UTP-E-C5G-E1ZN-M 0.5X004P/GN
Category 5e U/UTP 4Pair CMX UTP-E-C5G-E1VN-X 0.5X004P/YL
Category 5e U/UTP 4Pair CM UTP-E-C5G-E1VN-M 0.5X004P/YL
Category 5e U/UTP 4Pair CMR UTP-E-C5G-E1VN-R 0.5X004P/YL
Category 5e U/UTP 4Pair CMP UTP-E-C5G-F1VN-P 0.5X004P/YL
Category 5e U/UTP 4Pair LSZH 332-1 UTP-E-C5G-E1ZN-X 0.5X004P/YL
Category 5e U/UTP 4Pair LSZH 332-3 UTP-E-C5G-E1ZN-M 0.5X004P/YL
Category 5e U/UTP 4Pair CMX UTP-E-C5G-E1VN-X 0.5X004P/BK
Category 5e U/UTP 4Pair CM UTP-E-C5G-E1VN-M 0.5X004P/BK
Category 5e U/UTP 4Pair CMR UTP-E-C5G-E1VN-R 0.5X004P/BK
Category 5e U/UTP 4Pair CMP UTP-E-C5G-F1VN-P 0.5X004P/BK
Category 5e U/UTP 4Pair LSZH 332-1 UTP-E-C5G-E1ZN-X 0.5X004P/BK
Category 5e U/UTP 4Pair LSZH 332-3 UTP-E-C5G-E1ZN-M 0.5X004P/BK
APPLICATION
· Horizontal Distribution & Backbone Cabling
· 4/16Mbps Token Ring (IEEE 802.5)
· 10/100/1000 BASE-T (IEEE 802.3)
· 155Mbps ATM
· 100Mbps TP-PMD
· ISDN, ADSL
TECHNICAL DETAILS
Characteristics units Cat.5e
DC Resistance Ω/100m ≤ 9.38
DC Resistance Unbalance % ≤ 5.00
Mutual Capacitance nF/100m ≤ 5.60
Capacitance Unbalance

(Pair to Ground)

 pF/100m ≤ 330
Insulation Resistance MΩ-100m ≥ 500
Dielectric Strength DC kV/sec 2.5 / 2
Impedance

(Characteristic mean)

 Ω 100 ± 15%  (1 ≤ f ≤ 100MHz)
Return Loss dB/100m ≥ 20 + 5 * log(freq)         1 ≤ f  < 10MHz

≥ 25                                  10 ≤ f < 20MHz

≥ 25 – 7 * log(freq/20)    20 ≤ f ≤ 100MHz
Attenuation

(Insertion Loss)

 dB/100m ≤ 1.967*√(freq) + 0.023*(freq) + 0.05/√(freq)

1 ~ 100 MHz
NEXT Loss dB/100m ≥ 35.3 – 15*log(freq/100) , 1 < f ≤ 100MHz
Power sum NEXT Loss dB/100m ≥ 32.3 – 15*log(freq/100) , 1 < f ≤ 100MHz
ELFEXT Loss dB/100m ≥ 23.8 – 20*log(freq/100) , 1 ~ 100MHz
Power sum ELFEXT Loss dB/100m ≥ 20.8 – 20*log(freq/100) , 1 ~ 100MHz
Propagation Delay ns/100m ≤ 534 + 36 / √ (Freq) , 1 ~ 100MHz
Propagation Delay Skew ns/100m ≤ 45
Freq.
(MHz)		 Attenuation
(dB/100m)
Max.		 NEXT
(dB/100m)
Min.		 PSNEXT
(dB/100m)
Min.		 ELFEXT
(dB/100m)
Min.		 PSELFEXT
(dB/100m)
Min.		 RL
(dB/100m)
Min.		 P.Delay
(ns/100m)
Max.
1 2 65.3 62.3 63.8 60.8 20 570
4 4.1 56.3 53.3 51.8 48.8 23 552
8 5.8 51.8 48.8 45.7 42.7 24.5 547
10 6.5 50.3 47.3 43.8 40.8 25 545
16 8.2 47.2 44.2 39.7 36.7 25 543
20 9.3 45.8 42.8 37.8 34.8 25 542
25 10.4 44.3 41.3 35.8 32.8 24.3 541
31.25 11.7 42.9 39.9 33.9 30.9 23.6 540
62.5 17 38.4 35.4 27.9 24.9 21.5 539
100 22 35.3 32.3 23.8 20.8 20.1 538
