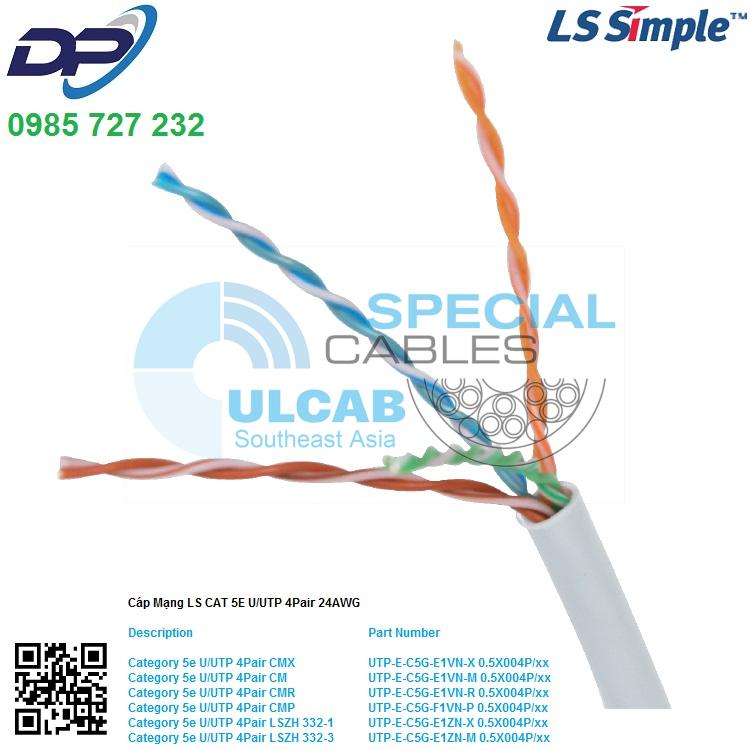

Cáp Mạng LS CAT5E U/UTP 4Pair LSZH 332-1 – White ( UTP-E-C5G-E1ZN-X 0.5X004P/WH )
- DESCRIPTION
- · Cable diameter : 0.193inch (4.9mm)
· ETL, EC Verified
· Supports Fast Ehternet, Gigabit Ethernet, 155 Mb/s, Multimedia
· All accepted design for global commercial network installation
· Simplified structured cabling solution preserving long-term network investment
· High flame retardant grade of the cable (Plenum Cable)
· Comply with ANSI/TIA-568-C.2
· Specialized print legend contains footage or metric or dual marking
· RoHS compliant
· Qualifies for the LS 25-year extended Product Warranty and Applications Assurance when included as part of a registered LS Category 5e Channel
- PART LISTS
-
Description Part Number Category 5e U/UTP 4Pair CMX UTP-E-C5G-E1VN-X 0.5X004P/WH Category 5e U/UTP 4Pair CM UTP-E-C5G-E1VN-M 0.5X004P/WH Category 5e U/UTP 4Pair CMR UTP-E-C5G-E1VN-R 0.5X004P/WH Category 5e U/UTP 4Pair CMP UTP-E-C5G-F1VN-P 0.5X004P/WH Category 5e U/UTP 4Pair LSZH 332-1 UTP-E-C5G-E1ZN-X 0.5X004P/WH Category 5e U/UTP 4Pair LSZH 332-3 UTP-E-C5G-E1ZN-M 0.5X004P/WH Category 5e U/UTP 4Pair CMX UTP-E-C5G-E1VN-X 0.5X004P/BL Category 5e U/UTP 4Pair CM UTP-E-C5G-E1VN-M 0.5X004P/BL Category 5e U/UTP 4Pair CMR UTP-E-C5G-E1VN-R 0.5X004P/BL Category 5e U/UTP 4Pair CMP UTP-E-C5G-F1VN-P 0.5X004P/BL Category 5e U/UTP 4Pair LSZH 332-1 UTP-E-C5G-E1ZN-X 0.5X004P/BL Category 5e U/UTP 4Pair LSZH 332-3 UTP-E-C5G-E1ZN-M 0.5X004P/BL Category 5e U/UTP 4Pair CMX UTP-E-C5G-E1VN-X 0.5X004P/GY Category 5e U/UTP 4Pair CM UTP-E-C5G-E1VN-M 0.5X004P/GY Category 5e U/UTP 4Pair CMR UTP-E-C5G-E1VN-R 0.5X004P/GY Category 5e U/UTP 4Pair CMP UTP-E-C5G-F1VN-P 0.5X004P/GY Category 5e U/UTP 4Pair LSZH 332-1 UTP-E-C5G-E1ZN-X 0.5X004P/GY Category 5e U/UTP 4Pair LSZH 332-3 UTP-E-C5G-E1ZN-M 0.5X004P/GY Category 5e U/UTP 4Pair CMX UTP-E-C5G-E1VN-X 0.5X004P/VI Category 5e U/UTP 4Pair CM UTP-E-C5G-E1VN-M 0.5X004P/VI Category 5e U/UTP 4Pair CMR UTP-E-C5G-E1VN-R 0.5X004P/VI Category 5e U/UTP 4Pair CMP UTP-E-C5G-F1VN-P 0.5X004P/VI Category 5e U/UTP 4Pair LSZH 332-1 UTP-E-C5G-E1ZN-X 0.5X004P/VI Category 5e U/UTP 4Pair LSZH 332-3 UTP-E-C5G-E1ZN-M 0.5X004P/VI Category 5e U/UTP 4Pair CMX UTP-E-C5G-E1VN-X 0.5X004P/OR Category 5e U/UTP 4Pair CM UTP-E-C5G-E1VN-M 0.5X004P/OR Category 5e U/UTP 4Pair CMR UTP-E-C5G-E1VN-R 0.5X004P/OR Category 5e U/UTP 4Pair CMP UTP-E-C5G-F1VN-P 0.5X004P/OR Category 5e U/UTP 4Pair LSZH 332-1 UTP-E-C5G-E1ZN-X 0.5X004P/OR Category 5e U/UTP 4Pair LSZH 332-3 UTP-E-C5G-E1ZN-M 0.5X004P/OR Category 5e U/UTP 4Pair CMX UTP-E-C5G-E1VN-X 0.5X004P/RD Category 5e U/UTP 4Pair CM UTP-E-C5G-E1VN-M 0.5X004P/RD Category 5e U/UTP 4Pair CMR UTP-E-C5G-E1VN-R 0.5X004P/RD Category 5e U/UTP 4Pair CMP UTP-E-C5G-F1VN-P 0.5X004P/RD Category 5e U/UTP 4Pair LSZH 332-1 UTP-E-C5G-E1ZN-X 0.5X004P/RD Category 5e U/UTP 4Pair LSZH 332-3 UTP-E-C5G-E1ZN-M 0.5X004P/RD Category 5e U/UTP 4Pair CMX UTP-E-C5G-E1VN-X 0.5X004P/GN Category 5e U/UTP 4Pair CM UTP-E-C5G-E1VN-M 0.5X004P/GN Category 5e U/UTP 4Pair CMR UTP-E-C5G-E1VN-R 0.5X004P/GN Category 5e U/UTP 4Pair CMP UTP-E-C5G-F1VN-P 0.5X004P/GN Category 5e U/UTP 4Pair LSZH 332-1 UTP-E-C5G-E1ZN-X 0.5X004P/GN Category 5e U/UTP 4Pair LSZH 332-3 UTP-E-C5G-E1ZN-M 0.5X004P/GN Category 5e U/UTP 4Pair CMX UTP-E-C5G-E1VN-X 0.5X004P/YL Category 5e U/UTP 4Pair CM UTP-E-C5G-E1VN-M 0.5X004P/YL Category 5e U/UTP 4Pair CMR UTP-E-C5G-E1VN-R 0.5X004P/YL Category 5e U/UTP 4Pair CMP UTP-E-C5G-F1VN-P 0.5X004P/YL Category 5e U/UTP 4Pair LSZH 332-1 UTP-E-C5G-E1ZN-X 0.5X004P/YL Category 5e U/UTP 4Pair LSZH 332-3 UTP-E-C5G-E1ZN-M 0.5X004P/YL Category 5e U/UTP 4Pair CMX UTP-E-C5G-E1VN-X 0.5X004P/BK Category 5e U/UTP 4Pair CM UTP-E-C5G-E1VN-M 0.5X004P/BK Category 5e U/UTP 4Pair CMR UTP-E-C5G-E1VN-R 0.5X004P/BK Category 5e U/UTP 4Pair CMP UTP-E-C5G-F1VN-P 0.5X004P/BK Category 5e U/UTP 4Pair LSZH 332-1 UTP-E-C5G-E1ZN-X 0.5X004P/BK Category 5e U/UTP 4Pair LSZH 332-3 UTP-E-C5G-E1ZN-M 0.5X004P/BK
- APPLICATION
- · Horizontal Distribution & Backbone Cabling
· 4/16Mbps Token Ring (IEEE 802.5)
· 10/100/1000 BASE-T (IEEE 802.3)
· 155Mbps ATM
· 100Mbps TP-PMD
· ISDN, ADSL
- TECHNICAL DETAILS
-
Characteristics units Cat.5e DC Resistance Ω/100m ≤ 9.38 DC Resistance Unbalance % ≤ 5.00 Mutual Capacitance nF/100m ≤ 5.60 Capacitance Unbalance (Pair to Ground)
pF/100m ≤ 330 Insulation Resistance MΩ-100m ≥ 500 Dielectric Strength DC kV/sec 2.5 / 2 Impedance (Characteristic mean)
Ω 100 ± 15% (1 ≤ f ≤ 100MHz) Return Loss dB/100m ≥ 20 + 5 * log(freq) 1 ≤ f < 10MHz ≥ 25 10 ≤ f < 20MHz
≥ 25 – 7 * log(freq/20) 20 ≤ f ≤ 100MHz
Attenuation (Insertion Loss)
dB/100m ≤ 1.967*√(freq) + 0.023*(freq) + 0.05/√(freq) 1 ~ 100 MHz
NEXT Loss dB/100m ≥ 35.3 – 15*log(freq/100) , 1 < f ≤ 100MHz Power sum NEXT Loss dB/100m ≥ 32.3 – 15*log(freq/100) , 1 < f ≤ 100MHz ELFEXT Loss dB/100m ≥ 23.8 – 20*log(freq/100) , 1 ~ 100MHz Power sum ELFEXT Loss dB/100m ≥ 20.8 – 20*log(freq/100) , 1 ~ 100MHz Propagation Delay ns/100m ≤ 534 + 36 / √ (Freq) , 1 ~ 100MHz Propagation Delay Skew ns/100m ≤ 45
| Freq. (MHz) |
Attenuation (dB/100m) Max. |
NEXT (dB/100m) Min. |
PSNEXT (dB/100m) Min. |
ELFEXT (dB/100m) Min. |
PSELFEXT (dB/100m) Min. |
RL (dB/100m) Min. |
P.Delay (ns/100m) Max. |
| 1 | 2 | 65.3 | 62.3 | 63.8 | 60.8 | 20 | 570 |
| 4 | 4.1 | 56.3 | 53.3 | 51.8 | 48.8 | 23 | 552 |
| 8 | 5.8 | 51.8 | 48.8 | 45.7 | 42.7 | 24.5 | 547 |
| 10 | 6.5 | 50.3 | 47.3 | 43.8 | 40.8 | 25 | 545 |
| 16 | 8.2 | 47.2 | 44.2 | 39.7 | 36.7 | 25 | 543 |
| 20 | 9.3 | 45.8 | 42.8 | 37.8 | 34.8 | 25 | 542 |
| 25 | 10.4 | 44.3 | 41.3 | 35.8 | 32.8 | 24.3 | 541 |
| 31.25 | 11.7 | 42.9 | 39.9 | 33.9 | 30.9 | 23.6 | 540 |
| 62.5 | 17 | 38.4 | 35.4 | 27.9 | 24.9 | 21.5 | 539 |
| 100 | 22 | 35.3 | 32.3 | 23.8 | 20.8 | 20.1 | 538 |
