Dây Cáp Điều Khiển LAPP KABEL ÖLFLEX® 127 HSLH , -40°C to +80°C , Grey | Chính Hãng – Giá Tốt Nhất
Hãng sản xuất: LAPP KABEL
Xuất xứ thương hiệu: Germany
(Giấy tờ nhập khẩu: CO,CQ,BIL,PACKING LIST, TỜ KHAI đầy đủ)
Dây cáp điện và điều khiển tín hiệu LAPP KABEL ÖLFLEX® 127 HSLH được sử dụng Dây dẫn mảnh làm từ các sợi đồng trần, Lớp cách điện lõi: Không chứa halogen, Các lõi được xoắn thành nhiều lớp, Vỏ ngoài: Hợp chất đặc biệt không chứa halogen, màu xám (tương tự RAL 7001). Chống cháy theo tiêu chuẩn IEC 60332-1-2 (lan truyền ngọn lửa trên một dây cáp đơn), Không lan truyền ngọn lửa theo tiêu chuẩn IEC 60332-3-22 và IEC 60332-3-24 tương ứng IEC 60332-3-25 (Lan truyền ngọn lửa trên dây cáp hoặc bó dây thẳng đứng), Không chứa halogen theo tiêu chuẩn IEC 60754-1 (lượng khí axit halogen), Tính ăn mòn của khí thải theo tiêu chuẩn IEC 60754-2 (độ axit), Mật độ khói thấp theo tiêu chuẩn IEC 61034-2, Độc tính theo tiêu chuẩn NES 713-3 và EN 50306-1.

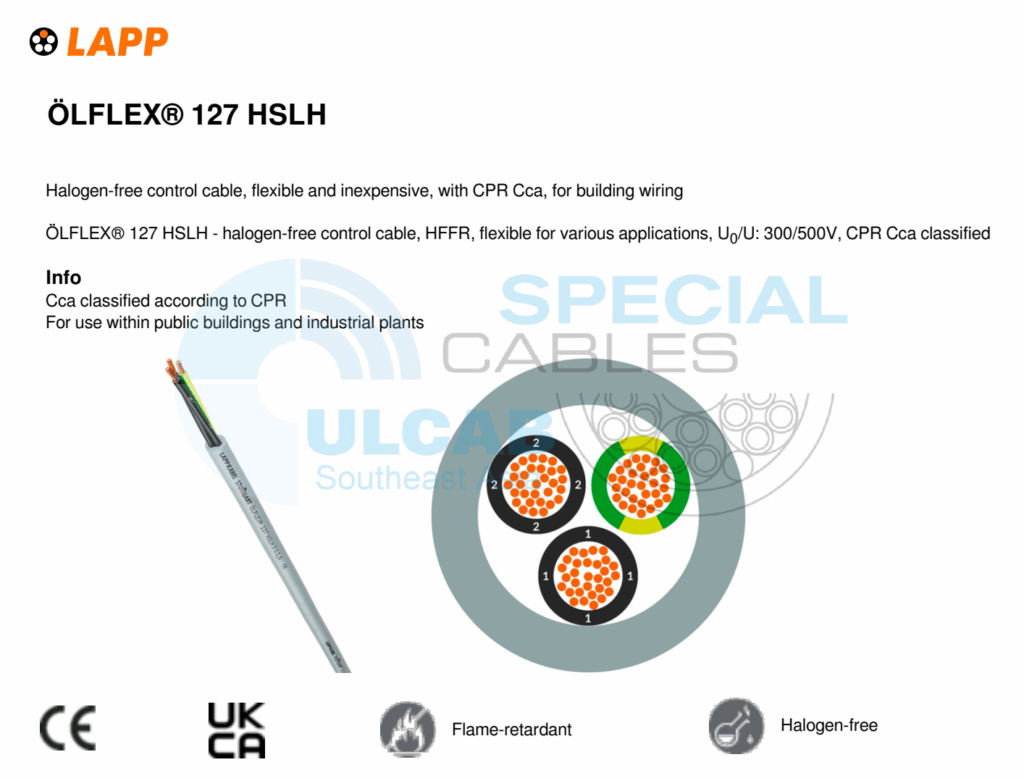

ÖLFLEX® 127 HSLH
Halogen-free control cable, flexible and inexpensive, with CPR Cca, for building wiring
ÖLFLEX® 127 HSLH – halogen-free control cable, HFFR, flexible for various applications, U0/U: 300/500V, CPR Cca classified
- Cca classified according to CPR
- For use within public buildings and industrial plants
- CPR: Article number choice under www.lappkabel.com/cpr
Benefits
- Easy handling and installation due to flexible design
- Halogen-free and highly flame-retardant materials reduce the risk of fire propagation, high smoke density and toxic fumes in case of fire
- Classified fire behavior according to EU Directive 305/2011 (CPR) with article number selection under www.lappkabel.com/cpr
- High electrical performance due to 4 kV test voltage
Application range
- Public buildings like airports or railway stations
- Plant engineering, Industrial machinery
Heating and air-conditioning systems
Stage applications - Intended for use under the European Construction Product Regulation (CPR), refer to catalogue appendix T14
- Particularly where human and animal life as well as valuable property are exposed to high risk of fire hazards
Product features
- Flame-retardant according to IEC 60332-1-2
(flame spread on a single cable) - No flame-propagation according to IEC 60332-3-22 and IEC 60332-3-24 respectively IEC 60332-3-25 (Flame spread on vertical cable or wire bundle)
- Halogen-free according to IEC 60754-1
(amount of halogen acid gas)
Corrosiveness of combustion gases according to IEC 60754-2 (degree of acidity) - Low smoke density according to IEC 61034-2
- Toxicity according to NES 713-3 and EN 50306-1
Norm references / Approvals
- Based on EN 50525-3-11
- Based on EN 50525-2-51
Product Make-up
- Fine-wire strand made of bare copper wires
- Core insulation: Halogen-free
- Cores twisted in layers
- Outer sheath: Special halogen-free compound, grey (similar to RAL 7001)
Technical Data
Classification ETIM 5
- ETIM 5.0 Class-ID: EC000104
- ETIM 5.0 Class-Description: Control cable
Classification ETIM 6
- ETIM 6.0 Class-ID: EC000104
- ETIM 6.0 Class-Description: Control cable
Core identification code
- Black with white numbers acc. to VDE 0293-334
Conductor stranding
- Fine wire according to VDE 0295,
class 5/IEC 60228 class 5
Minimum bending radius
- Occasional flexing: 15 x outer diameter
- Fixed installation: 4 x outer diameter
Nominal voltage
- U0/U: 300/500 V
Test voltage
- 4000 V
Protective conductor
- G = with GN-YE protective conductor
- X = without protective conductor
Temperature range
- Occasional flexing: -5°C to +70°C
- Fixed installation: -40°C to +80°C
| Article number | Number of cores and mm² per conductor | Outer diameter [mm] | Copper index (kg/km) | Weight (kg/km) | |
|---|---|---|---|---|---|
|
1127408
|
2 X 0.75 | 5.5 | 14.4 | 43 | |
|
1127409
|
3 G 0.75 | 5.8 | 21.6 | 53 | |
|
1127413
|
5 G 0.75 | 6.9 | 36 | 80 | |
|
1127415
|
7 G 0.75 | 7.5 | 50.4 | 101 | |
|
1127417
|
12 G 0.75 | 10.1 | 86.4 | 181 | |
|
1127418
|
18 G 0.75 | 12.0 | 129.6 | 263 | |
|
1127420
|
2 X 1.0 | 5.8 | 19.2 | 51 | |
|
1127421
|
3 G 1.0 | 6.1 | 28.8 | 63 | |
|
1127423
|
4 G 1.0 | 6.6 | 38.4 | 78 | |
|
1127425
|
5 G 1.0 | 7.3 | 48 | 96 | |
|
1127426
|
7 G 1.0 | 8.1 | 67.2 | 126 | |
|
1127427
|
12 G 1.0 | 10.7 | 115.2 | 220 | |
|
1127428
|
18 G 1.0 | 12.9 | 172.8 | 325 | |
|
1127429
|
2 X 1.5 | 6.4 | 28.8 | 67 | |
|
1127430
|
3 G 1.5 | 6.8 | 43.2 | 85 | |
|
1127432
|
4 G 1.5 | 7.4 | 57.6 | 106 | |
|
1127433
|
5 G 1.5 | 8.3 | 72 | 134 | |
|
1127434
|
7 G 1.5 | 9.0 | 100.8 | 172 | |
|
1127435
|
12 G 1.5 | 12.2 | 172.8 | 307 | |
|
1127436
|
3 G 2.5 | 8.3 | 72 | 133 | |
|
1127437
|
4 G 2.5 | 9.0 | 96 | 167 | |
|
1127438
|
5 G 2.5 | 10.1 | 120 | 210 | |
|
1127440
|
4 G 4.0 | 10.8 | 153.6 | 254 | |
|
1127441
|
5 G 4.0 | 12.1 | 192 | 318 | |
|
1127442
|
4 G 6.0 | 13.0 | 230.4 | 375 | |
|
1127443
|
5 G 6.0 | 14.5 | 288 | 468 | |
|
1127445
|
5 G 10.0 | 18.1 | 480 | 757 | |
|
1127447
|
5 G 16.0 | 21.2 | 768 | 1112 | |
|
1127449
|
5 G 25.0 | 26.4 | 1200 | 1711 |
