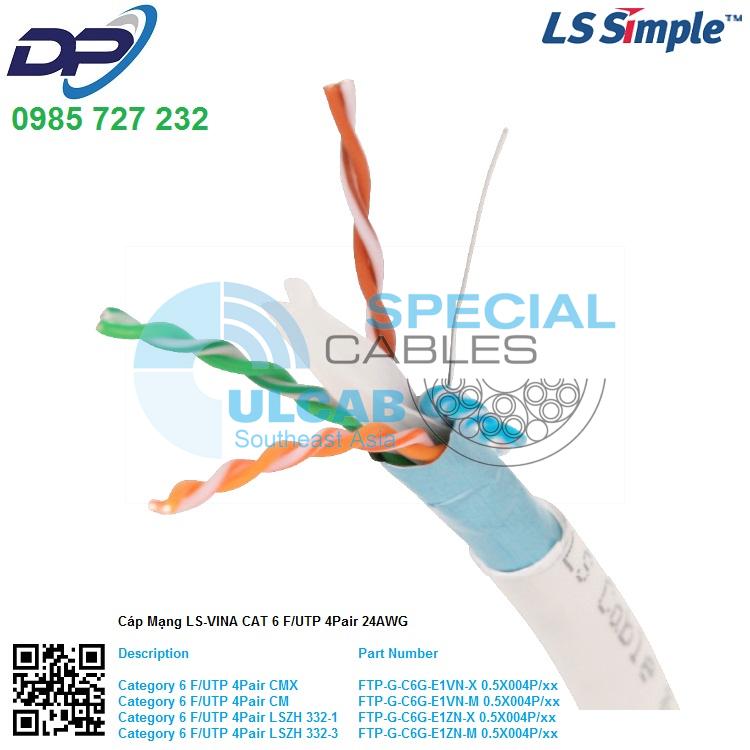

Cáp Mạng LS VINA CAT6 F/UTP 4Pair LSZH 332-1 – White ( FTP-G-C6G-E1ZN-X 0.5X004P/WH )
CATEGORY 6 CABLE
F/UTP CAT.6
- DESCRIPTION
- · Cable diameter: 0.283in. (7.2mm)
· Capable of handling full broadband and baseband video signals
· Comply with ANSI/TIA-568-C.2
· Specialized print legend contains footage or metric or dual marking
· Wooden reel is standard, so wire pulls through reel for easy access
· RoHS compliant
· Qualifies for the LS 25-year extended Product Warranty and Applications Assurance when included as part of a registered LS Category 6 Channel
· Copper cable design & process technology electrical performance simulation by using internal coding program based on transmission line theory process improvement and facility maintain with internal production technology R&D center.
- PART LISTS
-
Description Part Number Category 6 F/UTP 4Pair CMX FTP-G-C6G-E1VN-X 0.5X004P/WH Category 6 F/UTP 4Pair CM FTP-G-C6G-E1VN-M 0.5X004P/WH Category 6 F/UTP 4Pair LSZH 332-1 FTP-G-C6G-E1ZN-X 0.5X004P/WH Category 6 F/UTP 4Pair LSZH 332-3 FTP-G-C6G-E1ZN-M 0.5X004P/WH Category 6 F/UTP 4Pair CMX FTP-G-C6G-E1VN-X 0.5X004P/BL Category 6 F/UTP 4Pair CM FTP-G-C6G-E1VN-M 0.5X004P/BL Category 6 F/UTP 4Pair LSZH 332-1 FTP-G-C6G-E1ZN-X 0.5X004P/BL Category 6 F/UTP 4Pair LSZH 332-3 FTP-G-C6G-E1ZN-M 0.5X004P/BL Category 6 F/UTP 4Pair CMX FTP-G-C6G-E1VN-X 0.5X004P/GY Category 6 F/UTP 4Pair CM FTP-G-C6G-E1VN-M 0.5X004P/GY Category 6 F/UTP 4Pair LSZH 332-1 FTP-G-C6G-E1ZN-X 0.5X004P/GY Category 6 F/UTP 4Pair LSZH 332-3 FTP-G-C6G-E1ZN-M 0.5X004P/GY Category 6 F/UTP 4Pair CMX FTP-G-C6G-E1VN-X 0.5X004P/GN Category 6 F/UTP 4Pair CM FTP-G-C6G-E1VN-M 0.5X004P/GN Category 6 F/UTP 4Pair LSZH 332-1 FTP-G-C6G-E1ZN-X 0.5X004P/GN Category 6 F/UTP 4Pair LSZH 332-3 FTP-G-C6G-E1ZN-M 0.5X004P/GN Category 6 F/UTP 4Pair CMX FTP-G-C6G-E1VN-X 0.5X004P/OR Category 6 F/UTP 4Pair CM FTP-G-C6G-E1VN-M 0.5X004P/OR Category 6 F/UTP 4Pair LSZH 332-1 FTP-G-C6G-E1ZN-X 0.5X004P/OR Category 6 F/UTP 4Pair LSZH 332-3 FTP-G-C6G-E1ZN-M 0.5X004P/OR Category 6 F/UTP 4Pair CMX FTP-G-C6G-E1VN-X 0.5X004P/VI Category 6 F/UTP 4Pair CM FTP-G-C6G-E1VN-M 0.5X004P/VI Category 6 F/UTP 4Pair LSZH 332-1 FTP-G-C6G-E1ZN-X 0.5X004P/VI Category 6 F/UTP 4Pair LSZH 332-3 FTP-G-C6G-E1ZN-M 0.5X004P/VI Category 6 F/UTP 4Pair CMX FTP-G-C6G-E1VN-X 0.5X004P/YL Category 6 F/UTP 4Pair CM FTP-G-C6G-E1VN-M 0.5X004P/YL Category 6 F/UTP 4Pair LSZH 332-1 FTP-G-C6G-E1ZN-X 0.5X004P/YL Category 6 F/UTP 4Pair LSZH 332-3 FTP-G-C6G-E1ZN-M 0.5X004P/YL Category 6 F/UTP 4Pair CMX FTP-G-C6G-E1VN-X 0.5X004P/BK Category 6 F/UTP 4Pair CM FTP-G-C6G-E1VN-M 0.5X004P/BK Category 6 F/UTP 4Pair LSZH 332-1 FTP-G-C6G-E1ZN-X 0.5X004P/BK Category 6 F/UTP 4Pair LSZH 332-3 FTP-G-C6G-E1ZN-M 0.5X004P/BK Category 6 F/UTP 4Pair CMX FTP-G-C6G-E1VN-X 0.5X004P/RD Category 6 F/UTP 4Pair CM FTP-G-C6G-E1VN-M 0.5X004P/RD Category 6 F/UTP 4Pair LSZH 332-1 FTP-G-C6G-E1ZN-X 0.5X004P/RD Category 6 F/UTP 4Pair LSZH 332-3 FTP-G-C6G-E1ZN-M 0.5X004P/RD
- APPLICATION
- · Horizontal Distribution & Backbone Cabling
· 4/16Mbps Token Ring (IEEE 802.5)
· 10/100/1000 BASE-T (IEEE 802.3)
· 155Mbps ATM
· 100Mbps TP-PMD
· ISDN, ADSL
· ATM LAN 1.2G
- TECHNICAL DETAILS
-
Characteristics units Specification DC Resistance Ω/100m ≤ 9.5 DC Resistance Unbalance % ≤ 2.00 Capacitance Unbalance (Pair to Ground)
pF/km (800~1000Hz)
≤ 1600 Insulation Resistance MΩ·m ≥ 5000 Dielectric Strength DC kV/sec 2.5 / 2 Impedance (Characteristic mean)
Ω 100 ± 5% (at 100MHz) Return Loss dB/100m ≥ 20 + 5 * log(freq) , 4 ≤ f ＜ 10MHz ≥ 25 , 10 ≤ f ＜ 20MHz
≥ 25 – 7 * log(freq/20) , 20 ≤ f ≤ 250MHz
Attenuation (Insertion Loss)
dB/100m ≤ 1.82*√(freq) + 0.0169*(freq) + 0.25/√(freq) , 4 ~ 250 MHz
NEXT Loss dB/100m ≥ 75.3 – 15*log(freq) ,4 ~ 250MHz Power sum NEXT Loss dB/100m ≥ 72.3 – 15*log(freq) ,4 ~ 250MHz ELFEXT Loss dB/100m ≥ 68 – 20*log(freq) ,4 ~ 250MHz Power sum ELFEXT Loss dB/100m ≥ 65 – 20*log(freq) ,4 ~ 250MHz Propagation Delay ns/100m ≤ 534 + 36 / √ (Freq) ,4 ~ 250MHz Propagation Delay Skew ns/100m ≤ 45, 4 ~ 250MHz
| Freq. (MHz) |
Attenuation (dB/100m) Max. |
NEXT (dB/100m) Min. |
PSNEXT (dB/100m) Min. |
ELFEXT (dB/100m) Min. |
PSELFEXT (dB/100m) Min. |
RL (dB/100m) Min. |
P.Delay (ns/100m) Max. |
| 4 | 3.8 | 66.3 | 63.3 | 56 | 53 | 23 | 552 |
| 8 | 5.4 | 61.8 | 58.8 | 49.9 | 46.9 | 24.5 | 547 |
| 10 | 6 | 60.3 | 57.3 | 48 | 45 | 25 | 545 |
| 16 | 7.6 | 57.2 | 54.2 | 43.9 | 40.9 | 25 | 543 |
| 20 | 8.5 | 55.8 | 52.8 | 42 | 39 | 25 | 542 |
| 25 | 9.6 | 54.3 | 51.3 | 40 | 37 | 24.3 | 541 |
| 31.25 | 10.8 | 52.9 | 49.9 | 38.1 | 35.1 | 23.6 | 540 |
| 62.5 | 15.5 | 48.4 | 45.4 | 32.1 | 29.1 | 21.5 | 539 |
| 100 | 19.9 | 45.3 | 42.3 | 28 | 25 | 20.1 | 538 |
| 155 | 25.3 | 42.4 | 39.4 | 24.2 | 21.2 | 18.8 | 537 |
| 200 | 29.1 | 40.8 | 37.8 | 22 | 19 | 18 | 537 |
| 250 | 33 | 39.3 | 36.3 | 20 | 17 | 17.3 | 536 |
