Power and control cables
Various applications
PVC outer sheath and numbered cores

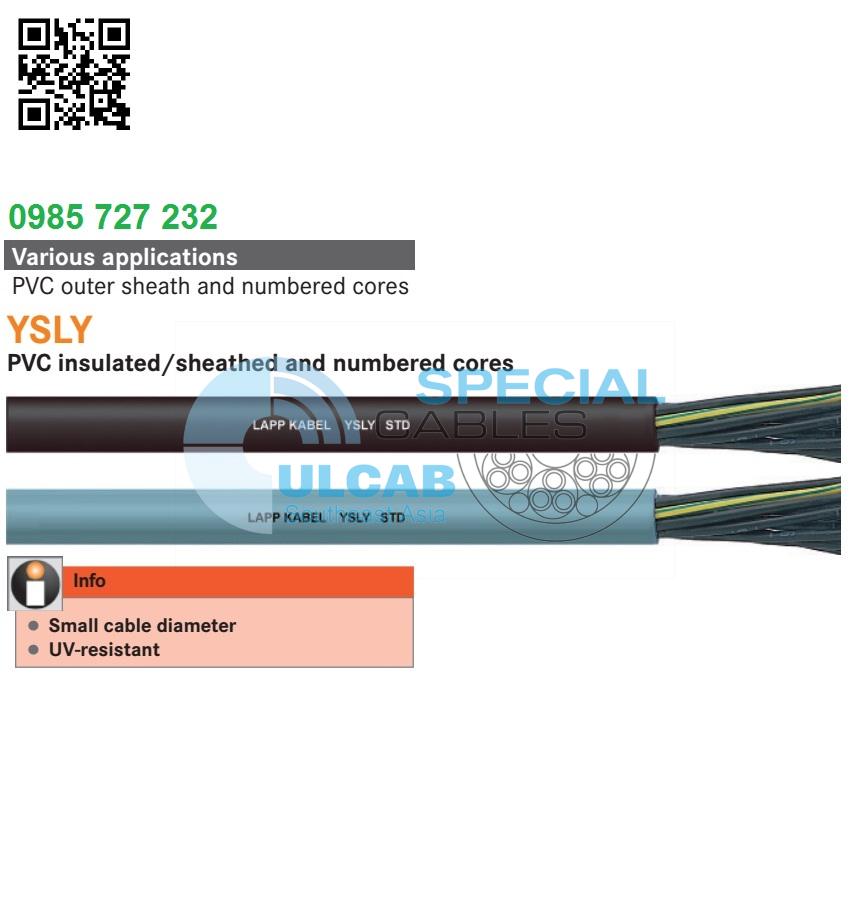

LAPPKABEL ÖLFLEX® YSLY

PVC insulated/sheathed and numbered cores

Info

  • Small cable diameter
  • UV-resistant

Benefits

  • Space saving due to small cable diameter
  • Economic solution for basic application

Application range

  • Used as a connection cable for measuring, monitoring and control connections in indus trial machineries, heating and air refrigeration systems, office equipment, etc.
  • Dry or damp interiors under medium me chanical load conditions
  • Fixed installations as well as for occasional flexing at free, non-continuously recurring movement without tensile load

Product features

  • Flame-retardant acc. to IEC 60332-1-2
  • UV resistant can be used outdoor
  • With or without protective conductor gn/ye

Approvals (Norm references)

Design

  • Fine strands of bare copper wires
  • PVC core insulation
  • Core twisted in layers
  • PVC outer sheath, grey or black
  • MOQ may apply for certain sizes



Technical data

Core identification code
Black core with white numbers
Based on
IEC 60227
Specific insulation resistance
> 20 GOhm x cm
Conductor stranding
Fine wire acc. to IEC 60228 Cl.5
Minimum bending radius
Occasional flexing: 20 x outer diameter
Fixed installation: 10 x outer diameter
Nominal voltage
U0/U: 300/500 V

Test voltage
2000 V
Protective conductor
G = with protective conductor GN/YE
X = without protective conductor
Temperature range
Fixed installation: -20°C to +70°C

Article
number
Number of
cores and mm²
per conductor
Outer diameter
(mm)
Colour  Copper index
(kg/km)
Weight (kg/km)
Grey
3802002 2 X0.75  5,4 grey  14,4 50
3802003 3 G0.75  5,7 grey  21,6 59
3802004 4 G0.75  6,2 grey  28,8 71
3802005 5 G0.75  6,7 grey  36 86
3802007 7 G0.75  7,3 grey  50,4 104
3802010 10 G0.75  9,6 grey  72 156
3802012 12 G0.75  9,9 grey  86,4 178
3802015 15 G0.75  11,1 grey  108 231
3802016 16 G0.75  11,1 grey  115,2 239
3802018 18 G0.75  11,7 grey  129,6 254
3802021 21 G0.75  13 grey  151,2 301
3802025 25 G0.75  13,8 grey  180 351
3802041 41 G0.75  17,3 grey  295,2 560
3802052 2 X1.0  5,7 grey  19,2 58
3802053 3 G1.0  6 grey  28,8 70
3802054 4 G1.0  6,5 grey  38,4 84
3802055 5 G1.0  7,2 grey  48 101
3802057 7 G1.0  8 grey  67,2 132
3802062 12 G1.0  10,5 grey  115,2 214
3802066 16 G1.0  11,8 grey  153,6 272
3802068 18 G1.0  12,7 grey  172,8 303
3802075 25 G1.0  14,7 grey  240 410
3802102 2 X1.5  6,3 grey  28,8 71
3802103 3 G1.5  6,7 grey  43,2 87
3802104 4 G1.5  7,2 grey  57,6 106
3802105 5 G1.5  8,1 grey  72 133
3802107 7 G1.5  8,9 grey  100,8 171
3802108 8 G1.5  10 grey  115,2 218
3802109 9 G1.5  10,7 grey  129,6 256
3802112 12 G1.5  11,4 grey  172,8 285
3802114 14 G1.5  12,6 grey  201,6 329
3802118 18 G1.5  14,4 grey  259,2 429
3802121 21 G1.5  15,7 grey  302,4 479
3802125 25 G1.5  16,9 grey  360 560
3802153 3 G2.5  8,1 grey  72 135
3802154 4 G2.5  8,9 grey  96 166
3802155 5 G2.5  10 grey  120 208
3802162 12 G2.5  14,8 grey  288 438
3802157 7 G2.5  11,1 grey  168 269
3802168 18 G2.5  17,8 grey  432 661
3802543 3 G4  9,9 grey  115,2 201
3802544 4 G4  10,8 grey  153,6 249
3802553 3 G6  11,8 grey  172,8 289
3802554 4 G6  13 grey  230,4 365
3802564 4 G10  16,2 grey  384 590
3802574 4 G16  18,9 grey  614,4 1087
3802584 4 G25  23,5 grey  960 1582
Black
3802002B  2 X0.75  5,4 black  14,4 50
3802003B  3 G0.75  5,7 black  21,6 59
3802004B  4 G0.75  6,2 black  28,8 71
3802005B  5 G0.75  6,7 black  36 86
3802007B  7 G0.75  7,3 black  50,4 104
3802010B  10 G0.75  9,6 black  72 156
3802012B  12 G0.75  9,9 black  86,4 178
3802015B  15 G0.75  11,1 black  108 231
3802018B  18 G0.75  11,7 black  129,6 254
3802021B  21 G0.75  13 black  151,2 301
3802025B  25 G0.75  13,8 black  180 351
3802041B  41 G0.75  17,3 black  295,2 560
3802052B  2 X1.0  5,7 black  19,2 58
3802053B  3 G1.0  6 black  28,8 70
3802054B  4 G1.0  6,5 black  38,4 84
3802055B  5 G1.0  7,2 black  48 101
3802057B  7 G1.0  8 black  67,2 132
3802062B  12 G1.0  10,5 black  115,2 214
3802016B  16 G0.75  11,1 black  115,2 239
3802066B  16 G1.0  11,8 black  153,6 272
3802068B  18 G1.0  12,7 black  172,8 303
3802075B  25 G1.0  14,7 black  240 410
3802102B  2 X1.5  6,3 black  28,8 71
3802103B  3 G1.5  6,7 black  43,2 87
3802104B  4 G1.5  7,2 black  57,6 106
3802105B  5 G1.5  8,1 black  72 133
3802107B  7 G1.5  8,9 black  100,8 171
3802108B  8 G1.5  10 black  115,2 218
3802109B  9 G1.5  10,7 black  129,6 256
3802112B  12 G1.5  11,4 black  172,8 285
3802114B  14 G1.5  12,6 black  201,6 329
3802118B  18 G1.5  14,4 black  259,2 429
3802121B  21 G1.5  15,7 black  302,4 479
3802125B  25 G1.5  16,9 black  360 560
3802153B  3 G2.5  8,1 black  72 135
3802154B  4 G2.5  8,9 black  96 166
3802155B  5 G2.5  10 black  120 208
3802162B  12 G2.5  14,8 black  288 438
3802157B  7 G2.5  11,1 black  168 269
3802168B  18 G2.5  17,8 black  432 661
