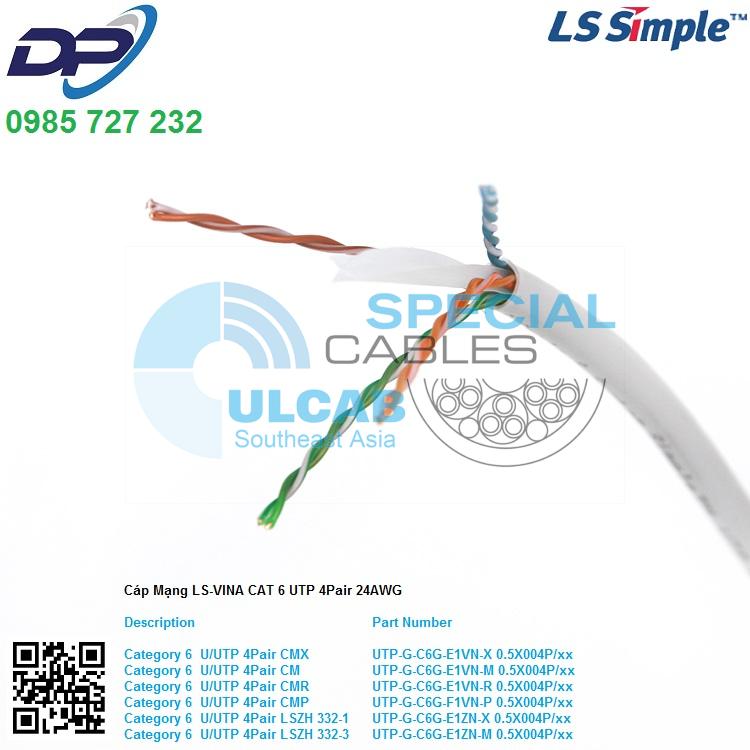

Cáp Mạng LS VINA CAT6 U/UTP 4Pair CMX – White ( UTP-G-C6G-E1VN-X 0.5X004P/WH )
CATEGORY 6 CABLE
U/UTP CAT.6
- DESCRIPTION
- · ETL, EC Verified, UL Listed
· Capable of handling full broadband and baseband video signals
· High flame retardant grade of the cable (Plenum Cable)
· Comply with ANSI/TIA-568-C.2
· Specialized print legend contains footage or metric or dual marking
· Reelex & Reel in a Box is standard, so wire pulls through box opening for easy access
· RoHS compliant
· Qualifies for the LS 25-year extended Product Warranty and Applications Assurance when included as part of a registered LS Category 6 Channel
- PART LISTS
-
Description Part Number Category 6 U/UTP 4Pair CMX UTP-G-C6G-E1VN-X 0.5X004P/WH Category 6 U/UTP 4Pair CM UTP-G-C6G-E1VN-M 0.5X004P/WH Category 6 U/UTP 4Pair CMR UTP-G-C6G-E1VN-R 0.5X004P/WH Category 6 U/UTP 4Pair CMP UTP-G-C6G-F1VN-P 0.5X004P/WH Category 6 U/UTP 4Pair LSZH 332-1 UTP-G-C6G-E1ZN-X 0.5X004P/WH Category 6 U/UTP 4Pair LSZH 332-3 UTP-G-C6G-E1ZN-M 0.5X004P/WH Category 6 U/UTP 4Pair CMX UTP-G-C6G-E1VN-X 0.5X004P/BL Category 6 U/UTP 4Pair CM UTP-G-C6G-E1VN-M 0.5X004P/BL Category 6 U/UTP 4Pair CMR UTP-G-C6G-E1VN-R 0.5X004P/BL Category 6 U/UTP 4Pair CMP UTP-G-C6G-F1VN-P 0.5X004P/BL Category 6 U/UTP 4Pair LSZH 332-1 UTP-G-C6G-E1ZN-X 0.5X004P/BL Category 6 U/UTP 4Pair LSZH 332-3 UTP-G-C6G-E1ZN-M 0.5X004P/BL Category 6 U/UTP 4Pair CMX UTP-G-C6G-E1VN-X 0.5X004P/GY Category 6 U/UTP 4Pair CM UTP-G-C6G-E1VN-M 0.5X004P/GY Category 6 U/UTP 4Pair CMR UTP-G-C6G-E1VN-R 0.5X004P/GY Category 6 U/UTP 4Pair CMP UTP-G-C6G-F1VN-P 0.5X004P/GY Category 6 U/UTP 4Pair LSZH 332-1 UTP-G-C6G-E1ZN-X 0.5X004P/GY Category 6 U/UTP 4Pair LSZH 332-3 UTP-G-C6G-E1ZN-M 0.5X004P/GY Category 6 U/UTP 4Pair CMX UTP-G-C6G-E1VN-X 0.5X004P/GN Category 6 U/UTP 4Pair CM UTP-G-C6G-E1VN-M 0.5X004P/GN Category 6 U/UTP 4Pair CMR UTP-G-C6G-E1VN-R 0.5X004P/GN Category 6 U/UTP 4Pair CMP UTP-G-C6G-F1VN-P 0.5X004P/GN Category 6 U/UTP 4Pair LSZH 332-1 UTP-G-C6G-E1ZN-X 0.5X004P/GN Category 6 U/UTP 4Pair LSZH 332-3 UTP-G-C6G-E1ZN-M 0.5X004P/GN Category 6 U/UTP 4Pair CMX UTP-G-C6G-E1VN-X 0.5X004P/VI Category 6 U/UTP 4Pair CM UTP-G-C6G-E1VN-M 0.5X004P/VI Category 6 U/UTP 4Pair CMR UTP-G-C6G-E1VN-R 0.5X004P/VI Category 6 U/UTP 4Pair CMP UTP-G-C6G-F1VN-P 0.5X004P/VI Category 6 U/UTP 4Pair LSZH 332-1 UTP-G-C6G-E1ZN-X 0.5X004P/VI Category 6 U/UTP 4Pair LSZH 332-3 UTP-G-C6G-E1ZN-M 0.5X004P/VI Category 6 U/UTP 4Pair CMX UTP-G-C6G-E1VN-X 0.5X004P/OR Category 6 U/UTP 4Pair CM UTP-G-C6G-E1VN-M 0.5X004P/OR Category 6 U/UTP 4Pair CMR UTP-G-C6G-E1VN-R 0.5X004P/OR Category 6 U/UTP 4Pair CMP UTP-G-C6G-F1VN-P 0.5X004P/OR Category 6 U/UTP 4Pair LSZH 332-1 UTP-G-C6G-E1ZN-X 0.5X004P/OR Category 6 U/UTP 4Pair LSZH 332-3 UTP-G-C6G-E1ZN-M 0.5X004P/OR Category 6 U/UTP 4Pair CMX UTP-G-C6G-E1VN-X 0.5X004P/RD Category 6 U/UTP 4Pair CM UTP-G-C6G-E1VN-M 0.5X004P/RD Category 6 U/UTP 4Pair CMR UTP-G-C6G-E1VN-R 0.5X004P/RD Category 6 U/UTP 4Pair CMP UTP-G-C6G-F1VN-P 0.5X004P/RD Category 6 U/UTP 4Pair LSZH 332-1 UTP-G-C6G-E1ZN-X 0.5X004P/RD Category 6 U/UTP 4Pair LSZH 332-3 UTP-G-C6G-E1ZN-M 0.5X004P/RD Category 6 U/UTP 4Pair CMX UTP-G-C6G-E1VN-X 0.5X004P/YL Category 6 U/UTP 4Pair CM UTP-G-C6G-E1VN-M 0.5X004P/YL Category 6 U/UTP 4Pair CMR UTP-G-C6G-E1VN-R 0.5X004P/YL Category 6 U/UTP 4Pair CMP UTP-G-C6G-F1VN-P 0.5X004P/YL Category 6 U/UTP 4Pair LSZH 332-1 UTP-G-C6G-E1ZN-X 0.5X004P/YL Category 6 U/UTP 4Pair LSZH 332-3 UTP-G-C6G-E1ZN-M 0.5X004P/YL Category 6 U/UTP 4Pair CMX UTP-G-C6G-E1VN-X 0.5X004P/BK Category 6 U/UTP 4Pair CM UTP-G-C6G-E1VN-M 0.5X004P/BK Category 6 U/UTP 4Pair CMR UTP-G-C6G-E1VN-R 0.5X004P/BK Category 6 U/UTP 4Pair CMP UTP-G-C6G-F1VN-P 0.5X004P/BK Category 6 U/UTP 4Pair LSZH 332-1 UTP-G-C6G-E1ZN-X 0.5X004P/BK Category 6 U/UTP 4Pair LSZH 332-3 UTP-G-C6G-E1ZN-M 0.5X004P/BK
- APPLICATION
- · Horizontal Distribution & Backbone Cabling
· 4/16Mbps Token Ring (IEEE 802.5)
· 10/100/1000 BASE-T (IEEE 802.3)
· 155Mbps ATM
· 100Mbps TP-PMD
· ISDN, ADSL
· ATM LAN 1.2G
- TECHNICAL DETAILS
-
Characteristics units Cat.6 DC Resistance Ω/100m ≤ 9.38 DC Resistance Unbalance % ≤ 5.00 Mutual Capacitance nF/100m ≤ 5.60 Capacitance Unbalance (Pair to Ground)
pF/100m ≤ 330 Insulation Resistance MΩ-100m ≥ 500 Dielectric Strength DC kV/sec 2.5 / 2 Impedance (Characteristic mean)
Ω 100 ± 15% (1 ≤ f ≤ 250MHz) Return Loss dB/100m ≥ 20 + 5 * log(freq) , 1 ≤ f ＜ 10MHz ≥ 25 , 10 ≤ f ＜ 20MHz
≥ 25 – 7 * log(freq/20) , 20 ≤ f ≤ 250MHz
Attenuation (Insertion Loss)
dB/100m ≤ 1.808*√(freq) + 0.017*(freq) + 0.20/√(freq) , 1 ~ 250 MHz
NEXT Loss dB/100m ≥ 44.3 – 15*log(freq/100) , 1 ~ 250MHz Power sum NEXT Loss dB/100m ≥ 42.3 – 15*log(freq/100) , 1 ~ 250MHz ELFEXT Loss dB/100m ≥ 27.8 – 20*log(freq/100) , 1 ~ 250MHz Power sum ELFEXT Loss dB/100m ≥ 24.8 – 20*log(freq/100) , 1 ~ 250MHz Propagation Delay ns/100m ≤ 534 + 36 / √(Freq) , 1 ~ 250MHz Propagation Delay Skew ns/100m ≤ 45
| Freq. (MHz) |
Attenuation (dB/100m) Max. |
NEXT (dB/100m) Min. |
PSNEXT (dB/100m) Min. |
ELFEXT (dB/100m) Min. |
PSELFEXT (dB/100m) Min. |
RL (dB/100m) Min. |
P.Delay (ns/100m) Max. |
| 1 | 2 | 74.3 | 72.3 | 67.8 | 64.8 | 20 | 570 |
| 4 | 3.8 | 65.3 | 63.3 | 55.8 | 52.8 | 23 | 552 |
| 8 | 5.5 | 60.8 | 58.8 | 49.7 | 46.7 | 24.5 | 547 |
| 10 | 6 | 59.3 | 57.3 | 47.8 | 44.8 | 25 | 545 |
| 16 | 7.6 | 56.2 | 54.2 | 43.7 | 40.7 | 25 | 543 |
| 20 | 8.5 | 54.8 | 52.8 | 41.8 | 38.8 | 25 | 542 |
| 25 | 9.5 | 53.3 | 51.3 | 39.8 | 36.8 | 24.3 | 541 |
| 31.25 | 10.7 | 51.9 | 49.9 | 37.9 | 34.9 | 23.6 | 540 |
| 62.5 | 15.4 | 47.4 | 45.4 | 31.9 | 28.9 | 21.5 | 539 |
| 100 | 19.8 | 44.3 | 42.3 | 27.8 | 24.8 | 20.1 | 538 |
| 200 | 29 | 39.8 | 37.8 | 21.8 | 18.8 | 18 | 537 |
| 250 | 32.8 | 38.3 | 36.3 | 19.8 | 16.8 | 17.3 | 536 |
DATA SHEET
