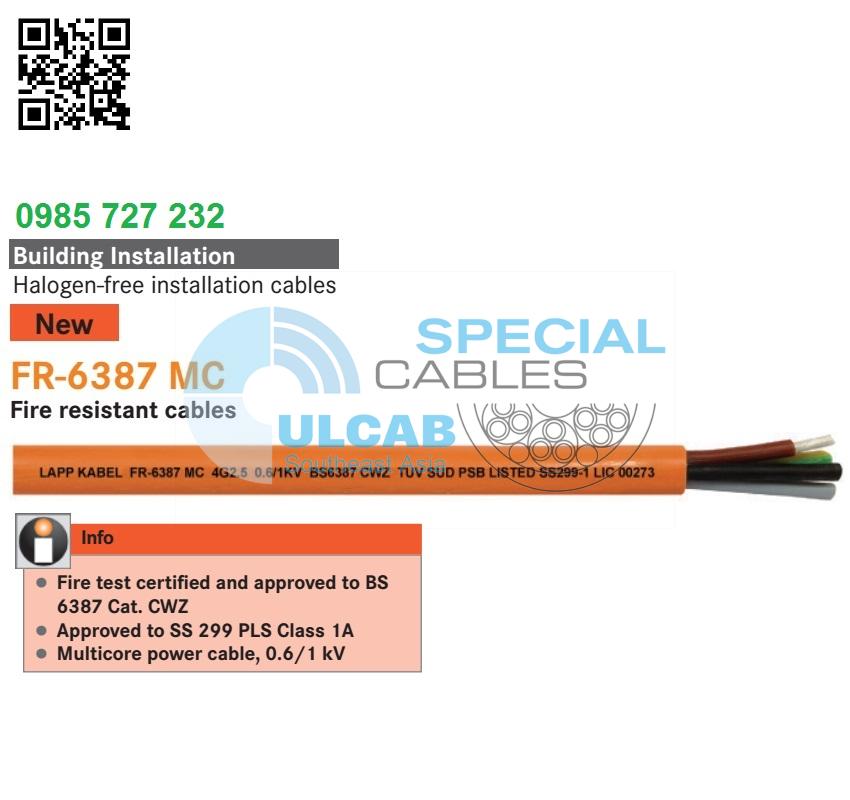

LAPPKABEL ÖLFLEX® FR-6387 MC
Fire resistant cables

• product information ( PDF )

■ Application range

• Specially designed to be use for wiring appli cations in critical life safety system in public and industrial buildings such as airports, hotels, hospitals, subways, train stations, etc.

• In building management systems, emergency lightings, standby power supplies, lifts and elevators

• Plant engineering and construction, industrial machinery, power station

■ Product features

• Flame retardant acc. to IEC 60332-1-2 and to IEC 60332-3-22

• Halogen free acc. to IEC 60754-1

• Acid and corrosive gases acc. to IEC 60754-2

• Smoke density test acc. to IEC 61034

■ Approvals (Norm references)

•
• Fire test certified and approved to BS 6387 Cat. CWZ

• Approved to SS 299 PLS Class 1A

■ Design

• Stranded plain annealed copper wire

• Mica based fire resistance tape

• XLPE insulation

• LSHF outer sheath

• Colour: orange

■ Technical data

Approvals
BS 6387 Cat. CWZ, SS 299-1 PLS Class 1A
Conductor stranding
acc. to IEC 60228 Cl. 2
Minimum bending radius
10 x cable diameter
Nominal voltage
U₀/U: 600/1000 V
Test voltage
3500 V
Temperature range
-30°C to +90°C
