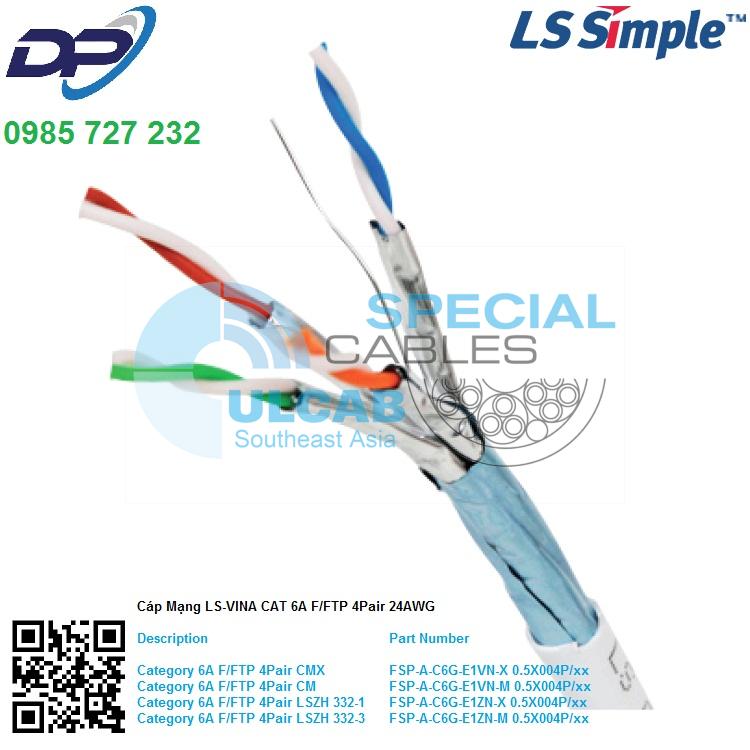

Cáp Mạng LS VINA CAT6A F/FTP 4Pair LSZH 332-1 – White ( FSP-A-C6G-E1ZN-X 0.5X004P/WH )
Category 6A Cable
F/FTP Cat.6A
- Description
- · Cable diameter: 7.3±0.2mm
· Capable of handling full broadband and baseband video signals
· Comply with ANSI/TIA-568-C.2
· Specialized print legend contains footage or metric or dual marking
· Wooden reel packaging, so wire pulls through reel for easy access
· RoHS compliant
· Qualifies for the LS 25-year extended Product Warranty and Applications Assurance when included as part of a registered LS Category 6A Channel
- Part Lists
-
Description Part Number Category 6A F/FTP 4Pair CMX FSP-A-C6G-E1VN-X 0.5X004P/WH Category 6A F/FTP 4Pair CM FSP-A-C6G-E1VN-M 0.5X004P/WH Category 6A F/FTP 4Pair LSZH 332-1 FSP-A-C6G-E1ZN-X 0.5X004P/WH Category 6A F/FTP 4Pair LSZH 332-3 FSP-A-C6G-E1ZN-M 0.5X004P/WH Category 6A F/FTP 4Pair CMX FSP-A-C6G-E1VN-X 0.5X004P/BL Category 6A F/FTP 4Pair CM FSP-A-C6G-E1VN-M 0.5X004P/BL Category 6A F/FTP 4Pair LSZH 332-1 FSP-A-C6G-E1ZN-X 0.5X004P/BL Category 6A F/FTP 4Pair LSZH 332-3 FSP-A-C6G-E1ZN-M 0.5X004P/BL Category 6A F/FTP 4Pair CMX FSP-A-C6G-E1VN-X 0.5X004P/GY Category 6A F/FTP 4Pair CM FSP-A-C6G-E1VN-M 0.5X004P/GY Category 6A F/FTP 4Pair LSZH 332-1 FSP-A-C6G-E1ZN-X 0.5X004P/GY Category 6A F/FTP 4Pair LSZH 332-3 FSP-A-C6G-E1ZN-M 0.5X004P/GY Category 6A F/FTP 4Pair CMX FSP-A-C6G-E1VN-X 0.5X004P/GN Category 6A F/FTP 4Pair CM FSP-A-C6G-E1VN-M 0.5X004P/GN Category 6A F/FTP 4Pair LSZH 332-1 FSP-A-C6G-E1ZN-X 0.5X004P/GN Category 6A F/FTP 4Pair LSZH 332-3 FSP-A-C6G-E1ZN-M 0.5X004P/GN Category 6A F/FTP 4Pair CMX FSP-A-C6G-E1VN-X 0.5X004P/OR Category 6A F/FTP 4Pair CM FSP-A-C6G-E1VN-M 0.5X004P/OR Category 6A F/FTP 4Pair LSZH 332-1 FSP-A-C6G-E1ZN-X 0.5X004P/OR Category 6A F/FTP 4Pair LSZH 332-3 FSP-A-C6G-E1ZN-M 0.5X004P/OR Category 6A F/FTP 4Pair CMX FSP-A-C6G-E1VN-X 0.5X004P/RD Category 6A F/FTP 4Pair CM FSP-A-C6G-E1VN-M 0.5X004P/RD Category 6A F/FTP 4Pair LSZH 332-1 FSP-A-C6G-E1ZN-X 0.5X004P/RD Category 6A F/FTP 4Pair LSZH 332-3 FSP-A-C6G-E1ZN-M 0.5X004P/RD Category 6A F/FTP 4Pair CMX FSP-A-C6G-E1VN-X 0.5X004P/YL Category 6A F/FTP 4Pair CM FSP-A-C6G-E1VN-M 0.5X004P/YL Category 6A F/FTP 4Pair LSZH 332-1 FSP-A-C6G-E1ZN-X 0.5X004P/YL Category 6A F/FTP 4Pair LSZH 332-3 FSP-A-C6G-E1ZN-M 0.5X004P/YL Category 6A F/FTP 4Pair CMX FSP-A-C6G-E1VN-X 0.5X004P/VI Category 6A F/FTP 4Pair CM FSP-A-C6G-E1VN-M 0.5X004P/VI Category 6A F/FTP 4Pair LSZH 332-1 FSP-A-C6G-E1ZN-X 0.5X004P/VI Category 6A F/FTP 4Pair LSZH 332-3 FSP-A-C6G-E1ZN-M 0.5X004P/VI Category 6A F/FTP 4Pair CMX FSP-A-C6G-E1VN-X 0.5X004P/BK Category 6A F/FTP 4Pair CM FSP-A-C6G-E1VN-M 0.5X004P/BK Category 6A F/FTP 4Pair LSZH 332-1 FSP-A-C6G-E1ZN-X 0.5X004P/BK Category 6A F/FTP 4Pair LSZH 332-3 FSP-A-C6G-E1ZN-M 0.5X004P/BK
- Application
- · Horizontal Distribution & Backbone Cabling
· 4/16Mbps Token Ring (IEEE 802.5)
· 10/100/1000/10G BASE-T (IEEE 802.3)
· 155Mbps ATM
· 100Mbps TP-PMD
· ISDN, ADSL
· ATM LAN 1.2G
- Technical Details
-
Characteristics units Specification DC Resistance Ω/100m ≤ 9.5 DC Resistance Unbalance % ≤ 2.00 Capacitance Unbalance (Pair to Ground)
pF/km (800~1000Hz)
≤ 1600 Insulation Resistance MΩ·m ≥ 5000 Dielectric Strength DC kV/sec 2.5 / 2 Impedance (Characteristic mean)
Ω 100 ± 5% (at 100MHz) Return Loss dB/100m ≥ 20 + 5 * log(freq) , 4 ≤ f ＜ 10MHz ≥ 25 , 10 ≤ f ＜ 20MHz
≥ 25 – 7 * log(freq/20) , 20 ≤ f ≤ 600MHz (min. 17.3dB)
Attenuation (Insertion Loss)
dB/100m ≤ 1.8*√(freq) + 0.01*(freq) + 0.2/√(freq) , 4 ~ 600 MHz
NEXT Loss dB/100m ≥ 102.4 – 15*log(freq/100), Max. 78dB, 4~600MHz Power sum NEXT Loss dB/100m ≥ 99.4 – 15*log(freq/100), Max. 75dB, 4~600MHz ELFEXT Loss dB/100m ≥ 94–20*log(freq/100), Max. 78dB, 4~600MHz Power sum ELFEXT Loss dB/100m ≥ 91–20*log(freq/100), Max. 75dB, 4~600MHz Propagation Delay ns/100m ≤ 534 + 36 / √ (Freq), 4~600MHz Propagation Delay Skew ns/100m ≤ 25, 4~600MHz
| Freq. (MHz) |
Attenuation (dB/100m) Max |
NEXT (dB/100m) Min |
PSNEXT (dB/100m) Min. |
ELFEXT (dB/100m) Min. |
PSELFEXT (dB/100m) Min. |
RL (dB/100m) Min. |
P.Delay (ns/100m) Max. |
| 4 | 3,8 | 66,3 | 63,3 | 56 | 53 | 23 | 552 |
| 8 | 5,3 | 61,8 | 58,8 | 49,9 | 46,9 | 24,5 | 547 |
| 10 | 5,9 | 60,3 | 57,3 | 48 | 45 | 25 | 545 |
| 16 | 7,5 | 57,2 | 54,2 | 43,9 | 40,9 | 25 | 543 |
| 20 | 8,4 | 55,8 | 52,8 | 42 | 39 | 25 | 542 |
| 25 | 9,4 | 54,3 | 51,3 | 40 | 37 | 24,3 | 541 |
| 31,25 | 10,5 | 52,9 | 49,9 | 38,1 | 35,1 | 23,6 | 540 |
| 62,5 | 15 | 48,4 | 45,4 | 32,1 | 29,1 | 21,5 | 539 |
| 100 | 19,1 | 45,3 | 42,3 | 28 | 25 | 20,1 | 538 |
| 200 | 27,6 | 40,8 | 37,8 | 22 | 19 | 18 | 537 |
| 250 | 31,1 | 39,3 | 36,3 | 20 | 17 | 17,3 | 536 |
| 300 | 34,3 | 38,1 | 35,1 | 18,5 | 15,5 | 17,3 | 536 |
| 400 | 40,1 | 36,3 | 33,3 | 16 | 13 | 17,3 | 536 |
| 500 | 45,3 | 34,8 | 31,8 | 14 | 11 | 17,3 | 536 |
DATA SHEET
