Cáp Mạng LS VINA CAT6A U/UTP 4Pair CM – White ( UTP-A-C6G-E1VL-M 26AWGx004P/WH )
Category 6A Cable
Ultra Super Slim Category 6A
- Description

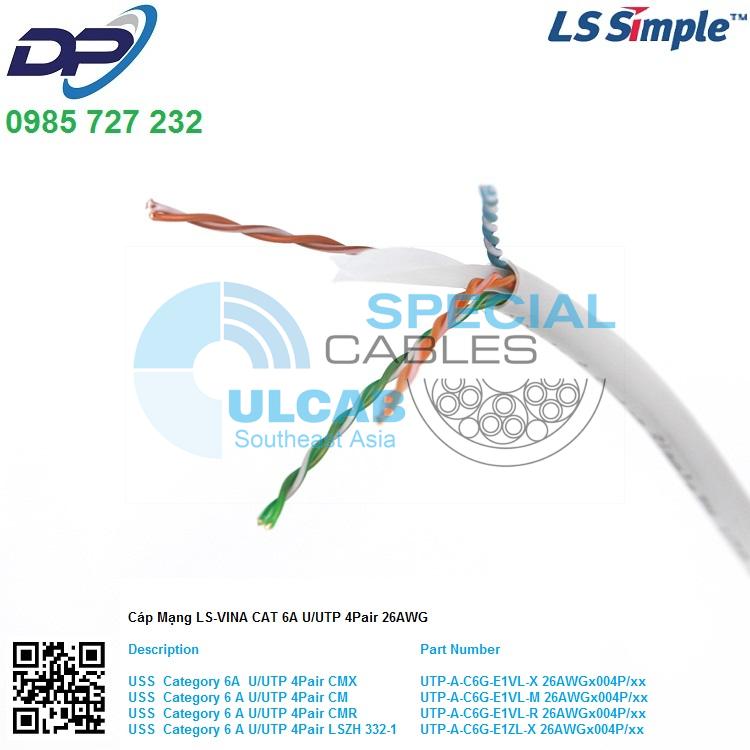

- LS USS-UTP Cat.6A cable a special development to support 10G networking within dense and short length environments such as data center.
It complies to ‘ANSI/TIA-568-C.2’ and ‘ISO/IEC 11801’ for channels of Max 70m or permanent links of max 60m when used in combination with LS Simple Cat.6A connectors and patch cord.
LS USS-UTP Cat.6A cable also complies to ‘Work Area CAT6A wiring performance according to IEC 61156-6 Ed.3’ Data center copper channel usage survey shows 70m channel length covers almost 100% and 60m permanent link lengths covers 99% of today’s 10G applications.
The cable can support max. 60m permanent link and max 70m channel by 26AWG solid copper conductors and smaller cable outer diameter (nominal 5.8mm(0.23in)) allows space saving when installed in bundle.
LS USS-UTP Cat.6A cable’s smaller cable outer diameter meets the customer’s high density installation of cable needs
- Part Lists
-
Description Part Number USS Category 6A U/UTP 4Pair CMX UTP-A-C6G-E1VL-X 26AWGx004P/WH USS Category 6 A U/UTP 4Pair CM UTP-A-C6G-E1VL-M 26AWGx004P/WH USS Category 6 A U/UTP 4Pair CMR UTP-A-C6G-E1VL-R 26AWGx004P/WH USS Category 6 A U/UTP 4Pair LSZH 332-1 UTP-A-C6G-E1ZL-X 26AWGx004P/WH USS Category 6A U/UTP 4Pair CMX UTP-A-C6G-E1VL-X 26AWGx004P/BL USS Category 6 A U/UTP 4Pair CM UTP-A-C6G-E1VL-M 26AWGx004P/BL USS Category 6 A U/UTP 4Pair CMR UTP-A-C6G-E1VL-R 26AWGx004P/BL USS Category 6 A U/UTP 4Pair LSZH 332-1 UTP-A-C6G-E1ZL-X 26AWGx004P/BL USS Category 6A U/UTP 4Pair CMX UTP-A-C6G-E1VL-X 26AWGx004P/GY USS Category 6 A U/UTP 4Pair CM UTP-A-C6G-E1VL-M 26AWGx004P/GY USS Category 6 A U/UTP 4Pair CMR UTP-A-C6G-E1VL-R 26AWGx004P/GY USS Category 6 A U/UTP 4Pair LSZH 332-1 UTP-A-C6G-E1ZL-X 26AWGx004P/GY USS Category 6A U/UTP 4Pair CMX UTP-A-C6G-E1VL-X 26AWGx004P/GN USS Category 6 A U/UTP 4Pair CM UTP-A-C6G-E1VL-M 26AWGx004P/GN USS Category 6 A U/UTP 4Pair CMR UTP-A-C6G-E1VL-R 26AWGx004P/GN USS Category 6 A U/UTP 4Pair LSZH 332-1 UTP-A-C6G-E1ZL-X 26AWGx004P/GN USS Category 6A U/UTP 4Pair CMX UTP-A-C6G-E1VL-X 26AWGx004P/VI USS Category 6 A U/UTP 4Pair CM UTP-A-C6G-E1VL-M 26AWGx004P/VI USS Category 6 A U/UTP 4Pair CMR UTP-A-C6G-E1VL-R 26AWGx004P/VI USS Category 6 A U/UTP 4Pair LSZH 332-1 UTP-A-C6G-E1ZL-X 26AWGx004P/VI USS Category 6A U/UTP 4Pair CMX UTP-A-C6G-E1VL-X 26AWGx004P/OR USS Category 6 A U/UTP 4Pair CM UTP-A-C6G-E1VL-M 26AWGx004P/OR USS Category 6 A U/UTP 4Pair CMR UTP-A-C6G-E1VL-R 26AWGx004P/OR USS Category 6 A U/UTP 4Pair LSZH 332-1 UTP-A-C6G-E1ZL-X 26AWGx004P/OR USS Category 6A U/UTP 4Pair CMX UTP-A-C6G-E1VL-X 26AWGx004P/RD USS Category 6 A U/UTP 4Pair CM UTP-A-C6G-E1VL-M 26AWGx004P/RD USS Category 6 A U/UTP 4Pair CMR UTP-A-C6G-E1VL-R 26AWGx004P/RD USS Category 6 A U/UTP 4Pair LSZH 332-1 UTP-A-C6G-E1ZL-X 26AWGx004P/RD USS Category 6A U/UTP 4Pair CMX UTP-A-C6G-E1VL-X 26AWGx004P/YL USS Category 6 A U/UTP 4Pair CM UTP-A-C6G-E1VL-M 26AWGx004P/YL USS Category 6 A U/UTP 4Pair CMR UTP-A-C6G-E1VL-R 26AWGx004P/YL USS Category 6 A U/UTP 4Pair LSZH 332-1 UTP-A-C6G-E1ZL-X 26AWGx004P/YL USS Category 6A U/UTP 4Pair CMX UTP-A-C6G-E1VL-X 26AWGx004P/BK USS Category 6 A U/UTP 4Pair CM UTP-A-C6G-E1VL-M 26AWGx004P/BK USS Category 6 A U/UTP 4Pair CMR UTP-A-C6G-E1VL-R 26AWGx004P/BK USS Category 6 A U/UTP 4Pair LSZH 332-1 UTP-A-C6G-E1ZL-X 26AWGx004P/BK
- Application
- · Horizontal Distribution & Backbone Cabling
· 4/16 Mbps Token Ring (IEEE 802.5) up to 70m
· 10/100/1000/10G BASE-T (IEEE 802.3) up to 70m
· 155 Mbps ATM up to 70m
· 100Mbps TP-PMD up to 70m
· ISDN, ADSL
- Technical Details
-
Characteristics units Specification DC Resistance Ω/100m ≤ 14.8 DC Resistance Unbalance % ≤ 2.00 Capacitance Unbalance (Pair to Ground)
pF/100m (800~1000Hz)
≤ 1600 Insulation Resistance MΩ-100m ≥ 5000 Dielectric Strength DC kV/sec 2.5 / 2 Impedance (Characteristic mean)
Ω 100 ± 5% (at 100MHz) Return Loss dB/100m ≥ 20 + 5 * log(freq) , 4 ≤ f ＜ 10MHz ≥ 25 , 10 ≤ f ＜ 20MHz
≥ 25 – 8.6* log(freq/20) , 20 ≤ f ≤ 500MHz
Attenuation (Insertion Loss)
dB/100m ≤ 2.73*√(freq) + 0.0136*(freq) + 0.375/√(freq) , 4 ~ 500 MHz
NEXT Loss dB/100m ≥ 75.3 – 15*log(freq) , 4 ~ 500MHz Power sum NEXT Loss dB/100m ≥ 72.3 – 15*log(freq) , 4 ~ 500MHz ACRF Loss dB/100m ≥ 68 – 20*log(freq) , 4 ~ 500MHz Power sum ACRF Loss dB/100m ≥ 65 – 20*log(freq) , 4 ~ 500MHz Power sum Alien NEXT Loss dB/100m ≥ 92.5 – 15*log(freq) , Max. 67, 4 ~ 500MHz Power sum Alien ACRF Loss dB/100m ≥ 78.2 – 20*log(freq) , Max. 67, 4 ~ 500MHz Propagation Delay ns/100m ≤ 534 + 36 / √ (Freq) , 4 ~ 500MHz Propagation Delay Skew ns/100m ≤ 45 , 4 ~ 500MHz
| Frequency (MHz) |
Attenuation (dB/100m) |
NEXT (dB/100m) |
PSNEXT (dB/100m) |
ACRF (dB/100m) |
PSACRF (dB/100m) |
RL (dB/100m) |
PSANEXT (dB/100m) |
PSACRF (dB/100m) |
PD (ns) |
PD Skew (ns) |
| 4 | 5,7 | 66,3 | 63,3 | 56 | 53 | 23 | 67 | 66,2 | 580 | 45 |
| 10 | 8,9 | 60,3 | 57,2 | 48 | 45 | 25 | 67 | 58,2 | 570 | 45 |
| 16 | 11,2 | 57,2 | 54,2 | 43,9 | 40,9 | 25 | 67 | 54,1 | 567 | 45 |
| 20 | 12,6 | 55,8 | 52,8 | 42 | 39 | 25 | 67 | 52,2 | 566 | 45 |
| 31,25 | 15,8 | 52,9 | 49,9 | 38,1 | 35,1 | 23,3 | 67 | 48,3 | 563 | 45 |
| 62,75 | 22,5 | 48,4 | 45,4 | 32,1 | 29,1 | 20,7 | 65,6 | 42,3 | 561 | 45 |
| 100 | 28,7 | 45,3 | 42,3 | 28 | 25 | 19 | 62,5 | 38,2 | 559 | 45 |
| 200 | 41,4 | 40,8 | 37,8 | 22 | 19 | 16,4 | 58 | 32,3 | 558 | 45 |
| 250 | 46,6 | 39,8 | 36,3 | 20 | 17 | 15,6 | 56,5 | 30,2 | 557 | 45 |
| 400 | 60,1 | 36,3 | 33,3 | 16 | 13 | 15,6 | 53,5 | 26,2 | 556 | 45 |
| 500 | 67,9 | 34,8 | 31,8 | 14 | 11 | 15,6 | 52 | 24,2 | 556 | 45 |
