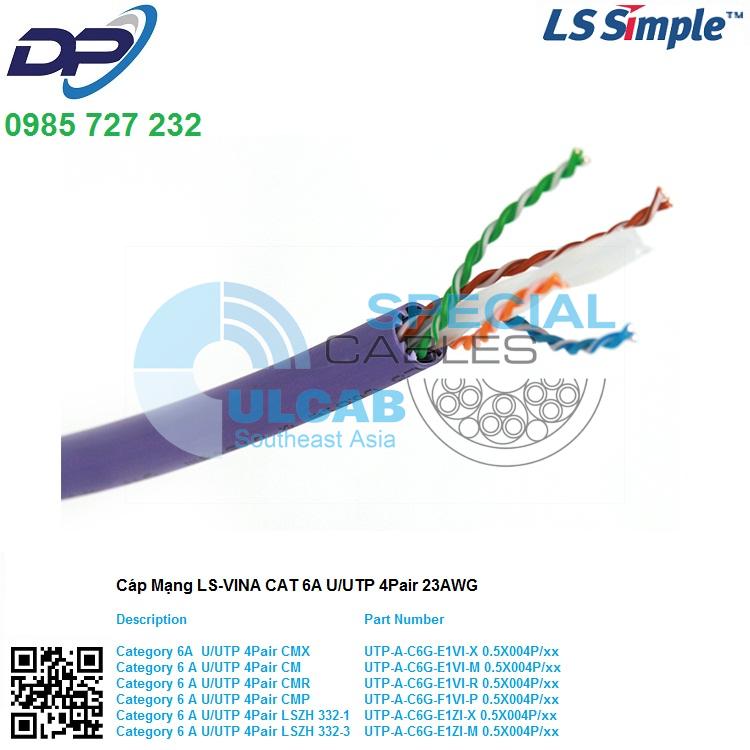

Cáp Mạng LS VINA CAT6A U/UTP 4Pair 23AWG CMX – Violet ( UTP-A-C6G-E1VI-X 0.5X004P/VI )
Category 6A Cable
U/UTP Category 6A
- Description
- · Cable diameter: 0.354 in. (9.0mm)
· UL Listed(CMR, CMP)
· Capable of handling full broadband and baseband video signals
· High flame retardant grade of the cable (Plenum Cable)
· Comply with ANSI/TIA-568-C.2
· Specialized print legend contains footage or metric or dual marking
· Wooden reel packaging, so wire pulls through reel for easy access
· Superior alien crosstalk performance
· RoHS compliant
· Qualifies for the LS 25-year extended Product Warranty and Applications Assurance when included as part of a registered LS Category 6A Channel
- Part Lists
-
Description Part Number Category 6A U/UTP 4Pair CMX UTP-A-C6G-E1VI-X 0.5X004P/WH Category 6 A U/UTP 4Pair CM UTP-A-C6G-E1VI-M 0.5X004P/WH Category 6 A U/UTP 4Pair CMR UTP-A-C6G-E1VI-R 0.5X004P/WH Category 6 A U/UTP 4Pair CMP UTP-A-C6G-F1VI-P 0.5X004P/WH Category 6 A U/UTP 4Pair LSZH 332-1 UTP-A-C6G-E1ZI-X 0.5X004P/WH Category 6 A U/UTP 4Pair LSZH 332-3 UTP-A-C6G-E1ZI-M 0.5X004P/WH Category 6A U/UTP 4Pair CMX UTP-A-C6G-E1VI-X 0.5X004P/GY Category 6 A U/UTP 4Pair CM UTP-A-C6G-E1VI-M 0.5X004P/GY Category 6 A U/UTP 4Pair CMR UTP-A-C6G-E1VI-R 0.5X004P/GY Category 6 A U/UTP 4Pair CMP UTP-A-C6G-F1VI-P 0.5X004P/GY Category 6 A U/UTP 4Pair LSZH 332-1 UTP-A-C6G-E1ZI-X 0.5X004P/GY Category 6 A U/UTP 4Pair LSZH 332-3 UTP-A-C6G-E1ZI-M 0.5X004P/GY Category 6A U/UTP 4Pair CMX UTP-A-C6G-E1VI-X 0.5X004P/BL Category 6 A U/UTP 4Pair CM UTP-A-C6G-E1VI-M 0.5X004P/BL Category 6 A U/UTP 4Pair CMR UTP-A-C6G-E1VI-R 0.5X004P/BL Category 6 A U/UTP 4Pair CMP UTP-A-C6G-F1VI-P 0.5X004P/BL Category 6 A U/UTP 4Pair LSZH 332-1 UTP-A-C6G-E1ZI-X 0.5X004P/BL Category 6 A U/UTP 4Pair LSZH 332-3 UTP-A-C6G-E1ZI-M 0.5X004P/BL Category 6A U/UTP 4Pair CMX UTP-A-C6G-E1VI-X 0.5X004P/GN Category 6 A U/UTP 4Pair CM UTP-A-C6G-E1VI-M 0.5X004P/GN Category 6 A U/UTP 4Pair CMR UTP-A-C6G-E1VI-R 0.5X004P/GN Category 6 A U/UTP 4Pair CMP UTP-A-C6G-F1VI-P 0.5X004P/GN Category 6 A U/UTP 4Pair LSZH 332-1 UTP-A-C6G-E1ZI-X 0.5X004P/GN Category 6 A U/UTP 4Pair LSZH 332-3 UTP-A-C6G-E1ZI-M 0.5X004P/GN Category 6A U/UTP 4Pair CMX UTP-A-C6G-E1VI-X 0.5X004P/VI Category 6 A U/UTP 4Pair CM UTP-A-C6G-E1VI-M 0.5X004P/VI Category 6 A U/UTP 4Pair CMR UTP-A-C6G-E1VI-R 0.5X004P/VI Category 6 A U/UTP 4Pair CMP UTP-A-C6G-F1VI-P 0.5X004P/VI Category 6 A U/UTP 4Pair LSZH 332-1 UTP-A-C6G-E1ZI-X 0.5X004P/VI Category 6 A U/UTP 4Pair LSZH 332-3 UTP-A-C6G-E1ZI-M 0.5X004P/VI Category 6A U/UTP 4Pair CMX UTP-A-C6G-E1VI-X 0.5X004P/OR Category 6 A U/UTP 4Pair CM UTP-A-C6G-E1VI-M 0.5X004P/OR Category 6 A U/UTP 4Pair CMR UTP-A-C6G-E1VI-R 0.5X004P/OR Category 6 A U/UTP 4Pair CMP UTP-A-C6G-F1VI-P 0.5X004P/OR Category 6 A U/UTP 4Pair LSZH 332-1 UTP-A-C6G-E1ZI-X 0.5X004P/OR Category 6 A U/UTP 4Pair LSZH 332-3 UTP-A-C6G-E1ZI-M 0.5X004P/OR Category 6A U/UTP 4Pair CMX UTP-A-C6G-E1VI-X 0.5X004P/RD Category 6 A U/UTP 4Pair CM UTP-A-C6G-E1VI-M 0.5X004P/RD Category 6 A U/UTP 4Pair CMR UTP-A-C6G-E1VI-R 0.5X004P/RD Category 6 A U/UTP 4Pair CMP UTP-A-C6G-F1VI-P 0.5X004P/RD Category 6 A U/UTP 4Pair LSZH 332-1 UTP-A-C6G-E1ZI-X 0.5X004P/RD Category 6 A U/UTP 4Pair LSZH 332-3 UTP-A-C6G-E1ZI-M 0.5X004P/RD Category 6A U/UTP 4Pair CMX UTP-A-C6G-E1VI-X 0.5X004P/YL Category 6 A U/UTP 4Pair CM UTP-A-C6G-E1VI-M 0.5X004P/YL Category 6 A U/UTP 4Pair CMR UTP-A-C6G-E1VI-R 0.5X004P/YL Category 6 A U/UTP 4Pair CMP UTP-A-C6G-F1VI-P 0.5X004P/YL Category 6 A U/UTP 4Pair LSZH 332-1 UTP-A-C6G-E1ZI-X 0.5X004P/YL Category 6 A U/UTP 4Pair LSZH 332-3 UTP-A-C6G-E1ZI-M 0.5X004P/YL Category 6A U/UTP 4Pair CMX UTP-A-C6G-E1VI-X 0.5X004P/BK Category 6 A U/UTP 4Pair CM UTP-A-C6G-E1VI-M 0.5X004P/BK Category 6 A U/UTP 4Pair CMR UTP-A-C6G-E1VI-R 0.5X004P/BK Category 6 A U/UTP 4Pair CMP UTP-A-C6G-F1VI-P 0.5X004P/BK Category 6 A U/UTP 4Pair LSZH 332-1 UTP-A-C6G-E1ZI-X 0.5X004P/BK Category 6 A U/UTP 4Pair LSZH 332-3 UTP-A-C6G-E1ZI-M 0.5X004P/BK
- Application
- · Horizontal Distribution & Backbone Cabling
· 4/16Mbps Token Ring (IEEE 802.5)
· 10/100/1000/10G BASE-T (IEEE 802.3)
· 155Mbps ATM
· 100Mbps TP-PMD
· ISDN, ADSL
· ATM LAN 1.2G
- Technical Details
-
Characteristics units Specification DC Resistance Ω/100m ≤ 9.38 DC Resistance Unbalance % ≤ 4.00 Mutual Capacitance nF/100m ≤ 5.60 Capacitance Unbalance
(Pair to Ground)pF/100m ≤ 330 Insulation Resistance MΩ-305m ≥ 100 Dielectric Strength DC kV/sec 2.5 / 2 Impedance
(Characteristic mean)Ω 100 ± 15% (1 ≤ f ≤ 500MHz) Return Loss dB/100m ≥ 20 + 5 * log(freq) , 1 ≤ f ＜ 10MHz
≥ 25 , 10 ≤ f ＜ 20MHz
≥ 25 – 7 * log(freq/20) , 20 ≤ f ≤ 500MHzAttenuation
(Insertion Loss)dB/100m ≤ 1.82*√(freq) + 0.0091*(freq) + 0.25/√(freq)
, 1 ~ 500 MHzNEXT Loss dB/100m ≥ 44.3 – 15*log(freq/100) , 1 ~ 500MHz Power sum NEXT Loss dB/100m ≥ 42.3 – 15*log(freq/100) , 1 ~ 500MHz ELFEXT Loss dB/100m ≥ 27.8 – 20*log(freq/100) , 1 ~ 500MHz Power sum ELFEXT Loss dB/100m ≥ 24.8 – 20*log(freq/100) , 1 ~ 500MHz Power sum Alien NEXT Loss dB/100m ≥ 62.5 – 15*log(freq/100) , Max. 67, 1 ~ 500MHz Power sum Alien ELFEXT Loss dB/100m ≥ 38.2 – 20*log(freq/100) , Max. 67, 1 ~ 500MHz Propagation Delay ns/100m ≤ 534 + 36 / √ (Freq) , 1 ~ 500MHz Propagation Delay Skew ns/100m ≤ 45 , 1 ~ 500MHz Nominal Velocity of Propagation % 67
| Frequency (MHz) |
Attenuation (dB/100m) |
NEXT (dB/100m) |
PSNEXT (dB/100m) |
ELFEXT (dB/100m) |
PSELFEXT (dB/100m) |
RL (dB/100m) |
PSANEXT (dB/100m) |
PSAELFEXT (dB/100m) |
PD (ns) |
PD skew (ns) |
| 1 | 2.1 | 74.3 | 72.3 | 67.8 | 64.8 | 20 | 67 | 67 | 570 | 45 |
| 4 | 3.8 | 65.3 | 63.3 | 55.8 | 52.8 | 23 | 67 | 66.2 | 552 | 45 |
| 8 | 5.3 | 60.8 | 58.8 | 49.7 | 46.7 | 24.5 | 67 | 60.1 | 547 | 45 |
| 10 | 5.9 | 59.3 | 57.3 | 47.8 | 44.8 | 25 | 67 | 58.2 | 545 | 45 |
| 16 | 7.5 | 56.2 | 54.2 | 43.7 | 40.7 | 25 | 67 | 54.1 | 543 | 45 |
| 20 | 8.4 | 54.8 | 52.8 | 41.8 | 38.8 | 25 | 67 | 52.2 | 542 | 45 |
| 25 | 9.4 | 53.3 | 51.3 | 39.8 | 36.8 | 24.3 | 67 | 50.2 | 541 | 45 |
| 31.25 | 10.5 | 51.9 | 49.9 | 37.9 | 34.9 | 23.6 | 67 | 48.3 | 540 | 45 |
| 62.5 | 15 | 47.4 | 45.4 | 31.9 | 28.9 | 21.5 | 65.6 | 42.3 | 539 | 45 |
| 100 | 19.1 | 44.3 | 42.3 | 27.8 | 24.8 | 20.1 | 62.5 | 38.2 | 538 | 45 |
| 200 | 27.6 | 39.8 | 37.8 | 21.8 | 18.8 | 18 | 58 | 32.2 | 537 | 45 |
| 250 | 31.1 | 38.3 | 36.3 | 19.8 | 16.8 | 17.3 | 56.5 | 30.2 | 536 | 45 |
| 300 | 34.3 | 37.1 | 35.1 | 18.3 | 15.3 | 16.8 | 55.3 | 28.7 | 536 | 45 |
| 400 | 40.1 | 35.3 | 33.3 | 15.8 | 12.8 | 15.9 | 53.5 | 26.2 | 536 | 45 |
| 500 | 45.3 | 33.8 | 31.8 | 13.8 | 10.8 | 15.2 | 52 | 24.2 | 536 | 45 |
