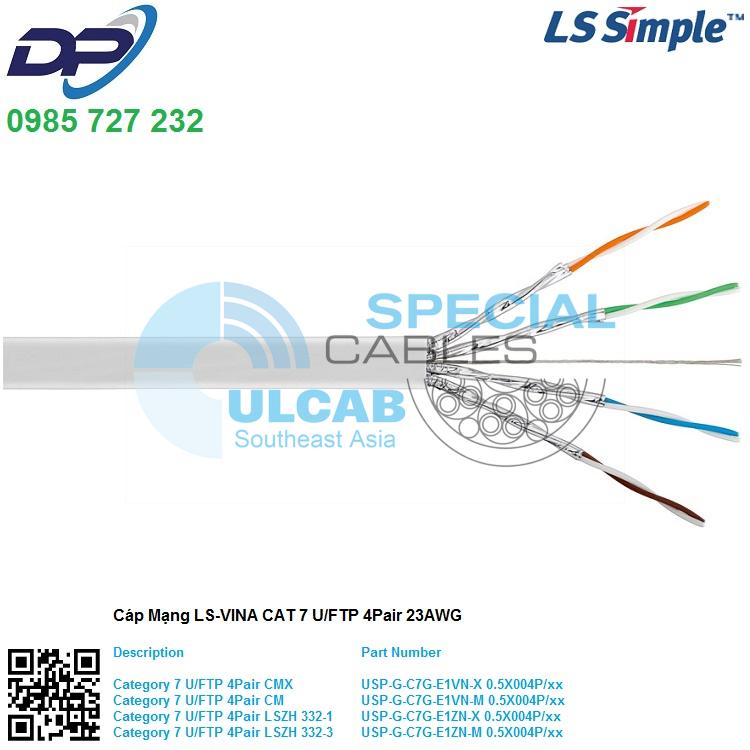

Cáp Mạng LS VINA CAT7 U/FTP 4Pair 23AWG CMX – White ( USP-G-C7G-E1VN-X 0.5X004P/WH )
Category 7 & 7A Cable
U/FTP Cat.7
This specification is based on the standards of IEC 61156-5 and covers the requirements for
each individual pair foiled twisted pair (U/FTP) cables of 100Ω, Category 7 (Cat.7, Class F).
– Applicable cable size & type ; 4 Pairs, PVC or LSZH sheath
- Description
- LS Simple™ U/FTP, individual foil shielded twisted pair(PiMF), Category 7 cable is adequate for data center system & special application such as offshore or marine telecommunication environment.
It’s capable of 10Gbps above transmission rate up to 600MHz and handling full broadband & baseband video signals. Basically this cable meets the international standard (ISO/IEC 11801, IEC 61156-5 etc.) and sufficient immunity for EMI noise and attenuation performance.
- Part Lists
-
Description Part Number Category 7 U/FTP 4Pair CMX USP-G-C7G-E1VN-X 0.5X004P/WH Category 7 U/FTP 4Pair CM USP-G-C7G-E1VN-M 0.5X004P/WH Category 7 U/FTP 4Pair LSZH 332-1 USP-G-C7G-E1ZN-X 0.5X004P/WH Category 7 U/FTP 4Pair LSZH 332-3 USP-G-C7G-E1ZN-M 0.5X004P/WH Category 7 U/FTP 4Pair CMX USP-G-C7G-E1VN-X 0.5X004P/BL Category 7 U/FTP 4Pair CM USP-G-C7G-E1VN-M 0.5X004P/BL Category 7 U/FTP 4Pair LSZH 332-1 USP-G-C7G-E1ZN-X 0.5X004P/BL Category 7 U/FTP 4Pair LSZH 332-3 USP-G-C7G-E1ZN-M 0.5X004P/BL Category 7 U/FTP 4Pair CMX USP-G-C7G-E1VN-X 0.5X004P/GY Category 7 U/FTP 4Pair CM USP-G-C7G-E1VN-M 0.5X004P/GY Category 7 U/FTP 4Pair LSZH 332-1 USP-G-C7G-E1ZN-X 0.5X004P/GY Category 7 U/FTP 4Pair LSZH 332-3 USP-G-C7G-E1ZN-M 0.5X004P/GY Category 7 U/FTP 4Pair CMX USP-G-C7G-E1VN-X 0.5X004P/GN Category 7 U/FTP 4Pair CM USP-G-C7G-E1VN-M 0.5X004P/GN Category 7 U/FTP 4Pair LSZH 332-1 USP-G-C7G-E1ZN-X 0.5X004P/GN Category 7 U/FTP 4Pair LSZH 332-3 USP-G-C7G-E1ZN-M 0.5X004P/GN Category 7 U/FTP 4Pair CMX USP-G-C7G-E1VN-X 0.5X004P/VI Category 7 U/FTP 4Pair CM USP-G-C7G-E1VN-M 0.5X004P/VI Category 7 U/FTP 4Pair LSZH 332-1 USP-G-C7G-E1ZN-X 0.5X004P/VI Category 7 U/FTP 4Pair LSZH 332-3 USP-G-C7G-E1ZN-M 0.5X004P/VI Category 7 U/FTP 4Pair CMX USP-G-C7G-E1VN-X 0.5X004P/OR Category 7 U/FTP 4Pair CM USP-G-C7G-E1VN-M 0.5X004P/OR Category 7 U/FTP 4Pair LSZH 332-1 USP-G-C7G-E1ZN-X 0.5X004P/OR Category 7 U/FTP 4Pair LSZH 332-3 USP-G-C7G-E1ZN-M 0.5X004P/OR Category 7 U/FTP 4Pair CMX USP-G-C7G-E1VN-X 0.5X004P/RD Category 7 U/FTP 4Pair CM USP-G-C7G-E1VN-M 0.5X004P/RD Category 7 U/FTP 4Pair LSZH 332-1 USP-G-C7G-E1ZN-X 0.5X004P/RD Category 7 U/FTP 4Pair LSZH 332-3 USP-G-C7G-E1ZN-M 0.5X004P/RD Category 7 U/FTP 4Pair CMX USP-G-C7G-E1VN-X 0.5X004P/YL Category 7 U/FTP 4Pair CM USP-G-C7G-E1VN-M 0.5X004P/YL Category 7 U/FTP 4Pair LSZH 332-1 USP-G-C7G-E1ZN-X 0.5X004P/YL Category 7 U/FTP 4Pair LSZH 332-3 USP-G-C7G-E1ZN-M 0.5X004P/YL Category 7 U/FTP 4Pair CMX USP-G-C7G-E1VN-X 0.5X004P/BK Category 7 U/FTP 4Pair CM USP-G-C7G-E1VN-M 0.5X004P/BK Category 7 U/FTP 4Pair LSZH 332-1 USP-G-C7G-E1ZN-X 0.5X004P/BK Category 7 U/FTP 4Pair LSZH 332-3 USP-G-C7G-E1ZN-M 0.5X004P/BK
- Application
- . Data Center System
. Horizontal Distribution & Backbone Cabling
. 4/16Mbps Token Ring (IEEE 802.5)
. 10/100/1000/10G BASE-T (IEEE 802.3)
. 155 Mbps ATM
. 100 Mbps TP-PMD
. ISDN, ADSL
. ATM LAN 1.2G
- Electrical Performance
-
Characteristics units Specification DC Resistance Ω/100m ≤ 9.5 DC Resistance Unbalance % ≤ 2.00 Capacitance Unbalance (Pair to Ground)
pF/km (800~1000Hz)
≤ 1600 Insulation Resistance MΩ·m ≥ 5000 Dielectric Strength DC kV/sec 2.5 / 2 Impedance (Characteristic mean)
Ω 100 ± 5% (at 100MHz) Return Loss dB/100m ≥ 20 + 5 * log(freq) , 4 ≤ f ＜ 10MHz ≥ 25 , 10 ≤ f ＜ 20MHz
≥ 25 – 7 * log(freq/20) , 20 ≤ f ≤ 600MHz (min. 17.3dB)
Attenuation (Insertion Loss)
dB/100m ≤ 1.8*√(freq) + 0.01*(freq) + 0.2/√(freq) , 4 ~ 600 MHz
NEXT Loss dB/100m ≥ 102.4 – 15*log(freq), Max. 78dB, 4~600MHz Power sum NEXT Loss dB/100m ≥ 99.4 – 15*log(freq), Max. 75dB, 4~600MHz ELFEXT Loss dB/100m ≥ 94–20*log(freq), Max. 78dB, 4~600MHz Power sum ELFEXT Loss dB/100m ≥ 91–20*log(freq), Max. 75dB, 4~600MHz Propagation Delay ns/100m ≤ 534 + 36 / √ (Freq), 4~600MHz Propagation Delay Skew ns/100m ≤ 25, 4~600MHz Freq. (MHz)
Attenuation (dB/100m)
Max.
NEXT (dB/100m)
Min.
PSNEXT (dB/100m)
Min.
ELFEXT (dB/100m)
Min.
PSELFEXT (dB/100m)
Min.
RL (dB/100m)
Min.
P.Delay (ns/100m)
Max.
4 3.7 78.0* 75.0* 78.0* 75.0* 23.0 552 8 5.2 78.0* 75.0* 75.9 72.9 24.5 547 10 5.9 78.0* 75.0* 74.0 71.0 25.0 545 16 7.4 78.0* 75.0* 69.9 66.9 25.0 543 20 8.3 78.0* 75.0* 68.0 65.0 25.0 542 25 9.3 78.0* 75.0* 66.0 63.0 24.3 541 31.25 10.4 78.0* 75.0* 64.1 61.1 23.6 540 62.5 14.9 75.5 72.5 58.1 55.1 21.5 539 100 19.0 72.4 69.4 54.0 51.0 20.1 538 200 27.5 67.9 64.9 48.0 45.0 18.0 537 400 40.0 63.4 60.4 42.0 39.0 17.3 536 600 50.1 60.7 57.7 38.4 35.4 17.3 535
DATA SHEET
