Category 7 & 7A Cable

F/FTP Cat.7

This specification is based on the standards of IEC 61156-5, IEC 60332-1, IEC 60332-3,
IEC 61034 & IEC 60754 and covers the requirements for overall core foiled and
each individual pair foiled twisted pair (F/FTP) cables of 100Ω, Category 7 (Cat.7, Class F).
– Applicable cable size & type ; 4 Pairs, PVC or LSZH sheath

Description

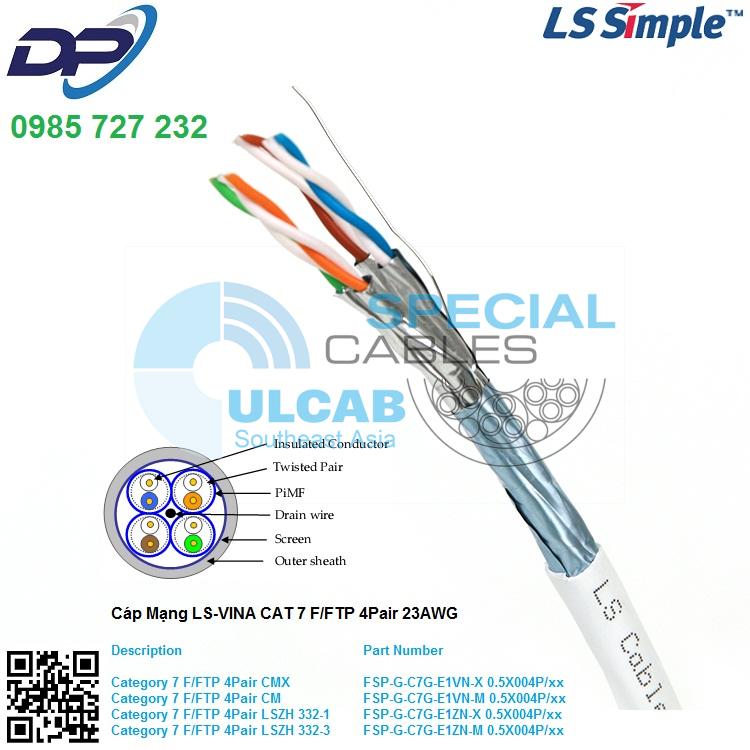

LS Simple™ F/FTP, overall and individual pair foil shielded, Category 7 cable is adequate for data center system & special application such as offshore or marine telecommunication environment.
(Delta Certified) It’s capable of 10Gbps above transmission rate up to 600GHz and handling full broadband & baseband video signals. Basically this cable meets the international standard (ISO/IEC 11801, IEC 61156-5 etc.) and sufficient immunity for EMI noise and attenuation performance.
Part Lists
Description Part Number
Category 7 F/FTP 4Pair CMX FSP-G-C7G-E1VN-X 0.5X004P/WH
Category 7 F/FTP 4Pair CM FSP-G-C7G-E1VN-M 0.5X004P/WH
Category 7 F/FTP 4Pair LSZH 332-1 FSP-G-C7G-E1ZN-X 0.5X004P/WH
Category 7 F/FTP 4Pair LSZH 332-3 FSP-G-C7G-E1ZN-M 0.5X004P/WH
Category 7 F/FTP 4Pair CMX FSP-G-C7G-E1VN-X 0.5X004P/BL
Category 7 F/FTP 4Pair CM FSP-G-C7G-E1VN-M 0.5X004P/BL
Category 7 F/FTP 4Pair LSZH 332-1 FSP-G-C7G-E1ZN-X 0.5X004P/BL
Category 7 F/FTP 4Pair LSZH 332-3 FSP-G-C7G-E1ZN-M 0.5X004P/BL
Category 7 F/FTP 4Pair CMX FSP-G-C7G-E1VN-X 0.5X004P/GY
Category 7 F/FTP 4Pair CM FSP-G-C7G-E1VN-M 0.5X004P/GY
Category 7 F/FTP 4Pair LSZH 332-1 FSP-G-C7G-E1ZN-X 0.5X004P/GY
Category 7 F/FTP 4Pair LSZH 332-3 FSP-G-C7G-E1ZN-M 0.5X004P/GY
Category 7 F/FTP 4Pair CMX FSP-G-C7G-E1VN-X 0.5X004P/GN
Category 7 F/FTP 4Pair CM FSP-G-C7G-E1VN-M 0.5X004P/GN
Category 7 F/FTP 4Pair LSZH 332-1 FSP-G-C7G-E1ZN-X 0.5X004P/GN
Category 7 F/FTP 4Pair LSZH 332-3 FSP-G-C7G-E1ZN-M 0.5X004P/GN
Category 7 F/FTP 4Pair CMX FSP-G-C7G-E1VN-X 0.5X004P/VI
Category 7 F/FTP 4Pair CM FSP-G-C7G-E1VN-M 0.5X004P/VI
Category 7 F/FTP 4Pair LSZH 332-1 FSP-G-C7G-E1ZN-X 0.5X004P/VI
Category 7 F/FTP 4Pair LSZH 332-3 FSP-G-C7G-E1ZN-M 0.5X004P/VI
Category 7 F/FTP 4Pair CMX FSP-G-C7G-E1VN-X 0.5X004P/OR
Category 7 F/FTP 4Pair CM FSP-G-C7G-E1VN-M 0.5X004P/OR
Category 7 F/FTP 4Pair LSZH 332-1 FSP-G-C7G-E1ZN-X 0.5X004P/OR
Category 7 F/FTP 4Pair LSZH 332-3 FSP-G-C7G-E1ZN-M 0.5X004P/OR
Category 7 F/FTP 4Pair CMX FSP-G-C7G-E1VN-X 0.5X004P/RD
Category 7 F/FTP 4Pair CM FSP-G-C7G-E1VN-M 0.5X004P/RD
Category 7 F/FTP 4Pair LSZH 332-1 FSP-G-C7G-E1ZN-X 0.5X004P/RD
Category 7 F/FTP 4Pair LSZH 332-3 FSP-G-C7G-E1ZN-M 0.5X004P/RD
Category 7 F/FTP 4Pair CMX FSP-G-C7G-E1VN-X 0.5X004P/YL
Category 7 F/FTP 4Pair CM FSP-G-C7G-E1VN-M 0.5X004P/YL
Category 7 F/FTP 4Pair LSZH 332-1 FSP-G-C7G-E1ZN-X 0.5X004P/YL
Category 7 F/FTP 4Pair LSZH 332-3 FSP-G-C7G-E1ZN-M 0.5X004P/YL
Category 7 F/FTP 4Pair CMX FSP-G-C7G-E1VN-X 0.5X004P/BK
Category 7 F/FTP 4Pair CM FSP-G-C7G-E1VN-M 0.5X004P/BK
Category 7 F/FTP 4Pair LSZH 332-1 FSP-G-C7G-E1ZN-X 0.5X004P/BK
Category 7 F/FTP 4Pair LSZH 332-3 FSP-G-C7G-E1ZN-M 0.5X004P/BK
Application
. Data Center System
. Horizontal Distribution & Backbone Cabling
. 4/16Mbps Token Ring (IEEE 802.5)
. 10/100/1000/10G BASE-T (IEEE 802.3)
. 155 Mbps ATM
. 100 Mbps TP-PMD
. ISDN, ADSL
. ATM LAN 1.2G
Electrical Performance
Characteristics units Specification
DC Resistance Ω/100m ≤ 9.5
DC Resistance Unbalance % ≤ 2.00
Capacitance Unbalance

(Pair to Ground)

pF/km

(800~1000Hz)

≤ 1600
Insulation Resistance MΩ·m ≥ 5000
Dielectric Strength DC kV/sec 2.5 / 2
Impedance

(Characteristic mean)

Ω 100 ± 5%  (at 100MHz)
Return Loss dB/100m ≥ 20 + 5 * log(freq)      , 4     ≤  f <   10MHz

≥ 25                          , 10   ≤  f <  20MHz

≥ 25 – 7 * log(freq/20)  , 20   ≤  f ≤  600MHz (min. 17.3dB)

Attenuation

(Insertion Loss)

dB/100m ≤ 1.8*√(freq) + 0.01*(freq) + 0.2/√(freq)

, 4 ~ 600 MHz

NEXT Loss dB/100m ≥ 102.4 – 15*log(freq), Max. 78dB, 4~600MHz
Power sum NEXT Loss dB/100m ≥ 99.4 – 15*log(freq), Max. 75dB, 4~600MHz
ELFEXT Loss dB/100m ≥ 94–20*log(freq), Max. 78dB, 4~600MHz
Power sum ELFEXT Loss dB/100m ≥ 91–20*log(freq), Max. 75dB, 4~600MHz
Propagation Delay ns/100m ≤ 534 + 36 / √ (Freq), 4~600MHz
Propagation Delay Skew ns/100m ≤ 25, 4~600MHz
Freq.

(MHz)

Attenuation

(dB/100m)

Max.

NEXT

(dB/100m)

Min.

PSNEXT

(dB/100m)

Min.

ELFEXT

(dB/100m)

Min.

PSELFEXT

(dB/100m)

Min.

RL

(dB/100m)

Min.

P.Delay

(ns/100m)

Max.

4 3.7 78.0* 75.0* 78.0* 75.0* 23.0 552
8 5.2 78.0* 75.0* 75.9 72.9 24.5 547
10 5.9 78.0* 75.0* 74.0 71.0 25.0 545
16 7.4 78.0* 75.0* 69.9 66.9 25.0 543
20 8.3 78.0* 75.0* 68.0 65.0 25.0 542
25 9.3 78.0* 75.0* 66.0 63.0 24.3 541
31.25 10.4 78.0* 75.0* 64.1 61.1 23.6 540
62.5 14.9 75.5 72.5 58.1 55.1 21.5 539
100 19.0 72.4 69.4 54.0 51.0 20.1 538
200 27.5 67.9 64.9 48.0 45.0 18.0 537
400 40.0 63.4 60.4 42.0 39.0 17.3 536
600 50.1 60.7 57.7 38.4 35.4 17.3 535

DATA SHEET
