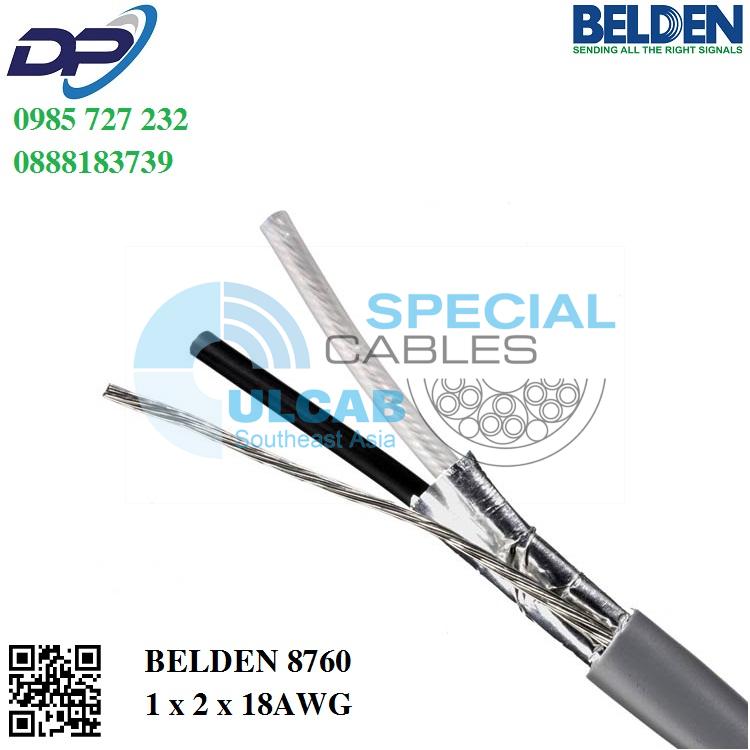

8760 Multi-Conductor – Shielded Twisted Pair Cable
General Description:
18 AWG stranded (16×30) tinned copper conductors, polyethylene insulation, twisted pair, overall Beldfoil®
shield (100% coverage), 20 AWG stranded tinned copper drain wire, PVC jacket.
Physical Characteristics (Overall)
Conductor
AWG:
| # Pairs | AWG | Stranding | Conductor Material |
| 1 | 18 | 16×30 | TC – Tinned Copper |
Total Number of Conductors: 2
Insulation
Insulation Material:
| Insulation Material | Wall Thickness (in.) |
| PE – Polyethylene | 0.018 |
Outer Shield
Outer Shield Material:
| Outer Shield Trade Name | Type | Outer Shield Material | Coverage (%) |
| Beldfoil® | Tape | Aluminum Foil-Polyester Tape w/Shorting Fold | 100 |
Outer Shield Drain Wire AWG:
| AWG | Stranding | Drain Wire Conductor Material |
| 20 | 7×28 | TC – Tinned Copper |
Outer Jacket
Outer Jacket Material:
| Outer Jacket Material | Nom. Wall Thickness (in.) |
| PVC – Polyvinyl Chloride | 0.028 |
Overall Cable
Overall Nominal Diameter: 0.222 in.
Pair
Pair Color Code Chart:
| Number | Color |
| 1 | Black & Clear |
Mechanical Characteristics (Overall)
- Operating Temperature Range: -20°C To +60°C
- Bulk Cable Weight: 25 lbs/1000 ft.
- Max. Recommended Pulling Tension: 54 lbs.
- Min. Bend Radius/Minor Axis: 2.250 in.
Applicable Specifications and Agency Compliance (Overall)
Applicable Standards & Environmental Programs
- NEC/(UL) Specification: CM
- CEC/C(UL) Specification: CM
- AWM Specification: UL Style 2092 (300 V 60°C)
- EU Directive 2011/65/EU (ROHS II): Yes
- EU CE Mark: Yes
- EU Directive 2000/53/EC (ELV): Yes
- EU Directive 2002/95/EC (RoHS): Yes
- EU RoHS Compliance Date (mm/dd/yyyy): 01/01/2004
- EU Directive 2002/96/EC (WEEE): Yes
- EU Directive 2003/11/EC (BFR): Yes
- CA Prop 65 (CJ for Wire & Cable): Yes
- MII Order #39 (China RoHS): Yes
Flame Test
- UL Flame Test: UL1685 UL Loading
Suitability
- Suitability – Indoor: Yes
Plenum/Non-Plenum
- Plenum (Y/N): No
- Plenum Number: 88760, 87760 or 82760
Electrical Characteristics (Overall)
Nom. Inductance:
| Inductance (µH/ft) |
| 0.18 |
Nom. Capacitance Conductor to Conductor:
| Capacitance (pF/ft) |
| 27.2 |
Nom. Conductor DC Resistance:
| DCR @ 20°C (Ohm/1000 ft) |
| 6.5 |
Max. Operating Voltage – UL:
| Voltage |
| 300 V RMS |
Max. Recommended Current:
| Current |
| 7.2 Amps per conductor @ 25°C |
Put Ups and Colors:
| Item # | Putup | Ship Weight | Color | Notes | Item Desc |
| 8760 060U1000 | 1,000 FT | 27.000 LB | CHROME | 2 #18 LDPE SH PVC | |
| 8760 060U500 | 500 FT | 14.000 LB | CHROME | 2 #18 LDPE SH PVC | |
| 8760 0601000 | 1,000 FT | 27.000 LB | CHROME | 2 #18 LDPE SH PVC | |
| 8760 06010000 | 10,000 FT | 270.000 LB | CHROME | C Y | 2 #18 LDPE SH PVC |
| 8760 06010001 | 10,000 FT | 270.000 LB | CHROME | C Z | 2 #18 LDPE SH PVC |
| 8760 06015000 | 15,000 FT | 435.000 LB | CHROME | C Y | 2 #18 LDPE SH PVC |
| 8760 0602000 | 2,000 FT | 54.000 LB | CHROME | C | 2 #18 LDPE SH PVC |
| 8760 060250 | 250 FT | 7.000 LB | CHROME | 2 #18 LDPE SH PVC | |
| 8760 060500 | 500 FT | 14.000 LB | CHROME | C | 2 #18 LDPE SH PVC |
| 8760 0605000 | 5,000 FT | 145.000 LB | CHROME | C | 2 #18 LDPE SH PVC |
