Power and control cables
Control Cabinet Single Cores
Various applications

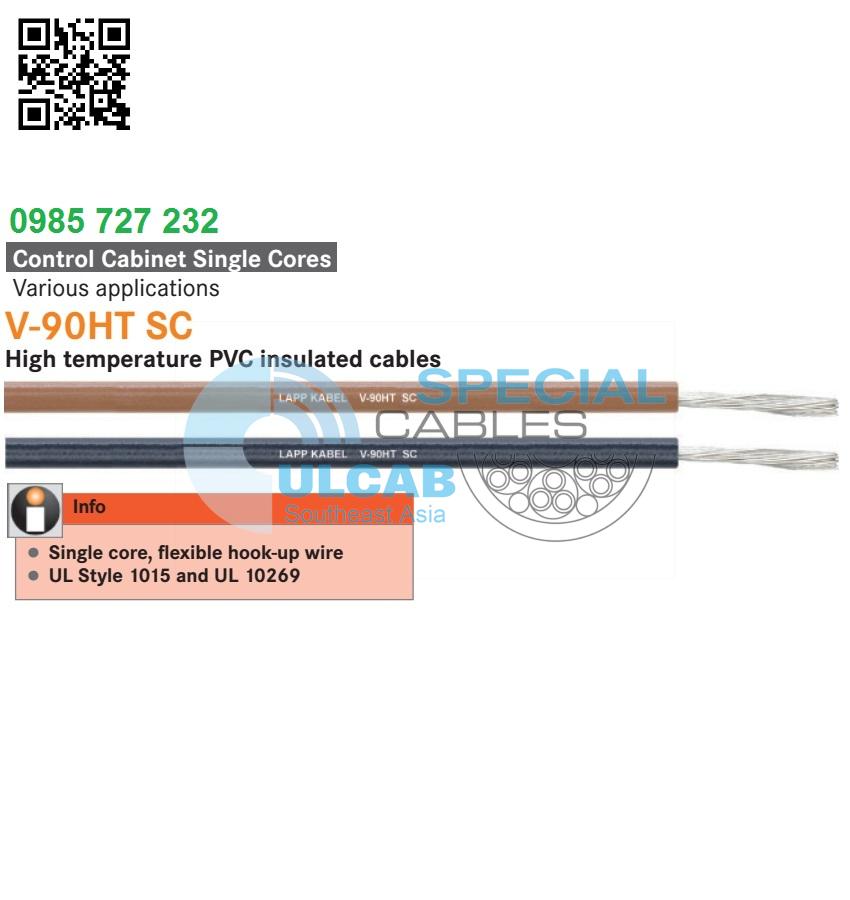

LAPPKABEL ÖLFLEX® V-90HT SC
High temperature PVC insulated cables
Info
|
■ Benefits
- The light weight and the practical hand holes in the spool packaging makes handling easy
- Higher economy by optimum processing volumes
■ Application range
- Suitable for assembling cable harnesses and wiring in the switch cabinet installation
- Used for installations in plants, devices, switch gear cabinets, where high temperature occur
■ Product features
- Flame retardant in acc. to VW -1, and IEC 60332-1-2
- Wide temperature range up to 105°C
■ Approvals (Norm references)
■ Design
- Fine strands of tinned annealed copper wire
- High temperature PVC based core insulation
■ Technical data
Core identification code
Please see note below
Based on
In acc. to UL 1015 and UL 10269
Specific insulation resistance
> 20 GOhm x cm
Conductor stranding
Fine wire acc. to
VDE 0295 Cl.5 / IEC 60228 Cl.5
Minimum bending radius
Fixed installation: 3 x cable diameter
Nominal voltage
U
0/U: 600/1000 V
Test voltage
3000 V
Temperature range
-20°C to +105°C
Article number | Conductor cross-section (mm²) |
Outer diameter (mm) |
Colour | Copper index (kg/km) |
Weight (kg/ km) |
3801000 | 0,5 | 2,5 | green-yellow | 4,8 | 11 |
3801001 | 0,5 | 2,5 | black | 4,8 | 11 |
3801002 | 0,5 | 2,5 | blue | 4,8 | 11 |
3801003 | 0,5 | 2,5 | brown | 4,8 | 11 |
3801004 | 0,5 | 2,5 | red | 4,8 | 11 |
3801005 | 0,5 | 2,5 | white | 4,8 | 11 |
3801006 | 0,5 | 2,5 | grey | 4,8 | 11 |
3801007 | 0,5 | 2,5 | violet | 4,8 | 11 |
3801008 | 0,5 | 2,5 | pink | 4,8 | 11 |
3801009 | 0,5 | 2,5 | orange | 4,8 | 11 |
38010011 | 0,5 | 2,5 | yellow | 4,8 | 11 |
38010012 | 0,5 | 2,5 | green | 4,8 | 11 |
38010014 | 0,75 | 2,7 | dark blue | 4,8 | 11 |
3801010 | 0,75 | 2,7 | green-yellow | 7,2 | 14,1 |
3801011 | 0,75 | 2,7 | black | 7,2 | 14,1 |
3801012 | 0,75 | 2,7 | blue | 7,2 | 14,1 |
3801013 | 0,75 | 2,7 | brown | 7,2 | 14,1 |
3801014 | 0,75 | 2,7 | red | 7,2 | 14,1 |
3801015 | 0,75 | 2,7 | white | 7,2 | 14,1 |
3801016 | 0,75 | 2,7 | grey | 7,2 | 14,1 |
3801017 | 0,75 | 2,7 | violet | 7,2 | 14,1 |
3801018 | 0,75 | 2,7 | pink | 7,2 | 14,1 |
3801019 | 0,75 | 2,7 | orange | 7,2 | 14,1 |
38010111 | 0,75 | 2,7 | yellow | 7,2 | 14,1 |
3801362 | 0,75 | 2,7 | green | 7,2 | 14,1 |
38010114 | 0,75 | 2,7 | dark blue | 7,2 | 14,1 |
3801020 | 1 | 2,9 | green-yellow | 9,6 | 17,2 |
3801021 | 1 | 2,9 | black | 9,6 | 17,2 |
3801022 | 1 | 2,9 | blue | 9,6 | 17,2 |
3801023 | 1 | 2,9 | brown | 9,6 | 17,2 |
3801024 | 1 | 2,9 | red | 9,6 | 17,2 |
3801025 | 1 | 2,9 | white | 9,6 | 17,2 |
3801026 | 1 | 2,9 | grey | 9,6 | 17,2 |
3801027 | 1 | 2,9 | violet | 9,6 | 17,2 |
3801028 | 1 | 2,9 | pink | 9,6 | 17,2 |
3801029 | 1 | 2,9 | orange | 9,6 | 17,2 |
38010211 | 1 | 2,9 | yellow | 9,6 | 17,2 |
38010212 | 1 | 2,9 | green | 9,6 | 17,2 |
38010214 | 1 | 2,9 | dark blue | 9,6 | 17,2 |
3801030 | 1,5 | 3,2 | green-yellow | 14,4 | 23,3 |
3801031 | 1,5 | 3,2 | black | 14,4 | 23,3 |
3801032 | 1,5 | 3,2 | blue | 14,4 | 23,3 |
3801033 | 1,5 | 3,2 | brown | 14,4 | 23,3 |
3801034 | 1,5 | 3,2 | red | 14,4 | 23,3 |
3801035 | 1,5 | 3,2 | white | 14,4 | 23,3 |
3801036 | 1,5 | 3,2 | grey | 14,4 | 23,3 |
3801037 | 1,5 | 3,2 | violet | 14,4 | 23,3 |
3801038 | 1,5 | 3,2 | pink | 14,4 | 23,3 |
3801039 | 1,5 | 3,2 | orange | 14,4 | 23,3 |
38010311 | 1,5 | 3,2 | yellow | 14,4 | 23,3 |
38010312 | 1,5 | 3,2 | green | 14,4 | 23,3 |
38010314 | 1,5 | 3,2 | dark blue | 14,4 | 23,3 |
3801040 | 2,5 | 3,7 | green-yellow | 24 | 34,4 |
3801041 | 2,5 | 3,7 | black | 24 | 34,4 |
3801042 | 2,5 | 3,7 | blue | 24 | 34,4 |
3801043 | 2,5 | 3,7 | brown | 24 | 34,4 |
3801044 | 2,5 | 3,7 | red | 24 | 34,4 |
3801045 | 2,5 | 3,7 | white | 24 | 34,4 |
3801046 | 2,5 | 3,7 | grey | 24 | 34,4 |
3801047 | 2,5 | 3,7 | violet | 24 | 34,4 |
3801048 | 2,5 | 3,7 | pink | 24 | 34,4 |
3801049 | 2,5 | 3,7 | orange | 24 | 34,4 |
38010411 | 2,5 | 3,7 | yellow | 24 | 34,4 |
38010412 | 2,5 | 3,7 | green | 24 | 34,4 |
38010414 | 2,5 | 3,7 | dark blue | 24 | 34,4 |
3801050 | 4 | 4,3 | green-yellow | 38,4 | 54,2 |
3801051 | 4 | 4,3 | black | 38,4 | 54,2 |
3801052 | 4 | 4,3 | blue | 38,4 | 54,2 |
3801053 | 4 | 4,3 | brown | 38,4 | 54,2 |
3801054 | 4 | 4,3 | red | 38,4 | 54,2 |
3801055 | 4 | 4,3 | white | 38,4 | 54,2 |
3801056 | 4 | 4,3 | grey | 38,4 | 54,2 |
3801057 | 4 | 4,3 | violet | 38,4 | 54,2 |
3801058 | 4 | 4,3 | pink | 38,4 | 54,2 |
3801059 | 4 | 4,3 | orange | 38,4 | 54,2 |
38010511 | 4 | 4,3 | yellow | 38,4 | 54,2 |
38010512 | 4 | 4,3 | green | 38,4 | 54,2 |
38010514 | 4 | 4,3 | dark blue | 38,4 | 54,2 |
3801060 | 6 | 4,9 | green-yellow | 57,6 | 87,9 |
3801061 | 6 | 4,9 | black | 57,6 | 87,9 |
3801062 | 6 | 4,9 | blue | 57,6 | 87,9 |
3801063 | 6 | 4,9 | brown | 57,6 | 87,9 |
3801064 | 6 | 4,9 | red | 57,6 | 87,9 |
3801065 | 6 | 4,9 | white | 57,6 | 87,9 |
3801066 | 6 | 4,9 | grey | 57,6 | 87,9 |
3801067 | 6 | 4,9 | violet | 57,6 | 87,9 |
3801068 | 6 | 4,9 | pink | 57,6 | 87,9 |
3801069 | 6 | 4,9 | orange | 57,6 | 87,9 |
38010611 | 6 | 4,9 | yellow | 57,6 | 87,9 |
38010612 | 6 | 4,9 | green | 57,6 | 87,9 |
38010614 | 6 | 4,9 | dark blue | 57,6 | 87,9 |
3801070 | 10 | 6,5 | green-yellow | 96 | 138,3 |
3801071 | 10 | 6,5 | black | 96 | 138,3 |
3801072 | 10 | 6,5 | blue | 96 | 138,3 |
3801073 | 10 | 6,5 | brown | 96 | 138,3 |
3801074 | 10 | 6,5 | red | 96 | 138,3 |
3801075 | 10 | 6,5 | white | 96 | 138,3 |
3801076 | 10 | 6,5 | grey | 96 | 138,3 |
3801077 | 10 | 6,5 | violet | 96 | 138,3 |
3801078 | 10 | 6,5 | pink | 96 | 138,3 |
3801079 | 10 | 6,5 | orange | 96 | 138,3 |
38010711 | 10 | 6,5 | yellow | 96 | 138,3 |
38010712 | 10 | 6,5 | green | 96 | 138,3 |
38010714 | 10 | 6,5 | dark blue | 96 | 138,3 |
3801080 | 16 | 8,4 | green-yellow | 153,6 | 230,6 |
3801081 | 16 | 8,4 | black | 153,6 | 230,6 |
3801082 | 16 | 8,4 | blue | 153,6 | 230,6 |
3801083 | 16 | 8,4 | brown | 153,6 | 230,6 |
3801084 | 16 | 8,4 | red | 153,6 | 230,6 |
3801085 | 16 | 8,4 | white | 153,6 | 230,6 |
3801086 | 16 | 8,4 | grey | 153,6 | 230,6 |
3801087 | 16 | 8,4 | violet | 153,6 | 230,6 |
3801088 | 16 | 8,4 | pink | 153,6 | 230,6 |
3801089 | 16 | 8,4 | orange | 153,6 | 230,6 |
38010811 | 16 | 8,4 | yellow | 153,6 | 230,6 |
38010812 | 16 | 8,4 | green | 153,6 | 230,6 |
38010814 | 16 | 8,4 | dark blue | 153,6 | 230,6 |
3802410 | 25 | 10,2 | green-yellow | 240 | 305 |
3802411 | 25 | 10,2 | black | 240 | 305 |
3802412 | 25 | 10,2 | blue | 240 | 305 |
3802413 | 25 | 10,2 | brown | 240 | 305 |
3802414 | 25 | 10,2 | red | 240 | 305 |
3802415 | 25 | 10,2 | white | 240 | 305 |
3802416 | 25 | 10,2 | grey | 240 | 305 |
3802417 | 25 | 10,2 | violet | 240 | 305 |
3802418 | 25 | 10,2 | pink | 240 | 305 |
3802419 | 25 | 10,2 | orange | 240 | 305 |
38024111 | 25 | 10,2 | yellow | 240 | 305 |
38024112 | 25 | 10,2 | green | 240 | 305 |
38024114 | 25 | 10,2 | dark blue | 240 | 305 |
3802420 | 35 | 12,4 | green-yellow | 336 | 437 |
3802421 | 35 | 12,4 | black | 336 | 437 |
3802422 | 35 | 12,4 | blue | 336 | 437 |
3802423 | 35 | 12,4 | brown | 336 | 437 |
3802424 | 35 | 12,4 | red | 336 | 437 |
3802425 | 35 | 12,4 | white | 336 | 437 |
3802426 | 35 | 12,4 | grey | 336 | 437 |
3802427 | 35 | 12,4 | violet | 336 | 437 |
3802428 | 35 | 12,4 | pink | 336 | 437 |
3802429 | 35 | 12,4 | orange | 336 | 437 |
38024211 | 35 | 12,4 | yellow | 336 | 437 |
38024212 | 35 | 12,4 | green | 336 | 437 |
38024214 | 35 | 12,4 | dark blue | 336 | 437 |
3802430 | 50 | 13,9 | green-yellow | 480 | 588 |
3802431 | 50 | 13,9 | black | 480 | 588 |
3802432 | 50 | 13,9 | blue | 480 | 588 |
3802433 | 50 | 13,9 | brown | 480 | 588 |
3802434 | 50 | 13,9 | red | 480 | 588 |
3802435 | 50 | 13,9 | white | 480 | 588 |
3802436 | 50 | 13,9 | grey | 480 | 588 |
3802437 | 50 | 13,9 | violet | 480 | 588 |
3802438 | 50 | 13,9 | pink | 480 | 588 |
3802439 | 50 | 13,9 | orange | 480 | 588 |
38024311 | 50 | 13,9 | yellow | 480 | 588 |
38024312 | 50 | 13,9 | green | 480 | 588 |
38024314 | 50 | 13,9 | dark blue | 480 | 588 |
3802440 | 70 | 16 | green-yellow | 672 | 790 |
3802441 | 70 | 16 | black | 672 | 790 |
3802442 | 70 | 16 | blue | 672 | 790 |
3802443 | 70 | 16 | brown | 672 | 790 |
3802444 | 70 | 16 | red | 672 | 790 |
3802445 | 70 | 16 | white | 672 | 790 |
3802446 | 70 | 16 | grey | 672 | 790 |
3802447 | 70 | 16 | violet | 672 | 790 |
3802448 | 70 | 16 | pink | 672 | 790 |
3802449 | 70 | 16 | orange | 672 | 790 |
38024411 | 70 | 16 | yellow | 672 | 790 |
38024412 | 70 | 16 | green | 672 | 790 |
38024414 | 70 | 16 | dark blue | 672 | 790 |
3802450 | 95 | 18 | green-yellow | 912 | 1051 |
3802451 | 95 | 18 | black | 912 | 1051 |
3802452 | 95 | 18 | blue | 912 | 1051 |
3802453 | 95 | 18 | brown | 912 | 1051 |
3802454 | 95 | 18 | red | 912 | 1051 |
3802455 | 95 | 18 | white | 912 | 1051 |
3802456 | 95 | 18 | grey | 912 | 1051 |
3802457 | 95 | 18 | violet | 912 | 1051 |
3802458 | 95 | 18 | pink | 912 | 1051 |
3802459 | 95 | 18 | orange | 912 | 1051 |
38024511 | 95 | 18 | yellow | 912 | 1051 |
38024512 | 95 | 18 | green | 912 | 1051 |
38024514 | 95 | 18 | dark blue | 912 | 1051 |
3802460 | 120 | 20,5 | green-yellow | 1,152.0 | 1330 |
3802461 | 120 | 20,5 | black | 1,152.0 | 1330 |
3802462 | 120 | 20,5 | blue | 1,152.0 | 1330 |
3802463 | 120 | 20,5 | brown | 1,152.0 | 1330 |
3802464 | 120 | 20,5 | red | 1,152.0 | 1330 |
3802465 | 120 | 20,5 | white | 1,152.0 | 1330 |
3802466 | 120 | 20,5 | grey | 1,152.0 | 1330 |
3802467 | 120 | 20,5 | violet | 1,152.0 | 1330 |
3802468 | 120 | 20,5 | pink | 1,152.0 | 1330 |
3802469 | 120 | 20,5 | orange | 1,152.0 | 1330 |
38024611 | 120 | 20,5 | yellow | 1,152.0 | 1330 |
38024612 | 120 | 20,5 | green | 1,152.0 | 1330 |
38024614 | 120 | 20,5 | dark blue | 1,152.0 | 1330 |
3802470 | 150 | 22,2 | green-yellow | 1,440.0 | 1628 |
3802471 | 150 | 22,2 | black | 1,440.0 | 1628 |
3802472 | 150 | 22,2 | blue | 1,440.0 | 1628 |
3802473 | 150 | 22,2 | brown | 1,440.0 | 1628 |
3802474 | 150 | 22,2 | red | 1,440.0 | 1628 |
3802475 | 150 | 22,2 | white | 1,440.0 | 1628 |
3802476 | 150 | 22,2 | grey | 1,440.0 | 1628 |
3802477 | 150 | 22,2 | violet | 1,440.0 | 1628 |
3802478 | 150 | 22,2 | pink | 1,440.0 | 1628 |
3802479 | 150 | 22,2 | orange | 1,440.0 | 1628 |
38024711 | 150 | 22,2 | yellow | 1,440.0 | 1628 |
38024712 | 150 | 22,2 | green | 1,440.0 | 1628 |
38024714 | 150 | 22,2 | dark blue | 1,440.0 | 1628 |
3802480 | 185 | 24,2 | green-yellow | 1,776.0 | 1984 |
3802481 | 185 | 24,2 | black | 1,776.0 | 1984 |
3802482 | 185 | 24,2 | blue | 1,776.0 | 1984 |
3802483 | 185 | 24,2 | brown | 1,776.0 | 1984 |
3802484 | 185 | 24,2 | red | 1,776.0 | 1984 |
3802485 | 185 | 24,2 | white | 1,776.0 | 1984 |
3802486 | 185 | 24,2 | grey | 1,776.0 | 1984 |
3802487 | 185 | 24,2 | violet | 1,776.0 | 1984 |
3802488 | 185 | 24,2 | pink | 1,776.0 | 1984 |
3802489 | 185 | 24,2 | orange | 1,776.0 | 1984 |
38024811 | 185 | 24,2 | yellow | 1,776.0 | 1984 |
38024812 | 185 | 24,2 | green | 1,776.0 | 1984 |
38024814 | 185 | 24,2 | dark blue | 1,776.0 | 1984 |
3802490 | 240 | 29,5 | green-yellow | 2,304.0 | 2514 |
3802491 | 240 | 29,5 | black | 2,304.0 | 2514 |
3802492 | 240 | 29,5 | blue | 2,304.0 | 2514 |
3802493 | 240 | 29,5 | brown | 2,304.0 | 2514 |
3802494 | 240 | 29,5 | red | 2,304.0 | 2514 |
3802495 | 240 | 29,5 | white | 2,304.0 | 2514 |
3802496 | 240 | 29,5 | grey | 2,304.0 | 2514 |
3802497 | 240 | 29,5 | violet | 2,304.0 | 2514 |
3802498 | 240 | 29,5 | pink | 2,304.0 | 2514 |
3802499 | 240 | 29,5 | orange | 2,304.0 | 2514 |
38024911 | 240 | 29,5 | yellow | 2,304.0 | 2514 |
38024912 | 240 | 29,5 | green | 2,304.0 | 2514 |
38024914 | 240 | 29,5 | dark blue | 2,304.0 | 2514 |
