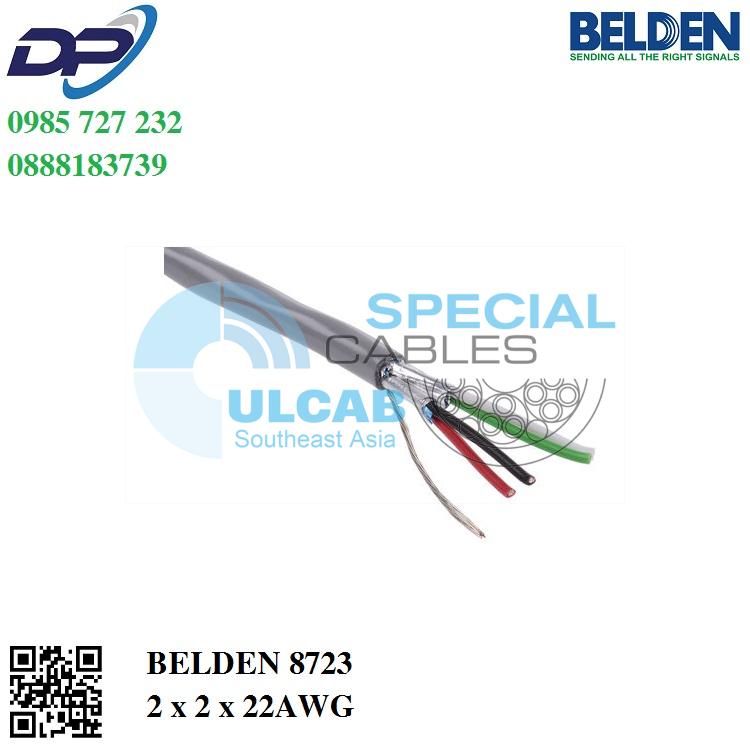

Cáp Điều Khiển BELDEN ( 8723 ) 2 x 2 x 22AWG | Shielded | Chống Nhiễu Băng nhôm Foil
8723 Multi-Conductor – Shielded Twisted Pair Cable
General Description:
22 AWG stranded (7×30) tinned copper conductors, polypropylene insulation, twisted pairs, individually
Beldfoil® shielded (100% coverage), 24 AWG stranded tinned copper drain wire, PVC jacket.
Physical Characteristics (Overall)
Conductor
AWG:
| # Pairs | AWG | Stranding | Conductor Material |
| 2 | 22 | 7×30 | TC – Tinned Copper |
Total Number of Conductors: 4
Insulation
Insulation Material:
| Insulation Material | Wall Thickness (in.) |
| PP – Polypropylene | 0.009 |
Inner Shield
Inner Shield Material:
| Inner Shield Trade Name | Type | Inner Shield Material | Coverage (%) | Description |
| Beldfoil® (Z-Fold®) | Tape | Aluminum Foil-Polyester Tape | 100 | foil side out |
Inner Shield Drain Wire AWG:
| AWG |
| 24 |
Inner Shield Drain Wire Stranding: 7×32
Inner Shield Drain Wire Conductor Material: TC – Tinned Copper
Outer Shield
Outer Shield Material:
| Outer Shield Material |
| Unshielded |
Outer Jacket
Outer Jacket Material:
| Outer Jacket Material | Nom. Wall Thickness (in.) |
| PVC – Polyvinyl Chloride | 0.02 |
Overall Cable
Overall Nominal Diameter: 0.160 in.
Pair
Pair Color Code Chart:
| Number | Color |
| 1 | Red & Black |
| 2 | Green & White |
Mechanical Characteristics (Overall)
- Operating Temperature Range: -20°C To +75°C
- UL Temperature Rating: 60°C
- Bulk Cable Weight: 17 lbs/1000 ft.
- Max. Recommended Pulling Tension: 42 lbs.
- Min. Bend Radius/Minor Axis: 1.750 in.
Applicable Specifications and Agency Compliance (Overall)
Applicable Standards & Environmental Programs
- NEC/(UL) Specification: CM
- CEC/C(UL) Specification: CM
- EU Directive 2011/65/EU (ROHS II): Yes
- EU CE Mark: Yes
- EU Directive 2000/53/EC (ELV): Yes
- EU Directive 2002/95/EC (RoHS): Yes
- EU RoHS Compliance Date (mm/dd/yyyy): 01/01/2004
- EU Directive 2002/96/EC (WEEE): Yes
- EU Directive 2003/11/EC (BFR): Yes
- CA Prop 65 (CJ for Wire & Cable): Yes
- MII Order #39 (China RoHS): Yes
Flame Test
- UL Flame Test: UL1685 UL Loading
Plenum/Non-Plenum
- Plenum (Y/N): No
- Plenum Number: 82723, 87723, 88723
Electrical Characteristics (Overall)
Nom. Characteristic Impedance:
| Impedance (Ohm) |
| 52 |
Nom. Inductance:
| Inductance (µH/ft) |
| 0.17 |
Nom. Capacitance Conductor to Conductor:
| Capacitance (pF/ft) |
| 33 |
Nom. Capacitance Cond. to Other Conductor & Shield:
| Capacitance (pF/ft) |
| 62 |
Nominal Velocity of Propagation:
| VP (%) |
| 66 |
Nom. Conductor DC Resistance:
| DCR @ 20°C (Ohm/1000 ft) |
| 14.7 |
Ind. Pair Nominal Shield DC Resistance @ 20 Deg. C: 15 Ohm/1000 ft
Max. Operating Voltage – UL:
| Voltage |
| 300 V RMS |
Max. Recommended Current:
| Current |
| 2.3 Amps per conductor @ 25°C |
Put Ups and Colors:
| Item # | Putup | Ship Weight | Color | Notes | Item Desc |
| 8723 060U1000 | 1,000 FT | 19.000 LB | CHROME | 2 SH PR #22 PP PVC | |
| 8723 060U2000 | 2,000 FT | 36.000 LB | CHROME | 2 SH PR #22 PP PVC | |
| 8723 060U500 | 500 FT | 10.000 LB | CHROME | 2 SH PR #22 PP PVC | |
| 8723 060100 | 100 FT | 3.200 LB | CHROME | 2 SH PR #22 PP PVC | |
| 8723 0601000 | 1,000 FT | 19.000 LB | CHROME | C | 2 SH PR #22 PP PVC |
| 8723 06010000 | 10,000 FT | 190.000 LB | CHROME | C Y | 2 SH PR #22 PP PVC |
| 8723 06010001 | 10,000 FT | 190.000 LB | CHROME | C | 2 SH PR #22 PP PVC |
| 8723 06015000 | 15,000 FT | 285.000 LB | CHROME | 2 SH PR #22 PP PVC | |
| 8723 0601640 | 1,640 FT | 31.160 LB | CHROME | 2 SH PR #22 PP PVC | |
| 8723 0602000 | 2,000 FT | 38.000 LB | CHROME | C | 2 SH PR #22 PP PVC |
| 8723 0603280 | 3,280 FT | 62.320 LB | CHROME | C | 2 SH PR #22 PP PVC |
| 8723 060500 | 500 FT | 9.500 LB | CHROME | 2 SH PR #22 PP PVC | |
| 8723 0605000 | 5,000 FT | 90.000 LB | CHROME | C | 2 SH PR #22 PP PVC |
| 8723 0609999 | 10,000 FT | 190.000 LB | CHROME | C Y | 2 SH PR #22 PP PVC |
