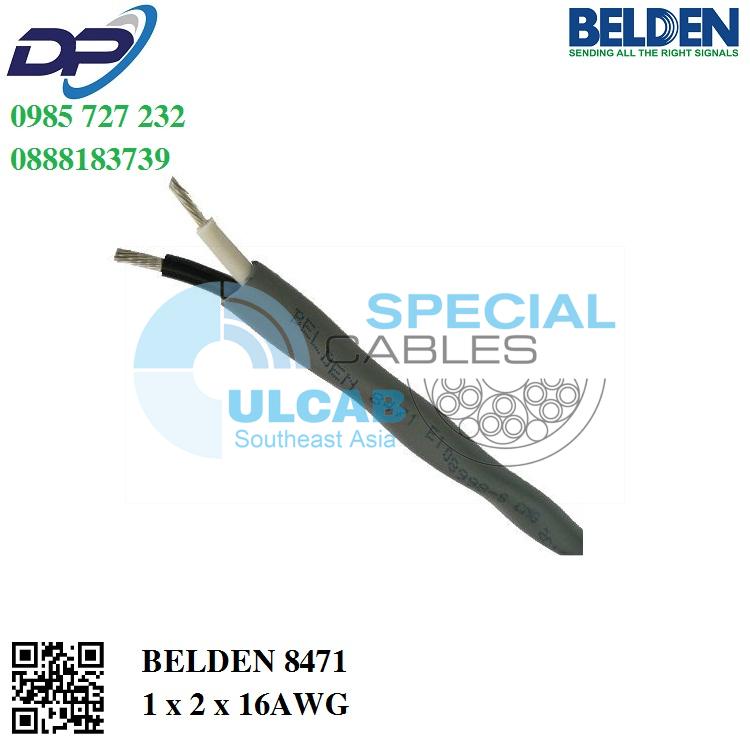

Cáp Điều Khiển BELDEN ( 8471 ) 1 x 2 x 16AWG | Unshielded
8471 Multi-Conductor – High-Conductivity Copper Speaker Cable Twisted Jacketed Con
General Description:
16 AWG stranded (19×29) tinned copper conductors, PVC insulation, twisted pair, PVC jacket.
Physical Characteristics (Overall)
Conductor
AWG:
| # Pairs | AWG | Stranding | Conductor Material |
| 1 | 16 | 19×29 | TC – Tinned Copper |
Total Number of Conductors: 2
Insulation
Insulation Material:
| Insulation Material | Wall Thickness (in.) |
| PVC – Polyvinyl Chloride | 0.023 |
Inner Shield
Inner Shield Material:
| Inner Shield Material |
| Unshielded |
Outer Shield
Outer Shield Material:
| Outer Shield Material |
| Unshielded |
Outer Jacket
Outer Jacket Material:
| Outer Jacket Material | Nom. Wall Thickness (in.) |
| PVC – Polyvinyl Chloride | 0.032 |
Overall Cable
Overall Cabling Lay Length & Direction:
| Length (in.) | Direction | Twists (twist/ft) |
| 2 | Left Hand | 6 |
Overall Nominal Diameter: 0.274 in.
Pair
Pair Color Code Chart:
| Number | Color |
| 1 | Black & White |
Mechanical Characteristics (Overall)
- Operating Temperature Range: -20°C To +80°C
- Non-UL Temperature Rating: 60°C (UL AWM Style 2598)
- Bulk Cable Weight: 36 lbs/1000 ft.
- Max. Recommended Pulling Tension: 61 lbs.
- Min. Bend Radius/Minor Axis: 2.750 in.
Applicable Specifications and Agency Compliance (Overall)
Applicable Standards & Environmental Programs
- NEC/(UL) Specification: CL3, CMG
- NEC Articles: 800, 725
- CEC/C(UL) Specification: CMG
- AWM Specification: UL Style 2598 (300 V 60°C)
- EU Directive 2011/65/EU (ROHS II): Yes
- EU CE Mark: Yes
- EU Directive 2000/53/EC (ELV): Yes
- EU Directive 2002/95/EC (RoHS): Yes
- EU RoHS Compliance Date (mm/dd/yyyy): 04/01/2005
- EU Directive 2002/96/EC (WEEE): Yes
- EU Directive 2003/11/EC (BFR): Yes
- CA Prop 65 (CJ for Wire & Cable): Yes
- MII Order #39 (China RoHS): Yes
Flame Test
- UL Flame Test: UL1685 FT4 Loading
- CSA Flame Test: FT4
Suitability
- Suitability – Indoor: Yes
Plenum/Non-Plenum
- Plenum (Y/N): No
Electrical Characteristics (Overall)
Nom. Inductance:
| Inductance (µH/ft) |
| 0.19 |
Nom. Capacitance Conductor to Conductor:
| Capacitance (pF/ft) |
| 33 |
Nom. Conductor DC Resistance:
| DCR @ 20°C (Ohm/1000 ft) |
| 4.49 |
Max. Operating Voltage – UL:
| Voltage |
| 300 V RMS |
Max. Recommended Current:
| Description | Current |
| 10C temperature rise | 6.1 Amps per conductor @ 25°C ambient |
Put Ups and Colors:
| Item # | Putup | Ship Weight | Color | Notes | Item Desc |
| 8471 060U1000 | 1,000 FT | 38.000 LB | CHROME | 1 PR #16 PVC FRPVC | |
| 8471 060U500 | 500 FT | 20.500 LB | CHROME | 1 PR #16 PVC FRPVC | |
| 8471 0601000 | 1,000 FT | 40.000 LB | CHROME | C | 1 PR #16 PVC FRPVC |
| 8471 060500 | 500 FT | 20.000 LB | CHROME | C | 1 PR #16 PVC FRPVC |
| 8471 0605000 | 5,000 FT | 195.000 LB | CHROME | 1 PR #16 PVC FRPVC |
DATA SHEET
