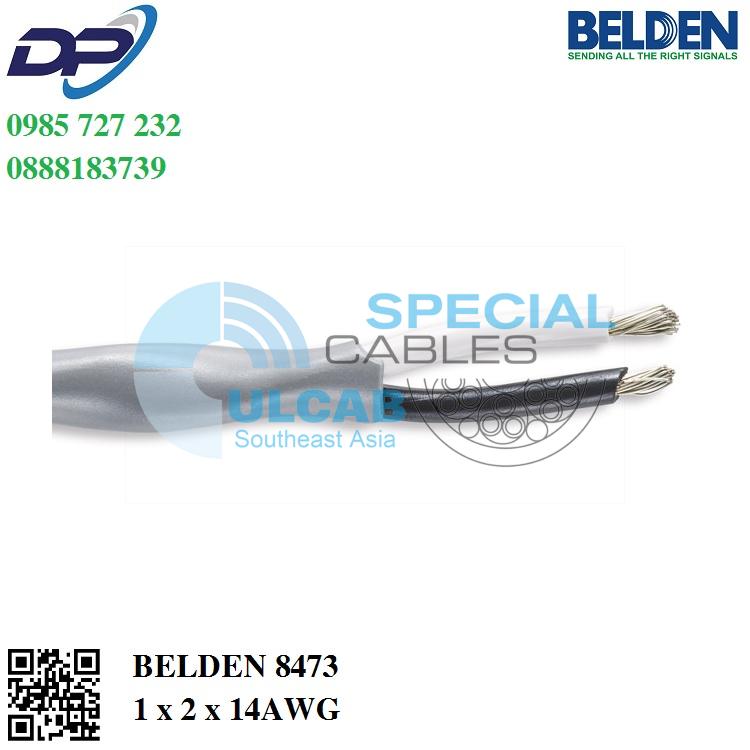

Cáp Điều Khiển BELDEN ( 8473 ) 1 x 2 x 14AWG | Unshielded
8473 Multi-Conductor – High-Conductivity Copper Speaker Cable Twisted Jacketed Con
General Description:
14 AWG stranded (42×30) tinned copper conductors, PVC insulation, twisted pair, PVC jacket.
Physical Characteristics (Overall)
Conductor
AWG:
| # Pairs | AWG | Stranding | Conductor Material |
| 1 | 14 | 42×30 | TC – Tinned Copper |
Total Number of Conductors: 2
Insulation
Insulation Material:
| Insulation Material | Wall Thickness (in.) |
| PVC – Polyvinyl Chloride | 0.032 |
Insulation Resistance: 1000 Megohms/1000 ft. @ 500 VDC
Outer Shield
Outer Shield Material:
| Outer Shield Material |
| Unshielded |
Outer Jacket
Outer Jacket Material:
| Outer Jacket Material | Nom. Wall Thickness (in.) |
| PVC – Polyvinyl Chloride | 0.04 |
Overall Cable
Overall Nominal Diameter: 0.356 in.
Pair
Pair Color Code Chart:
| Number | Color |
| 1 | Black & White |
Mechanical Characteristics (Overall)
- Operating Temperature Range: -20°C To +90°C
- Bulk Cable Weight: 58 lbs/1000 ft.
- Max. Recommended Pulling Tension: 94 lbs.
- Min. Bend Radius/Minor Axis: 3.500 in.
Applicable Specifications and Agency Compliance (Overall)
Applicable Standards & Environmental Programs
- NEC/(UL) Specification: CL3
- AWM Specification: UL Style 2587 (600 V 90°C)
- CSA Specification: FAS90
- EU Directive 2011/65/EU (ROHS II): Yes
- EU CE Mark: Yes
- EU Directive 2000/53/EC (ELV): Yes
- EU Directive 2002/95/EC (RoHS): Yes
- EU RoHS Compliance Date (mm/dd/yyyy): 04/01/2005
- EU Directive 2002/96/EC (WEEE): Yes
- EU Directive 2003/11/EC (BFR): Yes
- CA Prop 65 (CJ for Wire & Cable): Yes
- MII Order #39 (China RoHS): Yes
Flame Test
- UL Flame Test: UL1685 UL Loading
- CSA Flame Test: FT1
Plenum/Non-Plenum
- Plenum (Y/N): No
Electrical Characteristics (Overall)
Nom. Inductance:
| Inductance (µH/ft) |
| 0.19 |
Nom. Capacitance Conductor to Conductor:
| Capacitance (pF/ft) |
| 22 |
Nom. Conductor DC Resistance:
| DCR @ 20°C (Ohm/1000 ft) |
| 2.86 |
Max. Operating Voltage – UL:
| Voltage | Description |
| 600 V RMS | UL AWM Style 2587 |
| 300 V RMS | CL3 |
Max. Recommended Current:
| Current |
| 9.6 Amps per conductor @ 25°C (10°C rise in temp) |
Notes (Overall)
Notes: Nominal Breakdown Voltage – Jacket 20 KV RMS; Nominal Breakdown Voltage Between Conductors 25 KV RMS. See NEC guidelines for applicable CL3 voltage ratings.
Put Ups and Colors:
| Item # | Putup | Ship Weight | Color | Notes | Item Desc |
| 8473 060U500 | 500 FT | 31.000 LB | CHROME | 1 PR #14 PVC PVC | |
| 8473 0601000 | 1,000 FT | 62.000 LB | CHROME | C | 1 PR #14 PVC PVC |
| 8473 060500 | 500 FT | 32.500 LB | CHROME | C | 1 PR #14 PVC PVC |
| 8473 0605000 | 5,000 FT | 320.000 LB | CHROME | C Z | 1 PR #14 PVC PVC |
