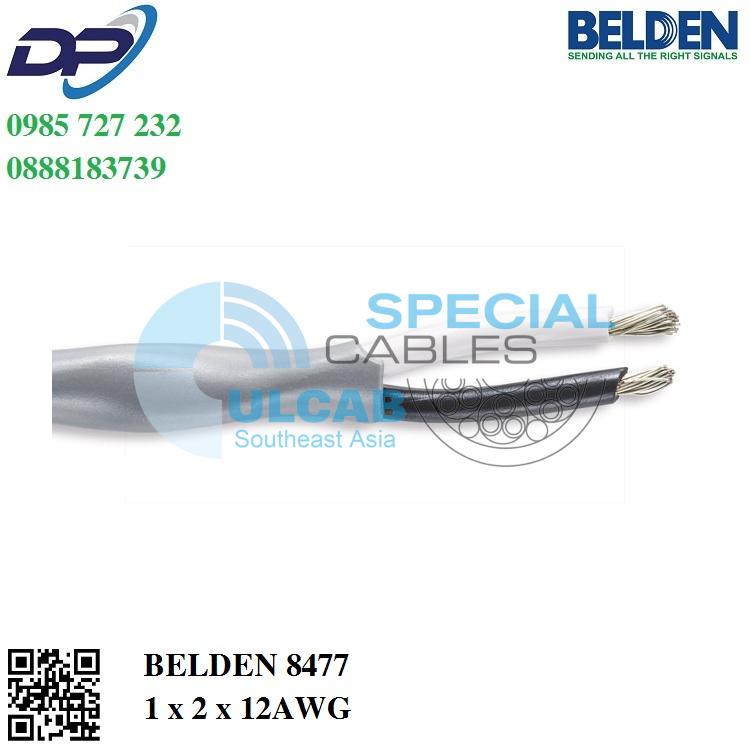

Cáp Điều Khiển BELDEN ( 8477 ) 1 x 2 x 12AWG | Unshielded
8477 Multi-Conductor – High-Conductivity Copper Speaker Cable Twisted Jacket Con
General Description:
12 AWG stranded (65×30) tinned copper conductors, PVC insulation, twisted pair, PVC jacket.
Physical Characteristics (Overall)
Conductor
AWG:
| # Pairs | AWG | Stranding | Conductor Material |
| 1 | 12 | 65×30 | TC – Tinned Copper |
Total Number of Conductors: 2
Insulation
Insulation Material:
| Insulation Material | Wall Thickness (in.) |
| PVC – Polyvinyl Chloride | 0.033 |
Outer Shield
Outer Shield Material:
| Outer Shield Material |
| Unshielded |
Outer Jacket
Outer Jacket Material:
| Outer Jacket Material | Nom. Wall Thickness (in.) |
| PVC – Polyvinyl Chloride | 0.035 |
Overall Cable
Overall Nominal Diameter: 0.386 in.
Pair
Pair Color Code Chart:
| Number | Color |
| 1 | Black & White |
Mechanical Characteristics (Overall)
- Operating Temperature Range: -20°C To +90°C
- Non-UL Temperature Rating: 90°C (UL AWM Style 2587)
- Bulk Cable Weight: 80 lbs/1000 ft.
- Max. Recommended Pulling Tension: 150 lbs.
- Min. Bend Radius/Minor Axis: 4 in.
Applicable Specifications and Agency Compliance (Overall)
Applicable Standards & Environmental Programs
- NEC/(UL) Specification: CL3R
- AWM Specification: UL Style 2587 (600 V 90°C)
- EU Directive 2011/65/EU (ROHS II): Yes
- EU CE Mark: Yes
- EU Directive 2000/53/EC (ELV): Yes
- EU Directive 2002/95/EC (RoHS): Yes
- EU RoHS Compliance Date (mm/dd/yyyy): 04/01/2005
- EU Directive 2002/96/EC (WEEE): Yes
- EU Directive 2003/11/EC (BFR): Yes
- CA Prop 65 (CJ for Wire & Cable): Yes
- MII Order #39 (China RoHS): Yes
Flame Test
- UL Flame Test: UL1666 Vertical Shaft
Plenum/Non-Plenum
- Plenum (Y/N): No
Electrical Characteristics (Overall)
Nom. Inductance:
| Inductance (µH/ft) |
| 0.18 |
Nom. Capacitance Conductor to Conductor:
| Capacitance (pF/ft) |
| 35 |
Nom. Conductor DC Resistance:
| DCR @ 20°C (Ohm/1000 ft) |
| 1.8 |
Max. Operating Voltage – UL:
| Voltage | Description |
| 300 V RMS | CL3R |
| 600 V RMS | UL AWM Style 2587 |
Max. Recommended Current:
| Current |
| 13 Amps per conductor @ 25°C |
Notes (Overall)
Notes: See NEC Guidelines for applicable CL3 voltage ratings.
Put Ups and Colors:
| Item # | Putup | Ship Weight | Color | Notes | Item Desc |
| 8477 060U500 | 500 FT | 41.000 LB | CHROME | 2 #12 PVC FRPVC | |
| 8477 0601000 | 1,000 FT | 86.000 LB | CHROME | C | 2 #12 PVC FRPVC |
| 8477 060500 | 500 FT | 43.000 LB | CHROME | C | 2 #12 PVC FRPVC |
| 8477 0605000 | 5,000 FT | 455.000 LB | CHROME | C Z | 2 #12 PVC FRPVC |
DATA SHEET
