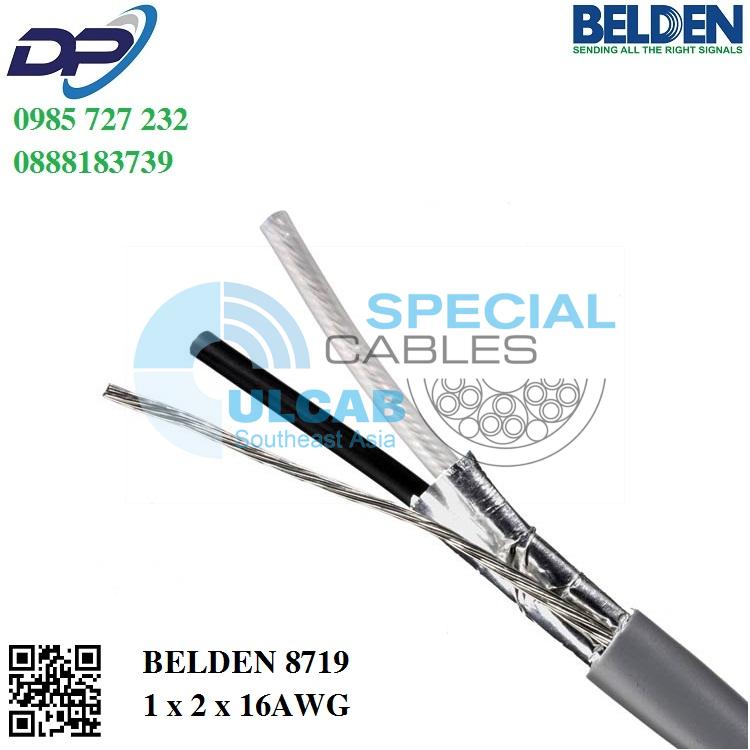

Cáp Điều Khiển BELDEN ( 8719 ) 1 x 2 x 16AWG | Shielded | Chống Nhiễu Băng nhôm foil
8719 Multi-Conductor – Single-Pair Cable
General Description:
16 AWG stranded (19×29) TC conductors, polyethylene insulation, twisted pair, overall Beldfoil® shield
(100% coverage), 18 AWG stranded TC drain wire, PVC jacket.
Physical Characteristics (Overall)
Conductor
AWG:
| # Pairs | AWG | Stranding | Conductor Material |
| 1 | 16 | 19×29 | TC – Tinned Copper |
Total Number of Conductors: 2
Insulation
Insulation Material:
| Insulation Material | Wall Thickness (in.) |
| PE – Polyethylene | 0.032 |
Outer Shield
Outer Shield Material:
| Outer Shield Trade Name | Type | Outer Shield Material | Coverage (%) |
| Beldfoil® | Tape | Aluminum Foil-Polyester Tape w/Shorting Fold | 100 |
Outer Shield Drain Wire AWG:
| AWG | Stranding | Drain Wire Conductor Material |
| 18 | Stranded | TC – Tinned Copper |
Outer Jacket
Outer Jacket Material:
| Outer Jacket Material | Nom. Wall Thickness (in.) |
| PVC – Polyvinyl Chloride | 0.032 |
Overall Cable
Overall Nominal Diameter: 0.313 in.
Pair
Pair Color Code Chart:
| Number | Color |
| 1 | Black & Clear |
Pair Lay Length & Direction:
| Lay Length (in.) | Twists (twist/ft) | Direction |
| 2.75 | 4.4 | Left Hand |
Mechanical Characteristics (Overall)
- Operating Temperature Range: -20°C To +80°C
- UL Temperature Rating: 80°C (UL AWM Style 20253)
- Bulk Cable Weight: 44 lbs/1000 ft.
- Max. Recommended Pulling Tension: 102 lbs.
- Min. Bend Radius/Minor Axis: 3.250 in.
Applicable Specifications and Agency Compliance (Overall)
Applicable Standards & Environmental Programs
- NEC/(UL) Specification: CL2, CM
- NEC Articles: 800, 725
- CEC/C(UL) Specification: CM
- AWM Specification: UL Style 20253 (600 V 80°C)
- EU Directive 2011/65/EU (ROHS II): Yes
- EU CE Mark: Yes
- EU Directive 2000/53/EC (ELV): Yes
- EU Directive 2002/95/EC (RoHS): Yes
- EU RoHS Compliance Date (mm/dd/yyyy): 01/01/2004
- EU Directive 2002/96/EC (WEEE): Yes
- EU Directive 2003/11/EC (BFR): Yes
- CA Prop 65 (CJ for Wire & Cable): Yes
- MII Order #39 (China RoHS): Yes
Flame Test
- UL Flame Test: UL1685 UL Loading
- CSA Flame Test: FT1
Suitability
- Suitability – Indoor: Yes
Plenum/Non-Plenum
- Plenum (Y/N): No
Electrical Characteristics (Overall)
Nom. Characteristic Impedance:
| Impedance (Ohm) |
| 65 |
Nom. Inductance:
| Inductance (µH/ft) |
| 0.2 |
Nom. Capacitance Conductor to Conductor:
| Capacitance (pF/ft) |
| 23 |
Nom. Capacitance Cond. to Other Conductor & Shield:
| Capacitance (pF/ft) |
| 44 |
Nom. Conductor DC Resistance:
| DCR @ 20°C (Ohm/1000 ft) |
| 4.5 |
Max. Operating Voltage – UL:
| Voltage | Description |
| 600 V RMS | UL AWM Style 20253 |
| 300 V RMS | UL type CM |
| 150 V RMS | UL type CL2 |
Max. Recommended Current:
| Description | Current |
| 10C Temperature Rise | 7 Amps per conductor @ 25°C Ambient |
Put Ups and Colors:
| Item # | Putup | Ship Weight | Color | Notes | Item Desc |
| 8719 060U1000 | 1,000 FT | 46.000 LB | CHROME | 2 #16 LDPE FS PVC | |
| 8719 060U500 | 500 FT | 24.000 LB | CHROME | 2 #16 LDPE FS PVC | |
| 8719 0601000 | 1,000 FT | 49.000 LB | CHROME | C | 2 #16 LDPE FS PVC |
| 8719 06010000 | 10,000 FT | 430.000 LB | CHROME | C Y | 2 #16 LDPE FS PVC |
| 8719 0602000 | 2,000 FT | 96.000 LB | CHROME | C | 2 #16 LDPE FS PVC |
| 8719 060500 | 500 FT | 25.500 LB | CHROME | C | 2 #16 LDPE FS PVC |
| 8719 0605000 | 5,000 FT | 245.000 LB | CHROME | C | 2 #16 LDPE FS PVC |
DATA SHEET
