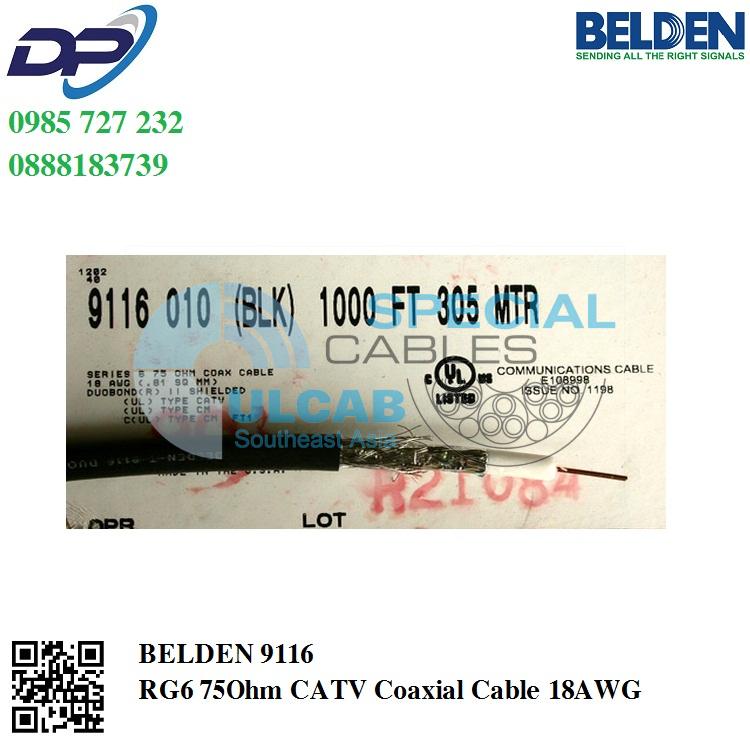

Cáp Đồng Trục BELDEN ( 9116 ) RG6 75Ohm CATV Coaxial Cable 18AWG
9116 Coax – CATV Cable
General Description:
Series 6, 18 AWG solid .040″ bare copper-covered steel conductor, gas-injected foam polyethylene
insulation, Duobond® II + aluminum braid shield (60% coverage), PVC jacket.
Physical Characteristics (Overall)
Conductor
AWG:
| # Coax | AWG | Stranding | Conductor Material | Dia. (in.) |
| 1 | 18 | Solid | BCCS – Bare Copper Covered Steel | 0.04 |
Total Number of Conductors: 1
Insulation
Insulation Material:
| Insulation Material | Dia. (in.) |
| Gas-injected FPE – Foam Polyethylene | 0.18 |
Outer Shield
Outer Shield Material:
| Layer # | Outer Shield Trade Name | Type | Outer Shield Material | Coverage (%) |
| 1 | Bonded Duofoil® | Tape | Bonded Aluminum Foil-Polyester Tape-Aluminum Foil | 100 |
| 2 | Braid | AL – Aluminum | 60 |
Outer Jacket
Outer Jacket Material:
| Outer Jacket Material |
| PVC – Polyvinyl Chloride |
Overall Cable
Overall Nominal Diameter: 0.270 in.
Mechanical Characteristics (Overall)
- Operating Temperature Range: -40°C To +80°C
- Bulk Cable Weight: 27 lbs/1000 ft.
- Max. Recommended Pulling Tension: 126 lbs.
- Min. Bend Radius/Minor Axis: 2.750 in
Applicable Specifications and Agency Compliance (Overall)
Applicable Standards & Environmental Programs
- NEC/(UL) Specification: CATV, CM
- CEC/C(UL) Specification: CM
- EU Directive 2011/65/EU (ROHS II): Yes
- EU CE Mark: Yes
- EU Directive 2000/53/EC (ELV): Yes
- EU Directive 2002/95/EC (RoHS): Yes
- EU RoHS Compliance Date (mm/dd/yyyy): 01/01/2004
- EU Directive 2002/96/EC (WEEE): Yes
- EU Directive 2003/11/EC (BFR): Yes
- CA Prop 65 (CJ for Wire & Cable): Yes
- MII Order #39 (China RoHS): Yes
- Series Type: Series 6
Flame Test
- UL Flame Test: UL1581 Vertical Flame and FT-1 Flame Test
Plenum/Non-Plenum
- Plenum (Y/N): No
- Plenum Number: 9116P
Electrical Characteristics (Overall)
Nom. Characteristic Impedance:
| Impedance (Ohm) | Tolerance (Ohms) |
| 75 | ± 3 |
Nom. Inductance:
| Inductance (µH/ft) |
| 0.097 |
Nom. Capacitance Conductor to Shield:
| Capacitance (pF/ft) |
| 16.2 |
Nominal Velocity of Propagation:
| VP (%) |
| 83 |
Nominal Delay:
| Delay (ns/ft) |
| 1.2 |
Nom. Conductor DC Resistance:
| DCR @ 20°C (Ohm/1000 ft) |
| 28 |
Nominal Outer Shield DC Resistance:
| DCR @ 20°C (Ohm/1000 ft) |
| 9 |
Max. Attenuation:
| Freq. (MHz) | Attenuation (dB/100 ft.) |
| 5 | 0.67 |
| 55 | 1.6 |
| 211 | 2.87 |
| 270 | 3.24 |
| 300 | 3.43 |
| 350 | 3.72 |
| 400 | 4 |
| 450 | 4.26 |
| 550 | 4.71 |
| 750 | 5.59 |
| 870 | 6 |
| 1000 | 6.54 |
Max. Operating Voltage – UL:
| Voltage |
| 300 V RMS |
Minimum Structural Return Loss:
| Description | Freq. (MHz) | Start Freq. (MHz) | Stop Freq. (MHz) | Min. SRL (dB) |
| 5 | 1000 | 20 |
Sweep Test
Sweep Testing: 5 MHz – 1 GHz
Put Ups and Colors:
| Item # | Putup | Ship Weight | Color | Notes | Item Desc |
| 9116 Q5HU1000 | 1,000 FT | 29.000 LB | WHITE, NEUTRAL | #18 GIFHDLDPE SH PVC | |
| 9116 Q5H1000 | 1,000 FT | 30.000 LB | WHITE, NEUTRAL | #18 GIFHDLDPE SH PVC | |
| 9116 009N1000 | 1,000 FT | 30.000 LB | WHITE | C | #18 GIFHDLDPE SH PVC |
| 9116 009U1000 | 1,000 FT | 29.000 LB | WHITE | #18 GIFHDLDPE SH PVC | |
| 9116 0091000 | 1,000 FT | 30.000 LB | WHITE | #18 GIFHDLDPE SH PVC | |
| 9116 009500 | 500 FT | 15.500 LB | WHITE | #18 GIFHDLDPE SH PVC | |
| 9116 010N1000 | 1,000 FT | 30.000 LB | BLACK | C | #18 GIFHDLDPE SH PVC |
| 9116 010S700 | 700 FT | 18.900 LB | BLACK | #18 GIFHDLDPE SH PVC | |
| 9116 010U1000 | 1,000 FT | 29.000 LB | BLACK | #18 GIFHDLDPE SH PVC | |
| 9116 010U500 | 500 FT | 15.000 LB | BLACK | #18 GIFHDLDPE SH PVC | |
| 9116 0101000 | 1,000 FT | 30.000 LB | BLACK | C | #18 GIFHDLDPE SH PVC |
| 9116 010500 | 500 FT | 15.500 LB | BLACK | #18 GIFHDLDPE SH PVC | |
| 9116 290U1000 | 1,000 FT | 29.000 LB | BEIGE, LIGHT | #18 GIFHDLDPE SH PVC | |
