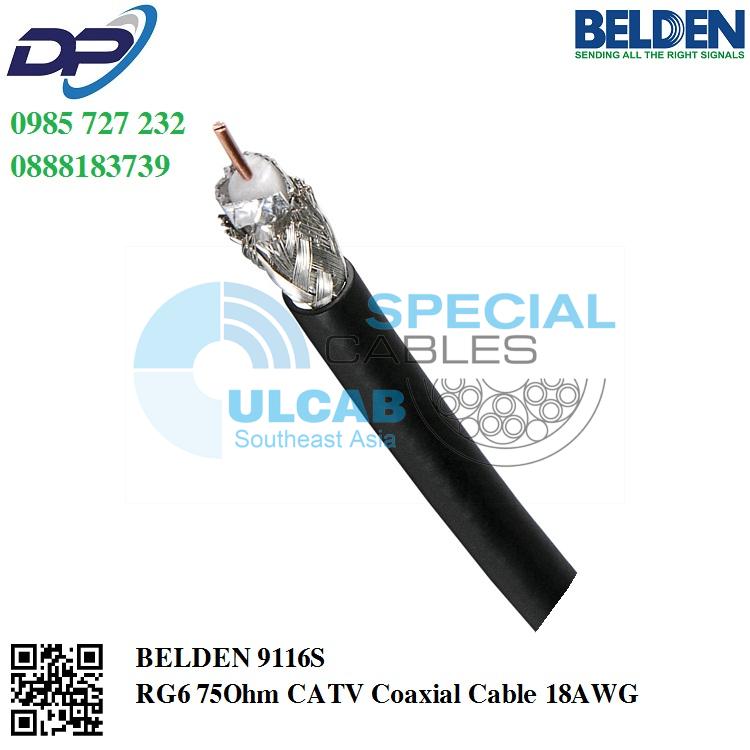

Cáp Đồng Trục BELDEN ( 9116S ) RG6 75Ohm CATV Coaxial Cable 18AWG
9116S RG 6 CATV Cable
Marking
9116S 75 OHM RG6/U DUAL SHIELD CATV BY BELDEN-AU xxxM “XXX” means
continuous footage marking 000-305M PER CYCLE
Description
Rated Temperature (oC) 75
Application
Drop cable for CATV and MATV distribution
Reference Standard
SCTE IPS-SP-001, UL1655, UL13, UL444
Construction
| Center Conductor | Copper Clad Steel |
| AWG | 18 |
| Dia.(mm) | 1.02 |
| Insulation | Skin Foam PE |
| Nom. Thickness(mm) | 1.78 |
| Insulation Dia. (±0.08mm) | 4.57 |
| Al-maylar Shield (Overlapping, % | >=25 |
| Braid Shield | Aluminium&Magnesium Wire |
| Construction (mm) | 16/4/0.16 |
| Coverage Area (%) | >=60 |
| Jacket | PVC |
| Nom. Thickness (mm) | 0.7 |
| Min. Thickness(mm) | 0.6 |
| Cable Dia.(±0.15mm) | 6.7 |
| Weight (kg/km) | 45 |
Performance
Electrical Characteristics:
| Frequency | Attenuation |
| (MHz) | (dB/100m) |
| 5 | 2.23 |
| 55 | 5.25 |
| 211 | 9.91 |
| 270 | 11.29 |
| 300 | 11.94 |
| 350 | 12.89 |
| 400 | 13.81 |
| 450 | 14.67 |
| 550 | 16.24 |
| 750 | 19.13 |
| 870 | 20.66 |
| 1000 | 22.24 |
| Dielectric Strength (kV/min) | 1 |
| Impedence (±3.0ohms) | 75 |
| SRL (dB,5~1000MHz) | >=20 |
| Capacitance (pF/m) | 53.1 |
| Conductor DCR@ 20°C (ohms/km) | <=119 |
| Velocity Of Propagation (%) | >=83 |
Mechanical Characteristics:
| Test Object | Jacket |
| Test Material | PVC |
| Before Tensile Strength (Mpa) | >=13.8 |
| Aging Elongation (%) | >=100 |
| Aging Condition (°C×hrs) | 100 × 240 |
| After Tensile Strength (Mpa) | >= 85% unaged |
| Aging Elongation (%) | >= 50% unaged |
| Cold Bend (-20±2°C×4hrs) | No crack |
| Jacket impact test(-15°C) | No crack |
| Jacket Longitudinal Shrinkage (%) | <=5 |
| Center Conductor Break Strength (N) | >=641 |
| Center Conductor Bond To dielectric (N) | >=2.3 |
DATA SHEET
