Cáp Đồng Trục LS-VINA ( RG6 (CCS/A80%) BK ) Coaxial Cable 18AWG, Chống Nhiễu Lưới (phủ 80%), PVC Black

Cáp Đồng Trục LS-VINA ( RG6 (CCS/A80%) BK ) Coaxial Cable 18AWG, Chống Nhiễu Lưới (phủ 80%), PVC Black

Xuất Xứ: Korea

Description

. Flexible braided 75 ohm coaxial drop cable
. Transmission of RF signals and power for voice, data and video applications and CATV/Internet

Lists

. RG-6 60%, 80%, 90%
. RG-6 60% Tri-shielded
. RG-6 60% with messenger
. RG-6 60% Tri-shielded with messenger

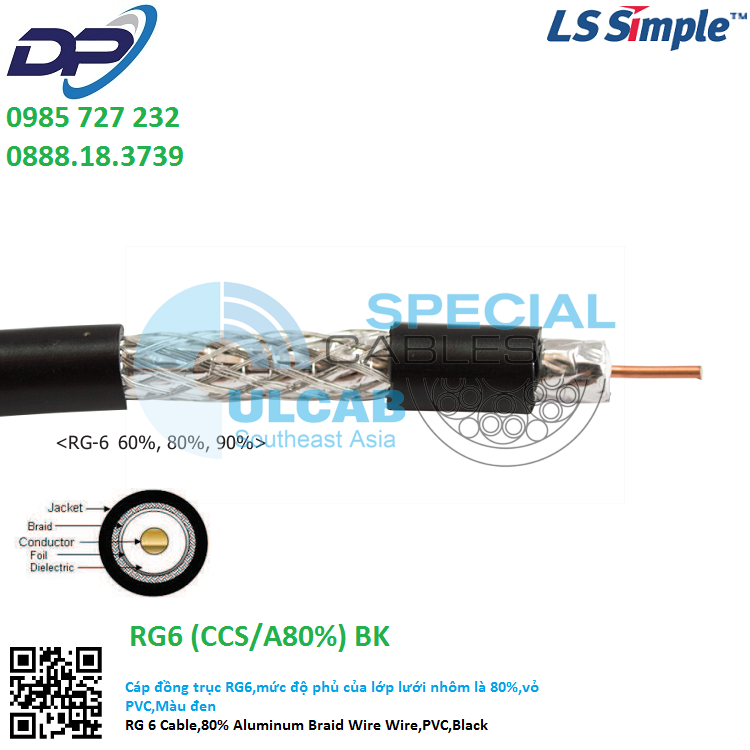

RG6 80%:  18 gauge (1.02mm) copper clad steel center conductor; gas expanded
polyethylene dielectric; first shield aluminum foiloverlap bonded to dielectric; second shield
of aluminum braid wire (80% coverage); jacket of PVC Black color.

Operating Temperature Range:  -20℃ to +60℃

Cable Construction

ITEM		DESCRIPTION
		RG6 60%	RG6 80%	RG6 90%	RG6 60% TRI	RG6 60% M	RG6 60% TRI M
Inner conductor		CCS	CCS	CCS	CCS	CCS	CCS
Diameter[mm]		1.02±0.01	1.02±0.01	1.02±0.01	1.02±0.01	1.02±0.01	1.02±0.01
Dielectric		Foamed PE	Foamed PE	Foamed PE	Foamed PE	Foamed PE	Foamed PE
Diameter[mm]		Nom. 4.57	Nom. 4.57	Nom. 4.57	Nom. 4.57	Nom. 4.57	Nom. 4.57
Outer conductor	1st shield	Bonded Al foil	Bonded Al foil	Bonded Al foil	Bonded Al foil	Bonded Al foil	Bonded Al foil
	Thick[mm]	0.04724 ~ 0.08128	0.04724 ~ 0.08128	0.04724 ~ 0.08128	0.04724 ~ 0.08128	0.04724 ~ 0.08128	0.04724 ~ 0.08128
	Dia.[mm]	4.78±0.13	4.78±0.13	4.78±0.13	4.78±0.13	4.78±0.13	4.78±0.13
	2nd shield	Aluminum Braid	Aluminum Braid	Aluminum Braid	Aluminum Braid	Aluminum Braid	Aluminum Braid
	Dia.[mm]	0.120±0.01	0.120±0.01	0.120±0.01	0.120±0.01	0.120±0.01	0.120±0.01
	Coverage	Min. 59%	Min. 79%	Min. 89%	Min. 59%	Min. 59%	Min. 59%
	3rd shield	–	–	–	Al foil	–	Al foil
Jacket		PVC	PVC	PVC	PVC	PVC	PVC
Diameter[mm]		6.90±0.20	6.90±0.20	6.90±0.20	6.93±0.20	6.90±0.20	6.90±0.20
Thickness[mm]		Nom. 0.80	Nom. 0.80	Nom. 0.80	Nom. 0.80	Nom. 0.80	Nom. 0.80
Messenger	Conductor	–	–		–	Galvanized steel	Galvanized steel
	Dia.[mm]	–	–		–	1.30±0.05	1.30±0.05

Characteristics

Electrical Characteristic

ITEM			UNIT	RG6 (Single Tape & Braid )	RG6 (Tri-shield )
DC Resistance		Inner	Ω/km	≤102
		DC Loop	Ω/km	≤135 for 0.16mm AL Braiding ≤150 for 0.12mm AL Braiding	≤121.1 for 0.16mm AL Braiding ≤145 for 0.12mm AL Braiding
Capacitance(pF/m)			pF/m	50±3
Relative Propagation Velocity			%	≥82
SRL(dB)	5MHz-1000MHz		dB	20
	1000MHz-3000MHz		dB	15
Impedance			Ω	75±3

Attenuation

Frequency (MHz)	Max. (dB/100m)
5	2.60
55	5.25
211	10.00
250	10.82
270	11.04
300	11.64
330	12.26
350	12.63
400	13.61
450	14.43
500	15.29
550	16.08
600	16.73
750	18.54
870	20.04
1000	21.49

Mechanical and Environmental Performance

Mininum Braid Wire Tensile Strength ( AL )	43,000 psi for 0.16mm 31,900 psi for 0.12mm
Center Conductor Minimum Break Strengh ( CCS )	144 lbf
Corrosion Resistance	No signs of corrosion
Cold Bend Test	No visible damage to jacket
Cold Impact Test	No visible damage to jacket
Maximum Jacket Longitudinal Shrinkage	5% of initial length under test
Minimum Center Conductor Bond to Dielectric	5 lbs
