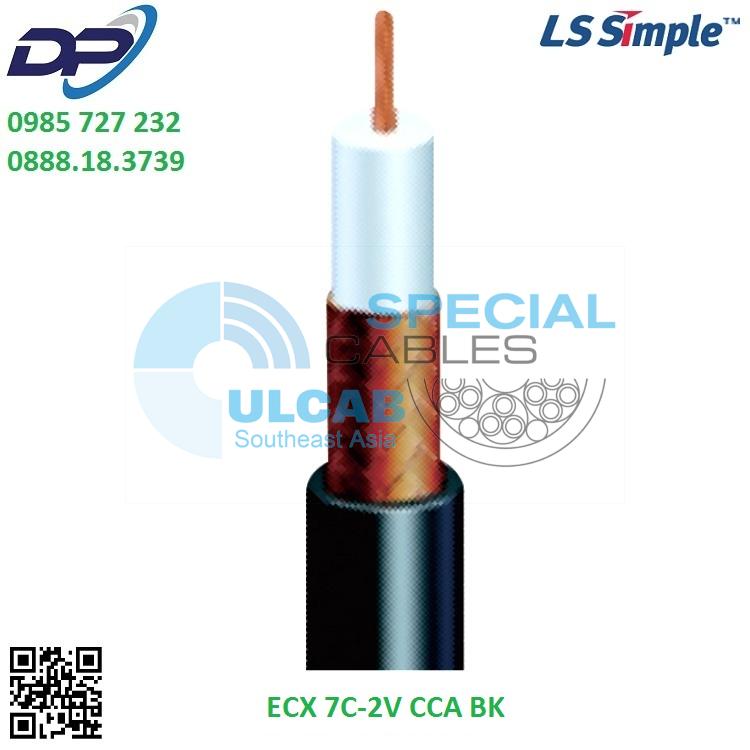

Coaxial Cable
ECX
- Description
- . High frequency coaxial cable of 75ohms chrateristic impedance with annealed copepr wire as inner conductor,
PE insulation, annealed copper wire braid as outer conductor, PVC jacket
- Lists
- ECX 3C-2V CCA BK
- ECX 5C-2V CCA BK
- ECX 7C-2V CCA BK
- ECX 10C-2V CCA BK
- Cable Construction
-
ITEM UNIT 3C 5C 7C 10C Inner
ConductorMaterial – Annealed
copper wireAnnealed
copper wireAnnealed
copper wireAnnealed
copper wireConstruction mm 1/0.5 1/0.8 7/0.4 7/0.5 Diameter mm 0.5±0.02 0.8±0.02 1.2±0.05 1.5±0.05 Insulation Material – PE PE PE PE Thickness mm 1.3±0.1 2.05±0.1 3.05±0.2 3.95±0.2 Diameter mm 3.1±0.2 4.9±0.2 7.3±0.3 9.4±0.3 Color – Natural Natural Natural Natural Outer Conductor Material – Annealed
copper wireAnnealed
copper wireAnnealed
copper wireAnnealed
copper wireIndividual wire diameter mm 0.14 0.14 0.18 0.20 Number of wires
per carrierea 5 (8) 7 (10) 8 (10) 10 (10) Number of carriers ea 24 (16) 24 (16) 24 (16) 24 (16) Lay Length mm 26 (26) 42 (30) 45 (25) 60 (22) Jacket Material – PVC PVC PVC PVC Thickness mm 0.8±0.08 0.9±0.09 1.1±0.11 1.3±0.13 Diameter mm 5.4±0.5 7.4±0.5 10.4±0.5 13.0±0.6
- Technical Details
- Electrical Characteristic
ITEM UNIT 3C 5C 7C 10C Conductor Resistance (max.) Ω/㎞ 91.4 35.9 20.7 13.1 Insulation Resistance (min.) ㏁/㎞ 1000 1000 1000 1000 Dielectric Withstand Voltage AC, V/min 1000/1 1000/1 1000/1 1000/1 Capacitance pF/km 67±3 67±3 67±3 67±3 Relative Propagation Velocity % 66±2 66±2 66±2 66±2 Impedance (MEAN) Ω 75±3 75±3 75±3 75±3 Attenuation
(@ 20℃, 10MHz)dB/km 42 27 22 18
- Maximum attenuation is less than 115% of specification
- Attenuation at 200MHz, 3000Mhz complies with KS C 3610 standard
- Electrical performance is tested on status of cable bundle or reel package
Physical Characteristic
| ITEM | UNIT | SPECIFICATION | REMARK | |
| Insulation (before heat-aged) |
Tensile Strength | kgf/mm2 | ≥ 1.0 | According to KS C 3004 / clause 19 |
| Elongation | % | ≥ 400 | ||
| Insulation (after heat-aged) |
Tensile Strength | % | ≥ 80 | According to KS C 3004 / clause 20 |
| Elongation | % | ≥ 65 | ||
| Jacket (before heat-aged) |
Tensile Strength | kgf/mm2 | ≥ 1.0 | According to KS C 3004 / clause 19 |
| Elongation | % | ≥ 200 | ||
| Jacket (after heat-aged) |
Tensile Strength | % | ≥ 80 | According to KS C 3004 / clause 20 |
| Elongation | % | ≥ 80 | ||
| Jacket Shrinkage (100℃/4h) | % | ≥ 10 | According to KS C 3004 / clause 24 |
|
| Cold Bend Test (-20℃/1h) | – | No visible crack | According to KS C 3004 / clause 23 |
|
| Cold Impact Test (-10℃/2.5min) | – | No visible crack | According to KS C 3004 / clause 25 |
|
| Conductor Discoloration | – | No corrosion/discoloration on inner & outer conductor | According to KS C 3002 / clause 3 |
|
| Min. Bending Radius | – | 6 x Cable Diameter | – | |
