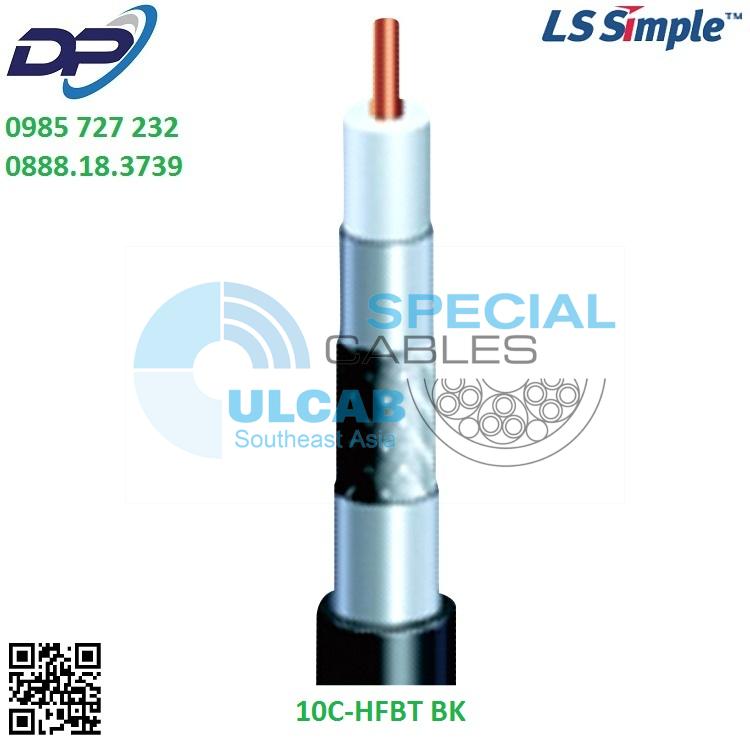

Cáp Đồng Trục LS-VINA ( 10C-HFBT BK ) Lưới nhôm phủ 60%, Vỏ PVC Black, Coaxial Cable 75Ohms

Cable Construction

5C-HFBT series

ITEM			UNIT	5C-HFBT	5C-HFBT-A
Inner conductor		Material	–	Copper	CCS
		Diameter	mm	1.20 ± 0.03	1.02 ± 0.05
Insulation		Material	–	Foamed PE	Foamed PE
		Thickness	mm	1.90 ± 0.05	1.73 ± 0.05
		Diameter	mm	5.00 ± 0.1	4.57 ± 0.1
		Color	–	Natural	Natural
Outer conductor	1st shield	Material	–	Al/mylar tape	Al/mylar tape
		Thickness	mm	0.042 ± 0.003	0.051 ± 0.003
	2nd shield	Material	–	Tin-coated Annealed Copper (TA)	Aluminum wire (A)
		Individual wire diameter	mm	0.120 ± 0.005	0.150 ± 0.01
		Construction	Number of wires per carrier x number of carriers	6 x 16	3 x 16
		Lay length	mm	46 ± 5	32 ± 5
	3rd shield	Material	–	Al/mylar tape	Al/mylar tape
		Thickness	mm	0.025 ± 0.003	0.025 ± 0.003
Jacket		Material	–	PVC	PVC
		Color	–	Black	Black
		Thickness	mm	0.90 ± 0.1	0.83 ± 0.1
		Diameter	mm	7.40 ± 0.5	7.06 ± 0.5

7C-HFBT series

ITEM			UNIT	SPECIFICATION
Inner conductor		Material	–	CCS	Cu
		Diameter	mm	1.63 ± 0.1	1.80 ± 0.1
Insulation		Material	–	Foamed PE	Foamed PE
		Thickness	mm	2.74 ± 0.1	2.75 ± 0.1
		Diameter	mm	7.11 ± 0.2	7.30 ± 0.2
		Color	–	Natural	Natural
Outer Conductor	1st shield	Material	–	Al/mylar tape	Al/mylar tape
		Thickness	mm	0.025 ± 0.003	0.042 ± 0.003
	2nd shield	Material	–	Aluminum wire	Tinned copper wire
		Individual wire diameter	mm	0.156	0.140
		Construction	Number of wires per carrier x number of carriers	6 x 16	5 x 16
		Lay length	mm	42 ± 5	40 ± 5
	3rd shield	Material	–	Al/mylar tape	Al/mylar tape
		Thickness	mm	0.025 ± 0.003	0.025 ± 0.003
Jacket		Material	–	PVC	PVC
		Thickness	mm	1.0 ± 0.125	1.0 ± 0.125
		Diameter	mm	10.0 ± 0.5	10.0 ± 0.5

10C-HFBT series

ITEM			UNIT	10C-HFBT	10C-HFBT-CCA
Inner conductor		Material	–	Copper	CCA (Copper Clad Aluminum)
		Diameter	mm	2.40 ± 0.03	2.40 ± 0.15
Insulation		Material	–	Foamed PE	Foamed PE
		Thickness	mm	3.50 ± 0.1	3.50 ± 0.1
		Diameter	mm	9.40 ± 0.2	9.40 ± 0.2
		Color	–	Natural	Natural
Outer Conductor	1st shield	Material	–	Al/mylar tape	Al/mylar tape
		Thickness	mm	0.042 ± 0.003	0.042 ± 0.003
	2nd shield	Material	–	Tin-coated Annealed Copper	Aluminum
		Individual wire diameter	mm	0.160	0.160
		Construction	Number of wires per carrier x number of carriers	7 x 16	7 x 16
		Lay length	mm	40 ± 5	40 ± 5
	3rd shield	Material	–	Al/mylar tape	Al/mylar tape
		Thickness	mm	0.025 ± 0.003	0.025 ± 0.003
Jacket		Material	–	PVC	PVC
		Color	–	Black	Black
		Thickness	mm	1.0 ± 0.2	1.0 ± 0.2
		Diameter	mm	12.3 ± 0.5	12.3 ± 0.5

Technical Details

Electrical Characteristics

ITEM		UNIT	10C-HFBT	10C-HFBT-CCA
DC Resistance	Inner Conductor	Ω/km	≤ 7.81	≤ 12
	Outer Conductor	Ω/km	≤ 21	≤ 21
	DC Loop	Ω/km	≤ 28.81	≤ 33
Insulation Resistance		MΩ/hm	≥ 1000	≥ 1000
Dielectric Withstand Voltage		V/min	AC 1000/1	AC 1000/1
Capacitance		pF/km	52 ± 3	52 ± 3
Relative Propagation Velocity		%	≥ 83	≥ 83
Standing Wave Ratio	50 ~ 2150MHz	–	≤ 1.2	≤ 1.2
Impedance	MEAN	Ω	75 ± 3	75 ± 3
Attenuation ( @ 20℃ )		dB/km ( Max. )
	50 MHz		25.4	25.4
	150 MHz		42.2	42.2
	250 MHz		54	54
	350 MHz		65.7	65.7
	450 MHz		73.4	73.4
	750 MHz		96.2	96.2
	806 MHz		101.2	101.2
	950 MHz		107.2	107.2
	1200 MHz		118.1	118.1
	1450 MHz		129.6	129.6
	1800 MHz		148.1	148.1
	2150 MHz		162.1	162.1
Shield Coverage		%	≥ 60 ( 3 layer shield )	≥ 60 ( 3 layer shield )

• The Shield Coverage complies with KS C 3326 specification.
