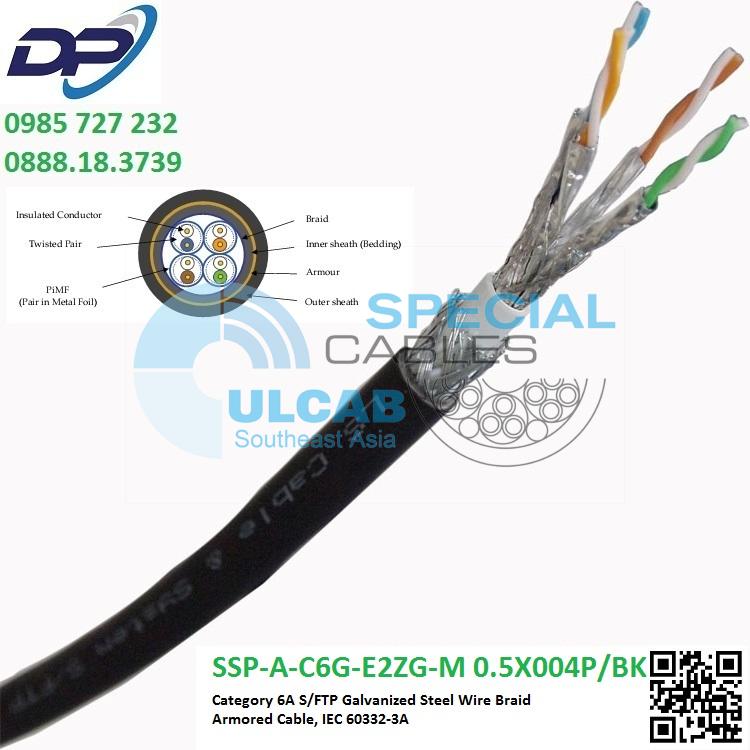

Cáp Mạng LS VINA CAT6A S/FTP Galvanized Steel Wire Braid Armored Cable, IEC 60332-3A ( SSP-A-C6G-E2ZG-M 0.5X004P/BK )

Specialty Cable (Armor, Moving)

GSWB S/FTP Category 6A Cable

Description

• Galvanized Steel Wire Braid S/FTP Category 6A LSZH Cable
• Adequate for industrial use environment such as marine, offshore etc.
• Meet electrical performance based on ISO/IEC 11801, IEC 61156-5
• Meet flame retardant of IEC 60332-1 & 3(Category A)

Part Lists

Description	Part Number
Category 6A S/FTP Galvanized Steel Wire Braid Armored Cable, IEC 60332-1	SSP-A-C6G-E2ZG-X 0.5X004P/BK
Category 6A S/FTP Galvanized Steel Wire Braid Armored Cable, IEC 60332-3A	SSP-A-C6G-E2ZG-M 0.5X004P/BK

Technical Details

Thickness of sheath and cable diameter

Inner sheath thickness (mm)	Bedding diameter (mm)	Outer sheath Thickness (mm)	Cable diameter (mm)
0.8 ± 0.1	8.2 ± 0.3	1.5± 0.2	12.5 ± 0.5

Electrical Performances

Characteristics	units	Specification
DC Resistance	Ω/100m	≤ 9.5
DC Resistance Unbalance	%	≤ 2.00
Capacitance Unbalance (Pair to Ground)	pF/km (800~1000Hz)	≤ 1600
Insulation Resistance	MΩ·m	≥ 5000
Dielectric Strength	DC kV/sec	2.5 / 2
Impedance (Characteristic mean)	Ω	100 ± 5%  (at 100MHz)
Return Loss	dB/100m	≥ 20 + 5 * log(freq)       , 4     ≤  f ＜   10MHz ≥ 25                                , 10   ≤  f ＜  20MHz ≥ 25 – 7 * log(freq/20)  , 20   ≤  f ≤  500MHz (min. 17.3dB)
Attenuation (Insertion Loss)	dB/100m	≤ 1.82*√(freq) + 0.0091*(freq) + 0.25/√(freq) , 4 ~ 500 MHz
NEXT Loss	dB/100m	≥ 75.3 – 15*log(freq) , 4 ~ 500MHz
Power sum NEXT Loss	dB/100m	≥ 72.3 – 15*log(freq) , 4 ~ 500MHz
ELFEXT Loss	dB/100m	≥ 68 – 20*log(freq)     , 4 ~ 500MHz
Power sum ELFEXT Loss	dB/100m	≥ 65 – 20*log(freq)     , 4 ~ 500MHz
Propagation Delay	ns/100m	≤ 534 + 36 / √ (Freq) , 4 ~ 500MHz
Propagation Delay Skew	ns/100m	≤ 45, 4~500MHz
