Cáp Mạng Ngoài Trời LS VINA CAT6 F/UTP 4Pair CMX Double Sheath ( FTP-G-C6G-E2VV-X 0.5X004P/BK )

Cáp Mạng Ngoài Trời LS VINA CAT6 F/UTP 4Pair CMX Double Sheath ( FTP-G-C6G-E2VV-X 0.5X004P/BK )

Outdoor Cable

Double Sheath FTP Cat.6

SCOPE
This Specification is based on the standards of UL444 , ANSI/TIA-568-C.2 and ISO/IEC
11801 and covers the requirements for foiled twisted pair (F/UTP) cables of 100Ω ,
enhanced category 6 (Cat.6).
– Applicable cable size & type ; 4 Pairs, Double Sheath PVC (CMX & UV resistance)

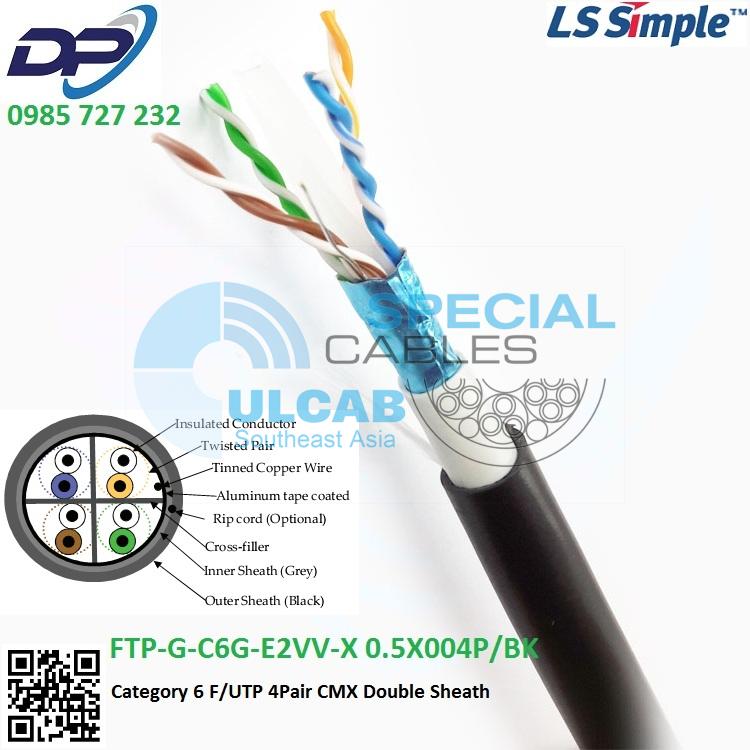

CABLE CONSTRUCTION

  • Conductor
    The conductors shall be solid , annealed and bare copperwith a diameter of AWG 23 to 24 and
    minimum acceptable diameter shall be 0.485mm.
  • Insulation
    Each conductor shall be insulated with solid high density polyethylene.
    The insulation shall be uniform and shall not have any defects.
    The diameter over the insulation shall be maximum 1.22mm.
  • Color code
    The color code of insulation shall be shown as Table 1

Table 1. Color code of insulation

Pair No A – wire B – wire
Base  Stripe  Base Stripe
1  White  Blue  Blue  –
2  White Orange Orange  –
3  White  Green Green  –
4  White Brown Brown  –
  • Core Assembly
    Two insulated conductors shall be twisted into a pair.
    Four twisted pairs shall be assembled into a cable corewith the cross-filler.
  • Screen
    The aluminum tape coated on one side with plastic film shall be applied over the cable core
    for screening on jacketing process.
    A tinned copper wire with the diameter of 0.4mm shall beapplied with cable core in jacket.
  • Inner sheath
    The flame retardant PVC compound colored grey shall be applied over the cable core.
    The sheath shall be uniform and shall not have any defects.
    The thickness of inner sheath shall be shown as table 2.

Table.2 Thickness of inner sheath

Inner sheath thickness (mm)
Nominal Minimum (point) minimum (average)
0.5 0.43 0.45
  • Outer sheath
    The black colored PVC sheath for outdoor purpose (UV) shall be applied over the inner sheath.
    The sheath shall be uniform and shall not have any defects.
    The thickness of outer sheath and cable diameter shall beshown as table 3.

Table.3 Thickness of inner sheath and cable diameter

Outer sheath thickness (mm) Cable Diameter (mm)
Nominal Minimum (point) minimum (average)  Nominal
1 0.85 0.9  9.2 ±0.3

ELECTRICAL CHARACTERISTICS

  • Electrical Performances
  • Characteristics  units  Cat.6
    DC Resistance Ω/100m  ≤ 9.38
    DC Resistance Unbalance  %  ≤ 5.00
    Mutual Capacitance nF/100m  ≤ 5.60
    Capacitance Unbalance (Pair to Ground) pF/100m  ≤ 330
    Insulation Resistance MΩ-100m  ≥ 500
    Dielectric Strength DC kV/sec  2.5 / 2
    Impedance (Characteristic mean) Ω  100 ± 15% (1 ≤ f ≤ 250MHz)
    Return Loss dB/100m ≥ 20 + 5 * log(freq) , 1 ≤ f < 10MHz ,

    ≥ 25 , 10 ≤ f < 20MHz ,

    ≥ 25 – 7 * log(freq/20) , 20 ≤ f ≤ 250MHz

    Attenuation (Insertion Loss) dB/100m ≤ 1.808*√(freq) + 0.017*(freq) + 0.20/√(freq) , 1 ~ 250 MHz
    NEXT Loss dB/100m  ≥ 44.3 – 15*log(freq/100) , 1 ~ 250MHz
    Power sum NEXT Loss dB/100m  ≥ 42.3 – 15*log(freq/100) , 1 ~ 250MHz
    ELFEXT Loss dB/100m  ≥ 27.8 – 20*log(freq/100) , 1 ~ 250MHz
    Power sum ELFEXT Loss dB/100m  ≥ 24.8 – 20*log(freq/100) , 1 ~ 250MHz
    Propagation Delay ns/100m  ≤ 534 + 36 / √(Freq) , 1 ~ 250MHz
    Propagation Delay Skew ns/100m  ≤ 45
Freq.
(MHz)
Attenuation
(dB/100m)
Max.
NEXT
(dB/100m)
Min.
PSNEXT
(dB/100m)
Min.
ELFEXT
(dB/100m)
Min.
PSELFEXT
(dB/100m)
Min.
RL
(dB/100m)
Min.
P.Delay
(ns/100m)
Max.
1 2 74.3 72.3 67.8 64.8 20 570
4 3.8 65.3 63.3 55.8 52.8 23 552
8 5.5 60.8 58.8 49.7 46.7 24.5 547
10 6 59.3 57.3 47.8 44.8 25 545
16 7.6 56.2 54.2 43.7 40.7 25 543
20 8.5 54.8 52.8 41.8 38.8 25 542
25 9.5 53.3 51.3 39.8 36.8 24.3 541
31.25 10.7 51.9 49.9 37.9 34.9 23.6 540
62.5 15.4 47.4 45.4 31.9 28.9 21.5 539
100 19.8 44.3 42.3 27.8 24.8 20.1 538
200 29 39.8 37.8 21.8 18.8 18 537
250 32.8 38.3 36.3 19.8 16.8 17.3 536
  • Measurements Precaution
    All electrical characteristics specified in clause 3.1 shall be tested on one sample length of
    100 meter or greater removed from the package.

PHYSICAL PROPERTIES

  • Insulation
    The un-aged tensile strength and elongation, measured in accordance with
    clause 7.3 of UL 444 shall be minimum 16.5MPa and 300%, respectively.
    The heat-aged tensile strength and elongation, measured in accordance with
    clause 7.3 of UL 444 shall be minimum 75% and 75% of un-aged, respectively.
    The shrinkage of insulation , measured in accordance withclause 7.4 of UL 444 ,
    shall not exceed 9.5mm.
    The bending test of insulation at low temperature, measured in accordance with clause
    7.5 of UL 444 , shall show no visible cracks.
  • Sheath
    The un-aged tensile strength and elongation, measured in accordance with
    clause 7.8 of UL 444 shall be minimum 17.24MPa and 100%, respectively.
    The heat-aged tensile strength and elongation, measured in accordance
    with clause 7.8 of UL 444 shall be minimum 85% and 50% of un-aged,respectively.
    The outer sheath shall comply the sunlight resistance  in accordance with
    clause 1200 of UL 1581 shall be minimum 85% at 300h and 80% at 720h
    in the tensile strength and elongation.
  • Cable Cold Bend
    All cables shall meet the requirements of clause 7.10 of UL444.
  • Flame Requirements
    A cable marked CMX shall comply with the VW-1 flame test specified in IEC 60332-1.
