Description
• Great convenience front door
• User instructions and basic wiring layout
for standard configuration are included
• 180 degree slim Modular Jack
• Designed and manufactured to meet demanding of international standards
• Individually terminated using slim-IDC(Insulation Displacement Connectors)
• T568A or T568B configuration
• 47 CFR part 68(RJ-45), ANSI/TIA-568-C.2(Category 5E) and ISO/IEC 11801 compliant
• High impact flame retardant plastic housing
• Easy installation & smart cabling arrangement by wiring cap
• RoHS compliant
Application
- Horizontal Distribution & Backbone Cabling
- 4/16 Mbps Token Ring (IEEE 802.5)
- 10/100/1000 BASE-T (IEEE 802.3)
- ATM 155.52 Mbps
- 100Mbps TP-PMD
- ISDN, ADSL
- Analog & digital voice(VoIP) and video
- Full broadband and baseband video
Part Numbers
Part Numbers | Description | Dimension (H x W, D) |
Compatible Items |

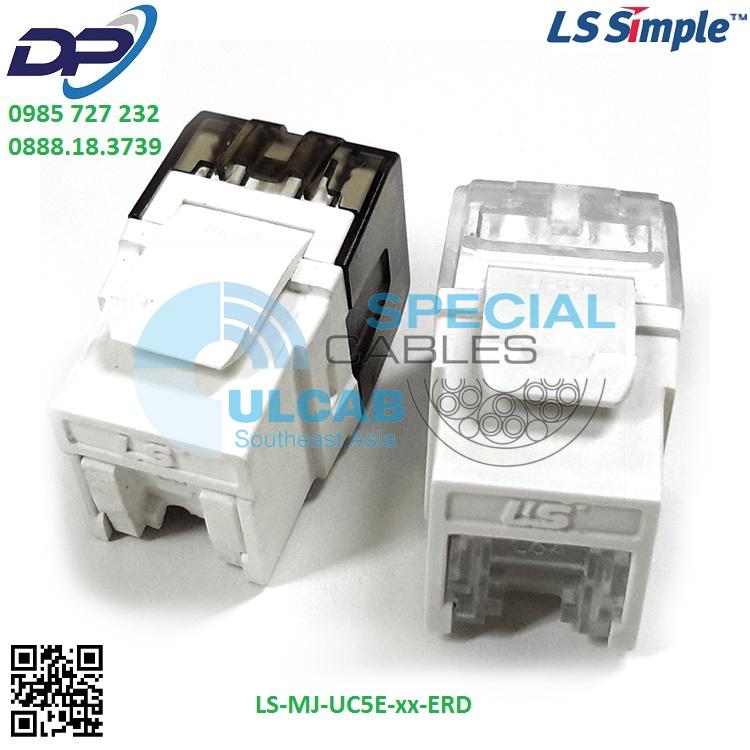

LS-MJ-UC5E-WH-ERD | Unshielded Category 5E Modular Jack White color With door |
19.3 * 16.8 * 30 | Panel : LS-PP series LS-APP series LS-PPP series Outlet : LS-FP-SA(SF)(US) series Tool : LS-EZT-TOOL-ER |
LS-MJ-UC5E-BK-ERD | Unshielded Category 5E Modular Jack black color With door |
19.3 * 16.8 * 30 | |
LS-MJ-UC5E-BL-ERD | Unshielded Category 5E Modular Jack blue color With door |
19.3 * 16.8 * 30 | |
LS-MJ-UC5E-RD-ERD | Unshielded Category 5E Modular Jack red color With door |
19.3 * 16.8 * 30 |
Technical Details
Item | Unit | Information |
FEATURE | ||
Approvals | – | |
Category | ANSI/TIA-568-C.2 Category 5E | |
Meet | 47 CFR part 68 | |
Wiring scheme | T568A/T568B | |
ELECTRICAL | ||
Current Rating | Amps | 1.5 |
Insulation | Mega‐ohm | > 500 |
Resistance | milli‐ohm | < 20 |
Contact Resistance | ohm | < 0.1 |
DC Resistance | VAC | < 150 |
Voltage | ||
MECHANICAL | ||
Insertion Life | Mating Cycles | 750 |
Pull Force | lbs(N) | 20(89) |
Temperature | ℃ | ‐40 ~ 68 |
Humidity | % (RH) | 10 ~ 90 |
IDC accept | AWG | 23~26 (Solid wire) |
PHYSICAL Cap | Polyamide (PA resin)+Glass Fiber, UL 94V-0 rated, Black | |
Housing | Acrylonitrile Butadiene Styrene (ABS resin) + Polycarbonate (PC resin) | |
Jack Contacts | UL94V-0 rated | |
Contact Bracket | Phosphor bronze flat wire, plated with 1.27um (50uin) thick hard gold on contact area over nickel underplate Polycarbonate (PC resin), UL94V-2 rated | |
PCB | FR4, UL94V-0 rated | |
IDC Terminals | Phosphor Bronze, plated with tin over nickel underplate | |
IDC Block | Polycarbonate (PC resin) + Glass Fiber, UL94V-2 rated |
