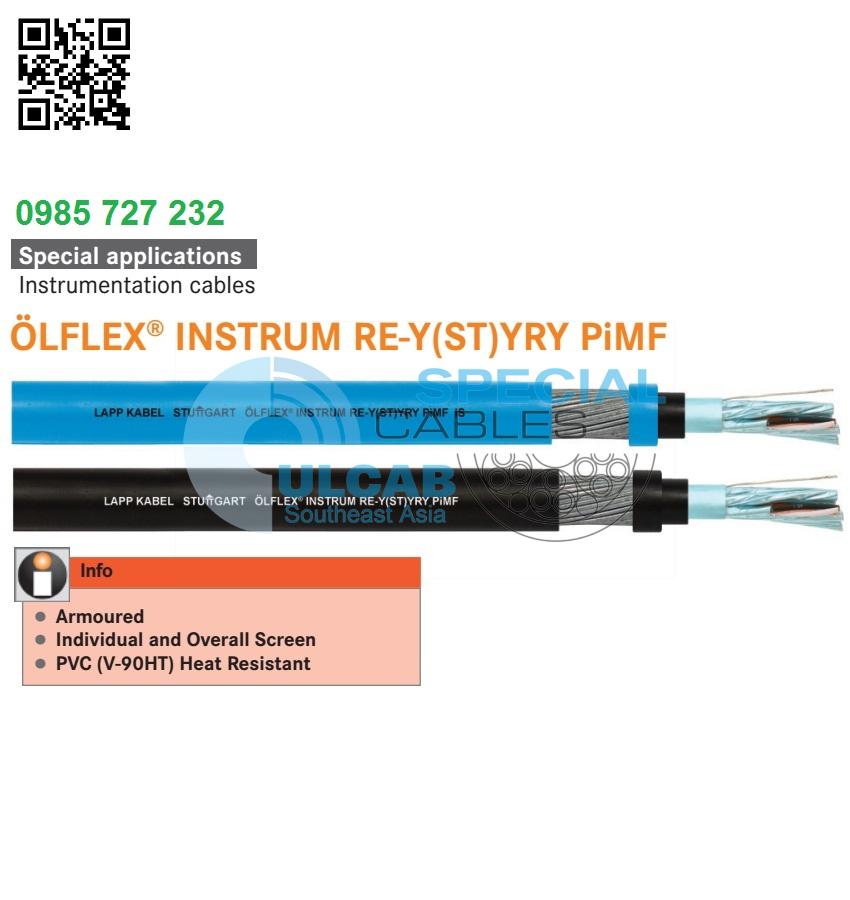

LAPP KABEL ÖLFLEX® INSTRUM RE-Y(ST)YRY PiMF

• product information ( PDF )

■ Application range

• For communication, data and voice transmis-sion signal in industrial process manufactur-ing plants

• Oil and Gas industry

• Petrochemical industry

• Generally used for outdoor installation for direct burial or installed in the duct

• The Blue outer sheath is suitable for use with Group 2 Intrinsically Safe (IS) systems in hazardous areas where the voltage range is
  <50 VAC / <75 VDC

■ Product features

• Cable construction in acc. to EN 50288-7

• Flame retardant in acc. to IEC 60332-3-24

■ Approvals (Norm references)

■ Design

• Stranded plain annealed copper wires

• PVC (V-90HT) core insulation

• Pairs are individually and collectively screened with aluminium polyester tape

• Tinned copper drain wire

• PVC inner sheath, black

• Galvanized steel wire armoured

• PVC (5V-90) outer sheath, black or blue

■ Technical data

Core identification code
Pair: black and white
Multipair: black and white with numbers
Based on
EN 50288-7
Specific insulation resistance
> 10 MOhm x km
Conductor stranding
acc. to IEC 60228 Cl. 2
Minimum bending radius
10 x cable diameter
Nominal voltage
500V
<50 VAC / <75 VDC for Intrinsically Safe (IS)
circuits application. See application range.
Test voltage
2000 V
Temperature range
-30°C to +105°C
