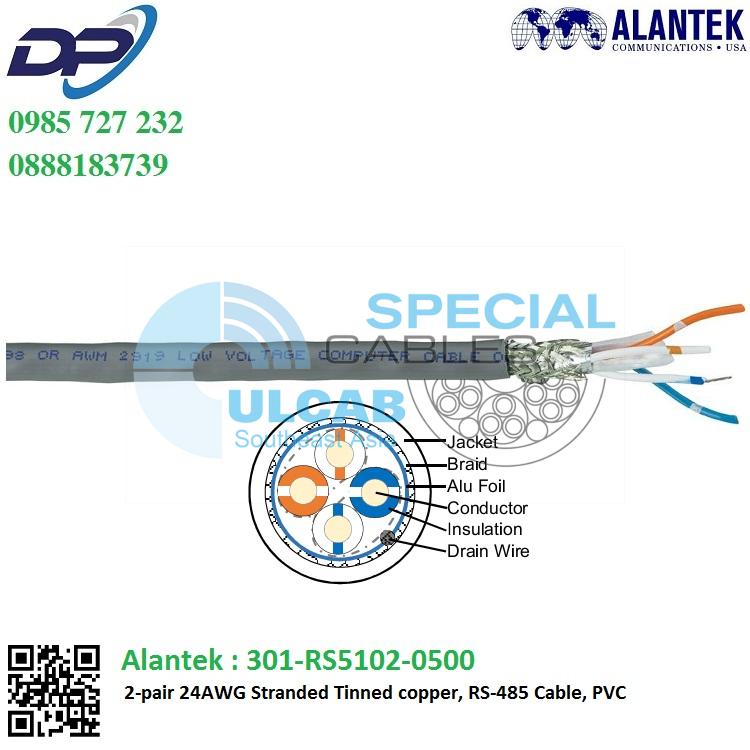

Cáp Điều Khiển Alantek ( 301-RS5102-0500 ) 2-pair 24AWG Stranded Tinned copper, RS-485 Cable, PVC
24AWG RS-485 Cable
Description
RS-485 Cable, a Multi-conductor, Low capacitance cable. Widely used communication interface in data
acquisition and control applications, downward compatible to RS-422 and RS-232 signal.
| Construction | 1-Pair | 2-Pair | 4-Pair | |
| Conductor | Material | Bare Copper | ||
| AWG | 24 (7 x 32) | |||
| Insulation | Material | PE | ||
| Thickness (mm) | 0.56 (average) | |||
| Diameter (mm
±0.15mm) |
1.72 (nominal) | |||
| Colour | White/Blue & Blue/White | 1.White/Blue & Blue/White 2.White/Orange & Orange/White | 1.White/Blue & Blue/White 2.White/Orange & Orange/White
3. White/Green & Green/White 4. White/Brown & Brown/White |
|
| 1st Shielding | Material | Aluminium-Mylar Foil | ||
| Drain Wire | Tinned Copper (AWG) | 7 x 32 | ||
| 2nd Shielding | Material | Tinned Copper | ||
| Coverage (%) | 90 | |||
| Jacket | Material | PVC | ||
| Thickness (mm) | 0.89 (average)
0.72 (min. point) |
|||
| Diameter (mm
±0.5mm) |
5.89 | 8.64 | 9.90 | |
| Colour | Black | |||
| Electrical Characteristics | |
| Impedance | 120 Ω |
| Max. Conductor DC Resistance @20°C (ohms/km) | 94.2 |
| Mechanical Characteristics | |
| Operating Temperature | -15°C to 80°C |
| Max Pulling Tension | 322 N |
| Min. Bend Radius | 59mm(1-pair) / 87mm(2-pair) / 100mm(4-pair) |
| Part Number | Description |
| 301-RS5101-0500 | 1-pair 24AWG Stranded Tinned copper, RS-485 Cable, PVC |
| 301-RS5102-0500 | 2-pair 24AWG Stranded Tinned copper, RS-485 Cable, PVC |
| 301-RS5104-0500 | 4-pair 24AWG Stranded Tinned copper, RS-485 Cable, PVC |
DATA SHEET
