Power and control cables
Building Installation
Wide-range use

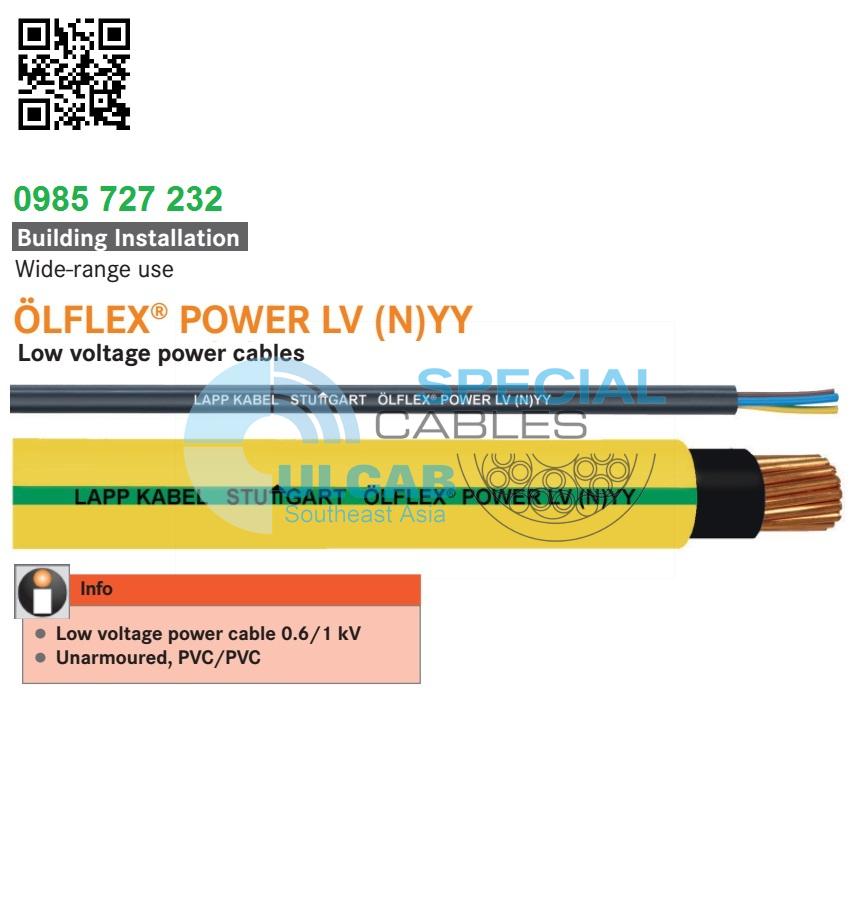

LAPP KABEL ÖLFLEX® POWER LV (N)YY
Low voltage power cables
Info
|
■ Application range
- For main power distribution and lighting cir-cuits in residential, industrial and commercial areas
- Power and control circuit
- Telecom power supply
■ Product features
- Cable construction in acc. to IEC 60502-1
- Flame-retardant acc. to IEC 60332-1-2
- UV-resistant outer sheath for outdoor ap-plication
■ Approvals (Norm references)
■ Design
- Stranded or solid plain annealed copper wire in circular or sectorial shape conductor
- PVC core insulation
- PVC outer sheath
- Sheath colour, gn/ye for single core and black for multicore
■ Technical data
Core identification code
acc. to BS 7671:2004
Based on
IEC 60502-1
Specific insulation resistance
> 10 GOhm x cm
Conductor stranding
acc. to IEC 60228 Cl.1 and Cl.2
Minimum bending radius
Fixed installation: 8 x cable diameter
Nominal voltage
U0/U: 600/1000 V
Test voltage
3500 V
Temperature range
Fixed installation: -20°C to +70°C
| Article number |
Number of cores and mm² per conductor |
Outer diameter (mm) | Copper index (kg/km) |
Weight (kg/km) |
| Solid Conductor (Class 1) | ||||
| 3800100 | 1 x 1.5 | 6 | 14 | 52 |
| 3800108 | 1 x 2.5 | 6,4 | 22,5 | 65 |
| 3800116 | 1 x 4 | 7,3 | 36 | 95 |
| 3800102 | 2 x 1.5 | 10 | 28,5 | 135 |
| 3800110 | 2 x 2.5 | 10,8 | 45,8 | 170 |
| 3800118 | 2 x 4 | 12,5 | 73,6 | 240 |
| 3800104 | 3 x 1.5 | 10,5 | 42,8 | 160 |
| 3800112 | 3 x 2.5 | 11,4 | 68,6 | 200 |
| 3800120 | 3 x 4 | 13,2 | 110,4 | 290 |
| 3800106 | 4 x 1.5 | 11,3 | 57 | 185 |
| 3800114 | 4 x 2.5 | 12,3 | 91,5 | 240 |
| 3800122 | 4 x 4 | 14,4 | 147,2 | 350 |
| 3804001 | 5 x 1.5 | 12,2 | 69,8 | 203 |
| 3804003 | 5 x 2.5 | 13,4 | 115 | 275 |
| 3804004 | 5 x 4 | 16 | 184 | 408 |
| Stranded Conductor (Class 2) | ||||
| 3800101 | 1 x 1.5 | 6,2 | 14 | 55 |
| 3800109 | 1 x 2.5 | 6,7 | 22,5 | 70 |
| 3800117 | 1 x 4 | 7,6 | 36 | 100 |
| 3800124 | 1 x 6 | 8,2 | 54 | 125 |
| 3800128 | 1 x 10 | 9,2 | 90 | 175 |
| 3800133 | 1 x 16 | 10,2 | 144 | 240 |
| 3800138 | 1 x 25 | 11,9 | 228 | 350 |
| 3800146 | 1 x 35 | 13,1 | 317,8 | 460 |
| 3800154 | 1 x 50 | 14,8 | 454 | 595 |
| 3800159 | 1 x 70 | 16,6 | 635,6 | 810 |
| 3800164 | 1 x 95 | 19,2 | 862,6 | 1110 |
| 3800103 | 2 x 1.5 | 10,4 | 28,5 | 145 |
| 3800111 | 2 x 2.5 | 11,5 | 45,8 | 180 |
| 3800119 | 2 x 4 | 13,5 | 73,6 | 255 |
| 3800125 | 2 x 6 | 15 | 110,4 | 285 |
| 3800129 | 2 x 10 | 17 | 184 | 395 |
| 3800134 | 2 x 16 | 19 | 294,4 | 590 |
| 3800139 | 2 x 25 | 22 | 465 | 900 |
| 3800148 | 2 x 35 (S) | 20 | 644 | 930 |
| 3800155 | 2 x 50 (S) | 23 | 920 | 1260 |
| 3800160 | 2 x 70 (S) | 26 | 1,288.0 | 1700 |
| 3800165 | 2 x 95 (S) | 30 | 1,748.0 | 2310 |
| 3800105 | 3 x 1.5 | 11,5 | 42,8 | 165 |
| 3800113 | 3 x 2.5 | 12 | 68,6 | 210 |
| 3800121 | 3 x 4 | 14 | 110,4 | 305 |
| 3800126 | 3 x 6 | 15,5 | 165,6 | 370 |
| 3800135 | 3 x 16 | 20 | 441,6 | 740 |
| 3800141 | 3 x 25 | 24 | 697,5 | 1160 |
| 3800150 | 3 x 35 (S) | 23 | 966 | 1330 |
| 3800156 | 3 x 50 (S) | 26 | 1,380.0 | 1750 |
| 3800161 | 3 x 70 (S) | 29 | 1,932.0 | 2435 |
| 3800166 | 3 x 95 (S) | 35 | 2,622.0 | 3360 |
| 3800107 | 4 x 1.5 | 12 | 57 | 200 |
| 3800115 | 4 x 2.5 | 13 | 91,5 | 255 |
| 3800123 | 4 x 4 | 15,5 | 147,2 | 375 |
| 3800127 | 4 x 6 | 17 | 220,8 | 455 |
| 3800132 | 4 x 10 | 19 | 368 | 665 |
| 3800137 | 4 x 16 | 22 | 588,8 | 930 |
| 3800144 | 4 x 25 | 25,6 | 930 | 1465 |
| 3800151 | 3 x 35 + 16 | 24,7 | 1,116.2 | 1570 |
| 3800153 | 4 x 35 (S) | 26 | 1,288.0 | 1740 |
| 3800157 | 3 x 50 + 25 | 28,3 | 1,544.8 | 2220 |
| 3800158 | 4 x 50 (S) | 29 | 1,840.0 | 2320 |
| 3800162 | 3 x 70 + 35 | 32 | 2,219.3 | 2930 |
| 3800163 | 4 x 70 (S) | 33 | 2,576.0 | 3215 |
| 3800167 | 3 x 95 + 50 | 37,5 | 3,066.7 | 3530 |
| 3800168 | 4 x 95 (S) | 39 | 3,496.0 | 4400 |
| 3804002 | 5 x 1.5 | 12,4 | 69,8 | 205 |
| 3800970 | 5 x 2.5 | 13,4 | 115 | 275 |
| 3800971 | 5 x 4 | 16 | 184 | 408 |
| 3804005 | 5 x 6 | 17,5 | 276 | 545 |
| 3804006 | 5 x 10 | 20 | 460 | 811 |
| 3804007 | 5 x 16 | 23 | 736 | 1195 |
| 3804008 | 5 x 25 | 27,6 | 1,162.5 | 1814 |
| 3800972 | 5 x 35 | 31 | 1,627.5 | 2450 |
| 3804009 | 7 x 1.5 | 13,2 | 97,7 | 260 |
| 3804010 | 12 x 1.5 | 17 | 167,4 | 408 |
| 3804011 | 14 x 1.5 | 17,7 | 195,3 | 463 |
| 3804012 | 16 x 1.5 | 18,7 | 223,2 | 518 |
| 3804013 | 19 x 1.5 | 19,6 | 265,1 | 597 |
| 3804014 | 24 x 1.5 | 22,8 | 334,8 | 742 |
| 3804015 | 27 x 1.5 | 23,3 | 376,7 | 817 |
| 3804016 | 37 x 1.5 | 26,1 | 516,2 | 1077 |
| 3804017 | 48 x 1.5 | 30 | 669,6 | 1382 |
| 3804018 | 7 x 2.5 | 14,5 | 161 | 356 |
| 3804019 | 12 x 2.5 | 18,7 | 276 | 571 |
| 3804020 | 14 x 2.5 | 19,6 | 322 | 650 |
| 3804021 | 16 x 2.5 | 20,7 | 368 | 731 |
| 3804022 | 19 x 2.5 | 21,8 | 437 | 848 |
| 3804023 | 24 x 2.5 | 25,4 | 552 | 1058 |
| 3804024 | 27 x 2.5 | 26 | 621 | 1170 |
| 3804025 | 37 x 2.5 | 29 | 851 | 1556 |
| 3804026 | 48 x 2.5 | 33,6 | 1,104.0 | 2017 |
