Power and control cables
Building Installation
Wide-range use

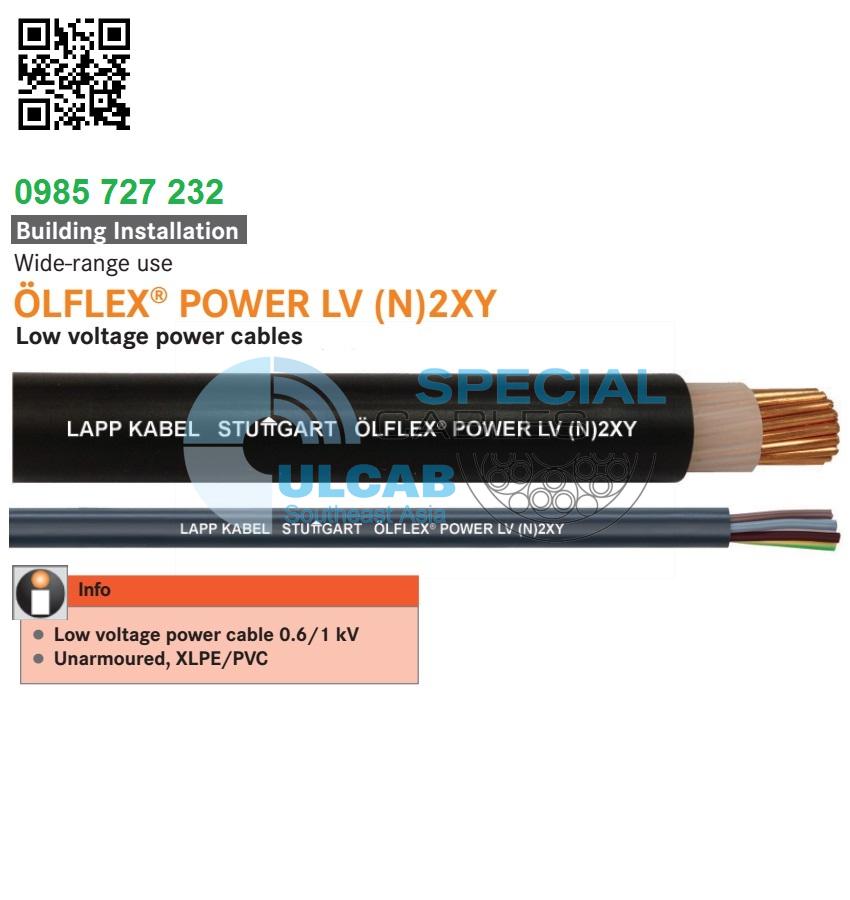

LAPP KABEL ÖLFLEX® POWER LV (N)2XY
Low voltage power cables
Info
|
■ Application range
- For main power distribution and lighting cir-cuits in residential, industrial and commercial areas
- Power and control circuit
- Telecom power supply
■ Product features
- Cable construction in acc. to IEC 60502-1
- Flame-retardant acc. to IEC 60332-1-2
- UV-resistant outer sheath for outdoor ap-plication
■ Approvals (Norm references)
■ Design
- Stranded plain annealed copper wires in circular or sectorial shape conductor
- XLPE core insulation
- PVC outer sheath, black
■ Technical data
Core identification code
acc. to BS 7671:2004
Based on
IEC 60502-1
Specific insulation resistance
> 1000 GOhm x cm
Conductor stranding
acc. to IEC 60228 Cl.2
Minimum bending radius
Fixed installation: 8 x cable diameter
Nominal voltage
U0/U: 600/1000 V
Test voltage
3500 V
Temperature range
Fixed installation: -40°C to +90°C
| Article number |
Number of cores and mm² per conductor |
Outer diameter (mm) |
Copper index (kg/km) |
Weight (kg/km) |
| Single core | ||||
| 3800250 | 1 x 16 | 9,4 | 147,2 | 205 |
| 3800254 | 1 x 25 | 11,1 | 230 | 309 |
| 3800262 | 1 x 35 | 12,4 | 322 | 412 |
| 3800270 | 1 x 50 | 14 | 460 | 540 |
| 3800275 | 1 x 70 | 16 | 644 | 760 |
| 3800280 | 1 x 95 | 18 | 874 | 1020 |
| 3800285 | 1 x 120 | 20 | 1,104.0 | 1270 |
| 3800290 | 1 x 150 | 22 | 1,380.0 | 1560 |
| 3800295 | 1 x 185 | 24,7 | 1,702.0 | 1930 |
| 3800300 | 1 x 240 | 27,7 | 2,208.0 | 2510 |
| 3800305 | 1 x 300 | 30,6 | 2,760.0 | 3120 |
| 3800310 | 1 x 400 | 34,2 | 3,680.0 | 3970 |
| 3800311 | 1 x 500 | 38 | 4,600.0 | 4980 |
| 3800312 | 1 x 630 | 42,9 | 5,796.0 | 6400 |
| 3800313 | 1 x 800 | 47,3 | 7,360.0 | 8190 |
| 3800314 | 1 x 1000 | 52,6 | 9,200.0 | 10265 |
| 2 core | ||||
| 3800235 | 2 x 1.5 | 10 | 28,2 | 130 |
| 3800238 | 2 x 2.5 | 10,8 | 46 | 165 |
| 3800241 | 2 x 4 | 11,9 | 73,6 | 210 |
| 3800244 | 2 x 6 | 13,1 | 110,4 | 270 |
| 3800247 | 2 x 10 | 14,9 | 184 | 390 |
| 3800251 | 2 x 16 | 17,2 | 294,4 | 450 |
| 3800255 | 2 x 25 | 20,5 | 460 | 820 |
| 3800264 | 2 x 35 (S) | 18,8 | 651 | 880 |
| 3800271 | 2 x 50 (S) | 21 | 930 | 1140 |
| 3800276 | 2 x 70 (S) | 24 | 1,302.0 | 1560 |
| 3800281 | 2 x 95 (S) | 26,9 | 1,767.0 | 2130 |
| 3800286 | 2 x 120 (S) | 29,9 | 2,232.0 | 2640 |
| 3800291 | 2 x 150 (S) | 33,4 | 2,790.0 | 3270 |
| 3800296 | 2 x 185 (S) | 37,1 | 3,441.0 | 4040 |
| 3800301 | 2 x 240 (S) | 45 | 4,464.0 | 5250 |
| 3800306 | 2 x 300 (S) | 50 | 5,580.0 | 6560 |
| 3 core | ||||
| 3800236 | 3 x 1.5 | 10,5 | 42,3 | 150 |
| 3800239 | 3 x 2.5 | 11,4 | 69 | 195 |
| 3800242 | 3 x 4 | 12,6 | 110,4 | 255 |
| 3800245 | 3 x 6 | 13,8 | 165,6 | 330 |
| 3800248 | 3 x 10 | 15,8 | 276 | 490 |
| 3800252 | 3 x 16 | 18,3 | 441,6 | 700 |
| 3800257 | 3 x 25 | 21,8 | 690 | 1000 |
| 3800266 | 3 x 35 (S) | 22 | 976,5 | 1180 |
| 3800272 | 3 x 50 (S) | 24 | 1,395.0 | 1600 |
| 3800277 | 3 x 70 (S) | 28 | 1,953.0 | 2240 |
| 3800282 | 3 x 95 (S) | 31 | 2,650.5 | 3050 |
| 3800287 | 3 x 120 (S) | 35,5 | 3,348.0 | 3800 |
| 3800292 | 3 x 150 (S) | 38,5 | 4,185.0 | 4640 |
| 3800297 | 3 x 185 (S) | 43 | 5,161.5 | 5870 |
| 3800302 | 3 x 240 (S) | 48 | 6,696.0 | 7670 |
| 3800307 | 3 x 300 (S) | 54 | 8,370.0 | 9460 |
| 4 core | ||||
| 3800237 | 4 x 1.5 | 11,5 | 56,4 | 175 |
| 3800240 | 4 x 2.5 | 12,5 | 92 | 225 |
| 3800243 | 4 x 4 | 13,8 | 147,2 | 305 |
| 3800246 | 4 x 6 | 15,2 | 220,8 | 405 |
| 3800249 | 4 x 10 | 17,5 | 368 | 600 |
| 3800253 | 4 x 16 | 20 | 588,8 | 870 |
| 3800260 | 4 x 25 | 24 | 920 | 1325 |
| 3800267 | 3 x 35 +16 | 24,8 | 1,113.2 | 1450 |
| 3800269 | 4 x 35 (S) | 26,5 | 1,288.0 | 1600 |
| 3800273 | 3 x 50 +25 | 28,5 | 1,610.0 | 2050 |
| 3800274 | 4 x 50 (S) | 30,1 | 1,840.0 | 2200 |
| 3800278 | 3 x 70 +35 | 33,2 | 2,254.0 | 2750 |
| 3800279 | 4 x 70 (S) | 35,4 | 2,576.0 | 3050 |
| 3800283 | 3 x 95 +50 | 37,8 | 3,082.0 | 3750 |
| 3800284 | 4 x 95 (S) | 40,2 | 3,496.0 | 4070 |
| 3800288 | 3 x 120 +70 | 42,6 | 3,956.0 | 4750 |
| 3800289 | 4 x 120 (S) | 44,9 | 4,416.0 | 5195 |
| 3800293 | 3 x 150 +70 | 46,3 | 4,784.0 | 5700 |
| 3800294 | 4 x 150 (S) | 49,8 | 5,520.0 | 6350 |
| 3800298 | 3 x 185 +95 | 52,1 | 5,980.0 | 7705 |
| 3800299 | 4 x 185 (S) | 55,8 | 6,808.0 | 7890 |
| 3800303 | 3 x 240 +120 | 58,6 | 7,728.0 | 9250 |
| 3800304 | 4 x 240 (S) | 62,9 | 8,832.0 | 10400 |
| 3800308 | 3 x 300 +150 | 65 | 9,660.0 | 11500 |
| 3800309 | 4 x 300 (S) | 69,7 | 11,040.0 | 12810 |
| 5 core | ||||
| 3804030 | 5 x 1.5 | 11,7 | 70,5 | 192 |
| 3803080 | 5 x 2.5 | 12,9 | 115 | 255 |
| 3803081 | 5 x 4 | 14,4 | 184 | 260 |
| 3803082 | 5 x 6 | 16 | 276 | 475 |
| 3804031 | 5 x 10 | 18,4 | 460 | 758 |
| 3804032 | 5 x 16 | 21,3 | 736 | 1135 |
| 3804033 | 5 x 25 | 26 | 1,150.0 | 1742 |
| 3804034 | 5 x 35 | 29,2 | 1,610.0 | 2355 |
| 6 core and above | ||||
| 3804035 | 7 x 1.5 | 12,7 | 98,7 | 250 |
| 3803084 | 7G 1.5 | 12,7 | 98,7 | 250 |
| 3804036 | 12 x 1.5 | 16,2 | 169,2 | 375 |
| 3803085 | 12G 1.5 | 16,2 | 169,2 | 375 |
| 3804037 | 14 x 1.5 | 16,9 | 197,4 | 420 |
| 3804038 | 16 x 1.5 | 17,7 | 225,6 | 468 |
| 3804039 | 19 x 1.5 | 18,6 | 267,9 | 540 |
| 3804040 | 24 x 1.5 | 21,8 | 338,4 | 710 |
| 3803086 | 24G 1.5 | 21,8 | 338,4 | 710 |
| 3804041 | 27 x 1.5 | 22,1 | 380,7 | 737 |
| 3804042 | 37 x 1.5 | 24,7 | 521,7 | 970 |
| 3804043 | 48 x 1.5 | 28,1 | 676,8 | 1230 |
| 3804044 | 7 x 2.5 | 14 | 161 | 320 |
| 3803088 | 7G 2.5 | 14 | 161 | 320 |
| 3804045 | 12 x 2.5 | 18 | 276 | 475 |
| 3803089 | 12G 2.5 | 18 | 276 | 475 |
| 3804046 | 14 x 2.5 | 18,7 | 322 | 598 |
| 3804047 | 16 x 2.5 | 19,7 | 368 | 672 |
| 3804048 | 19 x 2.5 | 20,8 | 437 | 780 |
| 3804049 | 24 x 2.5 | 24,2 | 552 | 972 |
| 3804050 | 27 x 2.5 | 24,7 | 621 | 1075 |
| 3804051 | 37 x 2.5 | 27,6 | 851 | 1427 |
| 3804052 | 48 x 2.5 | 31,8 | 1,104.0 | 1836 |
