CAT 6A 4-Pair 23AWG F/UTP Cable
Descriptiont

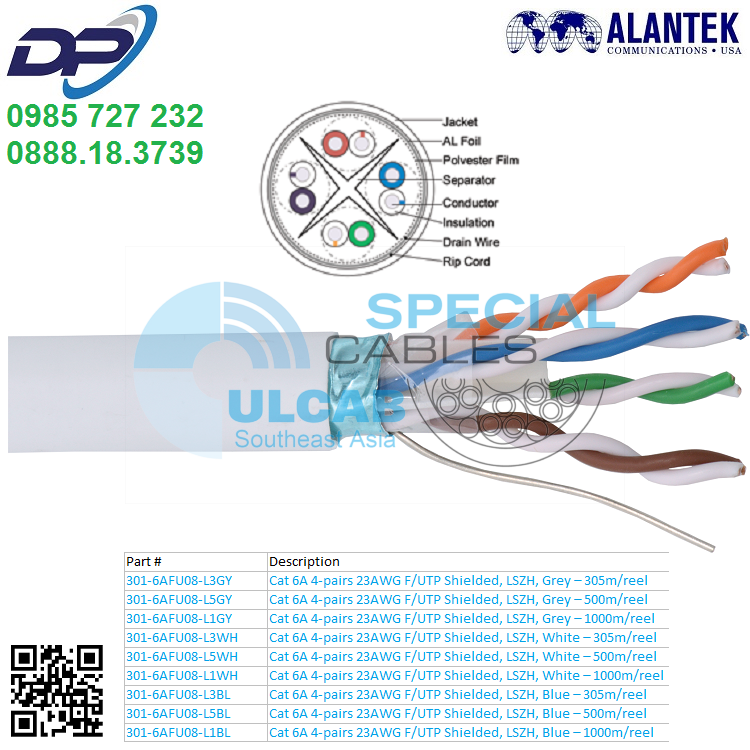

Alantek Cat6A Twisted Pair Cable is designed to support
high-bandwidth application up to 10Gigabit Ethernet. The cable is
composed of 23 AWG bare solid copper conductors insulated with
High Density Polyethylene (HDPE) insulation. The 4 twisted pairs are
separated by a flexible PE separator, an additional layer of Aluminium
foil covers the 4 pairs and is completed with an Outer Jacket.
Application
Horizontal wiring, suitable for application up to 10 Gigabit Ethernet.
POE up to 90W.
Standards
ANSI/TIA-568-C.2, ISO/IEC 11801, EN 50173
Physical Characteristics
Electrical Characteristics
| Conductor (x 4pair) | Conductor Insulation | Jacket | Drain Wire | |
| Material | Solid Bare Copper | HDP | LSZH | Tinned Copper |
| Dimension | 23AWG (0.57mm) | 1.140 ± 0.05 mm (Dia) | 7.5 ± 0.3 mm (Dia) | 1/0.4mm |
| FREQ. | ATTN. | NEXT | RL | ACRF | PS NEXT | PSACRF | DELAY |
| MHz | dB/100m | dB/100m | dB/100m | dB/100m | dB/100m | dB/100m | ns/100m |
| 1 | 2.1 | 74.3 | 20 | 67.8 | 72.3 | 64.8 | 570 |
| 4 | 3.8 | 65.3 | 23 | 55.8 | 63.3 | 52.8 | 552 |
| 8 | 5.3 | 60.8 | 24.5 | 49.7 | 58.8 | 46.7 | 547 |
| 10 | 5.9 | 59.3 | 25 | 47.8 | 57.3 | 44.8 | 545 |
| 16 | 7.5 | 56.2 | 25 | 43.7 | 54.2 | 40.7 | 543 |
| 20 | 8.4 | 54.8 | 25 | 41.8 | 52.8 | 38.8 | 542 |
| 25 | 9.4 | 53.3 | 24.3 | 39.8 | 51.3 | 36.8 | 541 |
| 31.25 | 10.5 | 51.9 | 23.6 | 37.9 | 49.9 | 34.9 | 540 |
| 62.5 | 15 | 47.4 | 21.5 | 31.9 | 45.4 | 28.9 | 539 |
| 100 | 19.1 | 44.3 | 20.1 | 27.8 | 42.3 | 24.8 | 538 |
| 200 | 27.6 | 39.8 | 18 | 21.8 | 37.8 | 18.8 | 537 |
| 250 | 31.1 | 38.3 | 17.3 | 19.8 | 36.3 | 16.8 | 536 |
| 300 | 34.3 | 37.1 | 16.8 | 18.3 | 35.1 | 15.3 | 536 |
| 400 | 40.1 | 35.3 | 15.9 | 15.8 | 33.3 | 12.8 | 536 |
| 500 | 45.3 | 33.8 | 15.2 | 13.8 | 31.8 | 10.8 | 536 |
| Part # | Description |
| 301-6AFU08-L3GY | Cat 6A 4-pairs 23AWG F/UTP Shielded, LSZH, Grey – 305m/reel |
| 301-6AFU08-xyzz | Substitute with below |
x : L=LSZH, 0=PVC, P=PE
y : 3= 305m/Box, 5=500m/reel, 1=1000m/reel
zz : colour (upon request)
