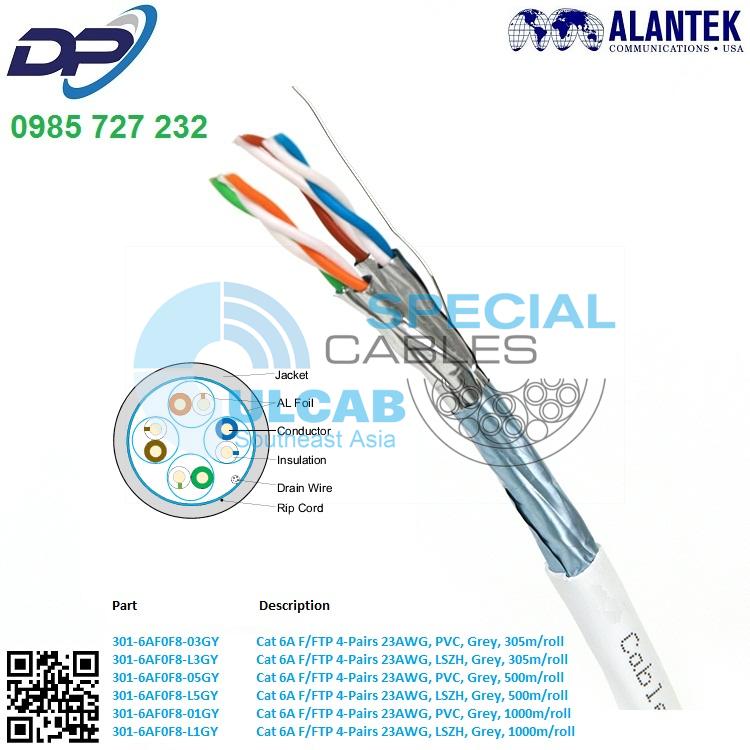

Cáp Mạng Alantek ( 301-6AF0F8-L3GY ) CAT 6A F/FTP 4-Pairs 23AWG, LSZH, Grey


Category 6A F/FTP Twisted Pair

Alantek Category 6A F/FTP cables shall meet or exceeds TIA/EIA-568-C and ISO/IEC 11801 Category 6A Standards

Specifications

Applications:  10BASE-T, 100BASE-TX, 1000BASE-T, 10GBASE-T
Standards:  ISO/IEC 11801, TIA 568-C.2
POE:  IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt
Conductor Solid Bare Copper
23AWG (0.56 ±0.01mm) x 4 pairs
Insulation Material:  FMPE
Insulation Diameter:  1.35 ± 0.05 mm
1st Shielding  Aluminum Foil:  Individual Pair Foil
2nd Shielding  Aluminum Foil:  Overall Foil
Drain Wire  Material: Tinned Copper
Conductor Diameter:  1/0.4
Rip Cord  Yes
Jacket Material: PVC / LSZH
Average Thickness:  0.50 ± 0.05 mm
Min.Point Thickness:  0.4 mm
Outer Diameter:  7.2 ± 0.3 mm
Electrical & Physical Properties  Characteristic Impedance (1 – 300 Mhz): 100 ±15 Ω
 Characteristic Impedance (300 – 500 Mhz):  100 ±22 Ω
Velocity of Propagation: 70
Delay Skew (From 1Mhz ) (ns/100m):  ≤ 45
Pair to Ground Capacitance Unbalance(pF.100m):  ≤ 16000
DC resistance (Ω/100m)  ≤ 19
DC Resistance Unbalance (%)  ≤ 2

Electrical Characteristics

FREQ. ATTN. NEXT RL ELFEXT PS NEXT PSELFEXT
MHz dB/100m dB/100m dB/100m dB/100m dB/100m dB/100m
1 2 74 20 68 72.3 65
4 3.7 65 23 56 63.3 53
10 5.9 59 25 48 57.3 45
16 7.5 56 25 43.9 54.2 40.9
20 8.4 55 25 42 52.8 39
31.25 10.6 52 23.6 38.1 49.9 35.1
62.5 15.4 47 21.5 32.1 45.4 29.1
100 19.8 44 20.1 28 42.3 25
200 29 40 18 22 37.8 19
250 32.8 38.3 17.3 20 36.3 17
300 36.4 37.1 16.8 18.5 34.1 15.5
500 48.9 33.8 15.2 14 30.8 11

Ordering Information

Part Nos Description
301-6AF0F8-03GY Cat 6A F/FTP 4-Pairs 23AWG, PVC, Grey, 305m/roll
301-6AF0F8-L3GY Cat 6A F/FTP 4-Pairs 23AWG, LSZH, Grey, 305m/roll
301-6AF0F8-05GY Cat 6A F/FTP 4-Pairs 23AWG, PVC, Grey, 500m/roll
301-6AF0F8-L5GY Cat 6A F/FTP 4-Pairs 23AWG, LSZH, Grey, 500m/roll
301-6AF0F8-01GY Cat 6A F/FTP 4-Pairs 23AWG, PVC, Grey, 1000m/roll
301-6AF0F8-L1GY Cat 6A F/FTP 4-Pairs 23AWG, LSZH, Grey, 1000m/roll

DATA SHEET
