Power and control cables
Various applications
PVC outer sheath and coloured cores

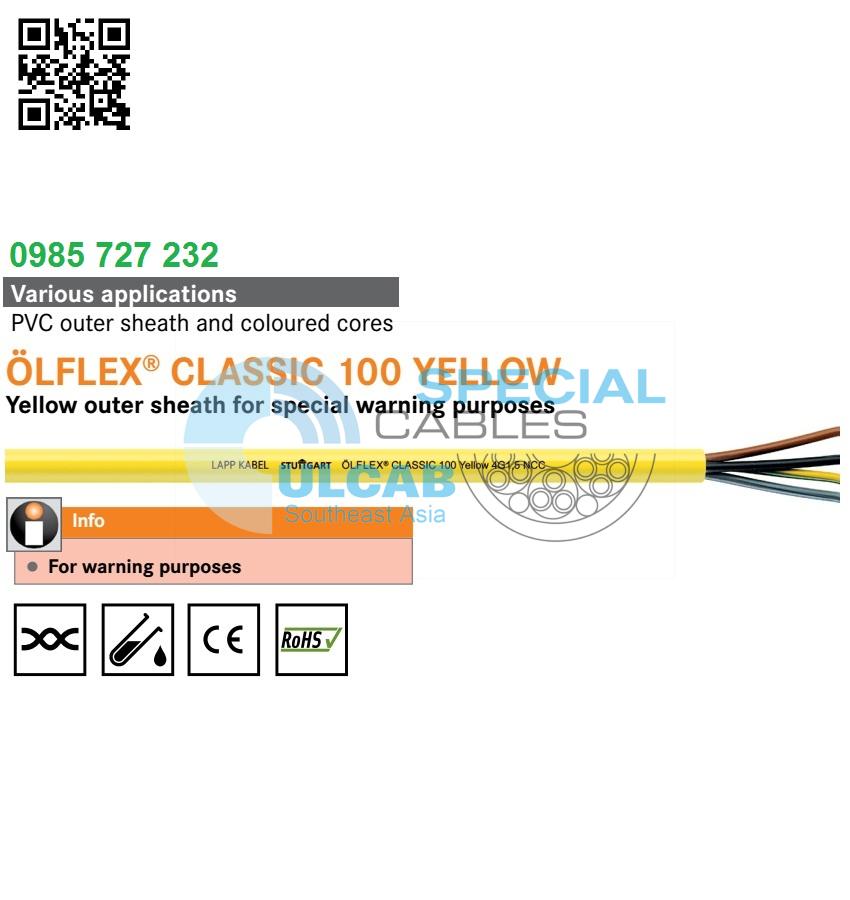

LAPP KABEL ÖLFLEX® CLASSIC 100 YELLOW
Yellow outer sheath for special warning purposes
ÖLFLEX® CLASSIC 100 YELLOW – flexible PVC cable, colour-coded. Connection and control cable with yellow sheath for warning purposes, 450/750V, also for YSLY or YY
For warning marking
Benefits
- High electrical safety due to 4 kV test voltage
Application range
- For electrical circuits that remain ‘live’ after the main switch has been disconnected
- Service sockets and illumination circuits
in electrical switchboards and cabinets - Suitable for torsional applications which are typical for the loop in wind turbine generators (WTG)
Product features
- Flame-retardant according to IEC 60332-1-2
- Good chemical resistance, see catalogue appendix T1
Norm references / approvals
- Based on IEC 60227-5 and EN 50525-2-51
Design
- Finely stranded bare copper wires
- PVC core insulation LAPP P8/1
- PVC sheath, yellow (RAL 1016)
■ Technical data
Classification
- ETIM 5.0 Class-ID: EC001578
- ETIM 5.0 Class-Description: Flexible cable
Core identification code
- VDE 0293-308, refer to Appendix T9
Conductor design
- Fine wire according to VDE 0295,
class 5 / IEC 60228 class 5
Torsion movement in WTG
- TW-0 & TW-1, refer to Appendix T0
Minimum bending radius
- Occasional flexing: 15 x outer diameter
- Fixed installation: 4 x outer diameter
Nominal voltage
- U0/U: 450/750 VAC
In protected and fixed installations:
U0/U: 600/1000 V
Test voltage
- 4000 V
Protective conductor
- G = with GN-YE protective conductor
- X = without protective conductor
Temperature range
- Occasional flexing: -5°C to +70°C
- Fixed installation: -40°C to +80°C
| Article number | Number of cores and mm² per conductor | Outer diameter (mm) | Copper index (kg/km) | Weight (kg/km) |
| ÖLFLEX® CLASSIC 100 YELLOW; U0/U: 450/750 V | ||||
| 0010400 | 3 G 1.5 | 8.1 | 43.0 | 95 |
| 00104023 | 4 G 1.5 | 8.9 | 58.0 | 117 |
| 00104033 | 5 G 1.5 | 10.0 | 72.0 | 144 |
| 0010401 | 3 G 2.5 | 9.6 | 72.0 | 152 |
| 00104043 | 4 G 2.5 | 10.7 | 96.0 | 205 |
| 00104053 | 5 G 2.5 | 11.8 | 120.0 | 225 |
