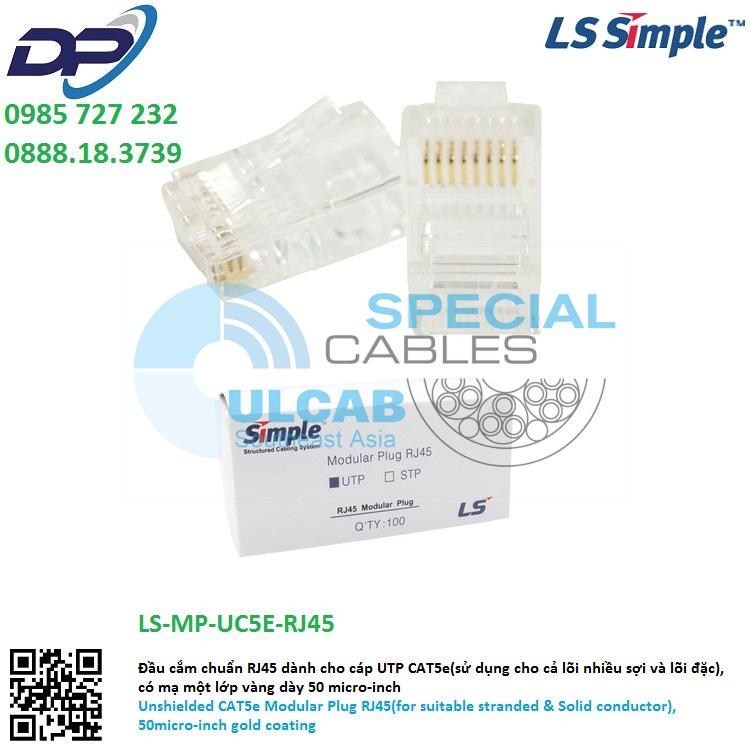

Hạt Mạng LS-VINA ( LS-MP-UC5E-RJ45 ) Đầu cắm chuẩn RJ45 dành cho cáp UTP CAT5e(sử dụng cho cả lõi nhiều sợi và lõi đặc),có mạ một lớp vàng dày 50 micro-inch
Description
LS Simple
Category 5e 8-pin Modular Plug complies with the specification of 47 CFR part 68.
Application
• Horizontal Distribution & Backbone Cabling
• 4/16 Mbps Token Ring (IEEE 802.5)
• 10/100/1000 BASE-T (IEEE 802.3)
• 155 Mbps
• 100Mbps TP-PMD
• ISDN, ADSL
• Analog & Digital voice(VoIP) and video
• Full broadband and baseband video
• RoHS compliant
Technical Details
| Item | Unit | Specification |
| FEATURE | ||
| Approvals | UL Certified | |
| Category | ANSI/TIA-568-C.2 Category 5e | |
| Wiring scheme | 47 CFR part 68 and IEC 603-7 | |
| ELECTRICAL | ||
| Current Rating | Amps | 1.5 |
| Insulation Resistance | Mega‐ohm | > 500 |
| Contact Resistance | milli‐ohm | < 20 |
| Dielectric Strength | VAC (RMS) | 1000 |
| Rated Voltage, Current | VAC max | < 30VAC at1.5A |
| MECHANICAL | ||
| Insertion Life | Mating cycles | 750 |
| Pull Force | lbs(N) | 20 |
| Temperature | ℃ | ‐20 ~ 68 |
| Humidity | % (RH) | 10 ~ 90 |
| Contact Accept | AWG | 24 (Stranded & Solid Wire) |
| PHYSICAL | ||
| Plug Housing | Polycarbonate (PC), UL 94V-0 or 2 rated | |
| Contact Blade | Phosphor bronze plated with 50uin thick gold over nickel undercoat |
Part Numbers
| Description | Part Number |
| 8P8C RJ45 Unshielded Category 5e Modular Plug for Round Cable, Stranded & Solid Wires Used |
LS-MP-UC5E-RJ45 |
Drawing
LS-MP-UC5E-RJ45
Đầu cắm chuẩn RJ45 dành cho cáp UTP CAT5e(sử
dụng cho cả lõi nhiều sợi và lõi đặc),có mạ một lớp
vàng dày 50 micro-inch
Unshielded CAT5e Modular Plug RJ45(for suitable
stranded & Solid conductor),50micro-inch gold
coating
DATA SHEET
